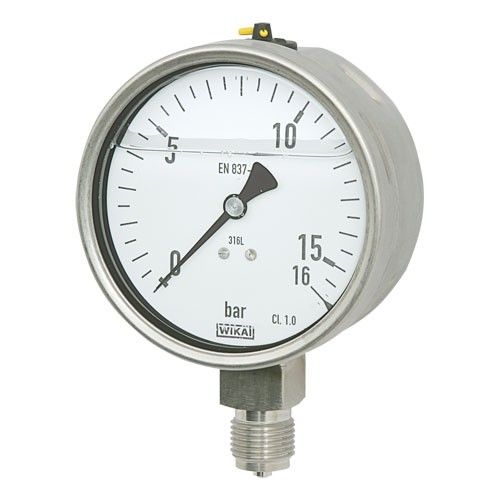

    Stainless steel glycerine manometers 100 mm

    Nerezový glycerinový manometr s průměrem ukazatele 100 mm pro měření tlaku média
    • Shockproof design, glycerine filling makes it easy to read the measured pressure
    • Materials used : body and measuring member in AISI 316L stainless steel, transparent instrument glass
    • Pressure gauges with bottom and rear connection, designed for pressure measurement of aggressive media and with high demands on the mechanical resistance of the instrument

    Stainless steel glycerine gauges MGNZ - 100 mm gauge and 1/2" side connection
    Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    bar    		 Connecting Thread
    "    		 Class
    accuracy
    %    		 Operational
    temperature
    °C    		 Nerezový glycerinový stranový manometr s průměrem ukazatele 100 mm pro měření tlaku média
    MGNS301 100 -1 to 0 lower 1/2" 1,0% -20/+60
    MGNS302 100 -1 to 0.6 lower 1/2" 1,0% -20/+60
    MGNS303 100 -1 to 1.5 lower 1/2" 1,0% -20/+60
    MGNS304 100 -1 to 3 lower 1/2" 1,0% -20/+60
    MGNS305 100 -1 to 5 lower 1/2" 1,0% -20/+60
    MGNS306 100 -1 to 9 lower 1/2" 1,0% -20/+60
    MGNS307 100 -1 to 15 lower 1/2" 1,0% -20/+60
    MGNS308 100 0 to 0.6 lower 1/2" 1,0% -20/+60
    MGNS309 100 0 to 1 lower 1/2" 1,0% -20/+60
    MGNS310 100 0 to 1.6 lower 1/2" 1,0% -20/+60
    MGNS311 100 0 to 2.5 lower 1/2" 1,0% -20/+60
    MGNS312 100 0 to 4 lower 1/2" 1,0% -20/+60
    MGNS313 100 0 to 6 lower 1/2" 1,0% -20/+60
    MGNS314 100 0 to 10 lower 1/2" 1,0% -20/+60
    MGNS315 100 0 to 16 lower 1/2" 1,0% -20/+60
    MGNS316 100 0 to 25 lower 1/2" 1,0% -20/+60
    MGNS317 100 0 to 40 lower 1/2" 1,0% -20/+60
    MGNS318 100 0 to 60 lower 1/2" 1,0% -20/+60
    MGNS319 100 0 to 100 lower 1/2" 1,0% -20/+60
    MGNS320 100 0 to 160 lower 1/2" 1,0% -20/+60
    MGNS321 100 0 to 250 lower 1/2" 1,0% -20/+60
    MGNS322 100 0 to 400 lower 1/2" 1,0% -20/+60
    MGNS323 100 0 to 600 lower 1/2" 1,0% -20/+60
    MGNS324 100 0 to 1000 lower 1/2" 1,0% -20/+60

    Stainless steel glycerine gauges MGNZ - 100 mm gauge and 1/2" rear connection
    Nerezový glycerinový zadní manometr s průměrem ukazatele 100 mm pro měření tlaku média Ordering
    number    		 Diameter
    pointers
    mm    		 Pressure range
    bar    		 Connecting Thread
    "    		 Class
    accuracy
    %    		 Operational
    temperature
    °C
    MGNZ411 100 0 to 2.5 Rear 1/2" 1,0% -20/+60
    MGNZ412 100 0 to 4 Rear 1/2" 1,0% -20/+60
    MGNZ413 100 0 to 6 Rear 1/2" 1,0% -20/+60
    MGNZ414 100 0 to 10 Rear 1/2" 1,0% -20/+60
    MGNZ415 100 0 to 16 Rear 1/2" 1,0% -20/+60
