Filter insert for dust filter HFR-094
Code: HFR-094V
Related products
Product detailed description

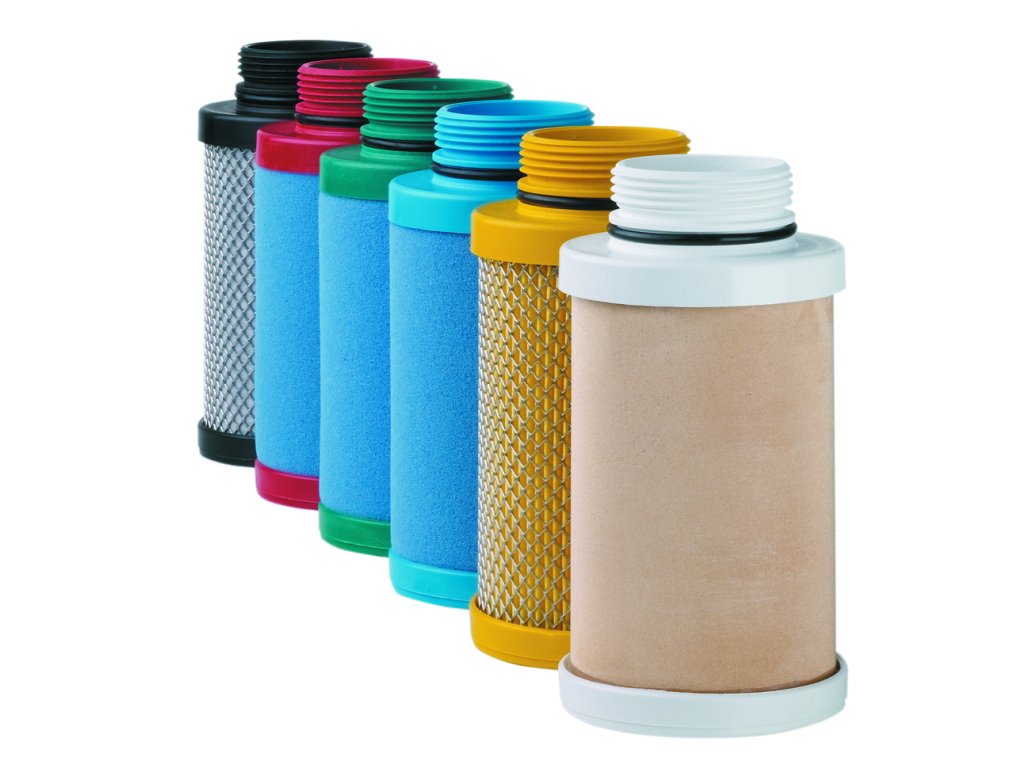

Dust filter cartridge for filter up to 50 bar HFR-094 - 1 µm pre-filter
- series of filters designed for effective removal of solid impurities, oil, water, hydrocarbons, odours and vapours from compressed air
- die-cast aluminium body, threaded connection with internal pipe threads
- operating temperature range +1.5 to +65 °C, maximum working pressure 50 bar
- filter cartridge replacement intervals - once a year or when the pressure gradient reaches 350 mbar; grade A every 6 months
- scope of delivery - filter body and filter cartridge, without condensate drain - order separately
- reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us
Correction factor - Working pressure |
||||||||||
| Working pressure bar | 3 | 5 | 7 | 10 | 13 | 16 | 20 | 30 | 40 | 50 |
| Correction factor | 0,50 | 0,75 | 1 | 1,38 | 1,75 | 2,13 | 2,63 | 3,88 | 5,13 | 6,38 |
Additional parameters
| Category: | HFR compressed air dust filters up to 50 bar |
|---|---|
| Version: | Dust filter |
| Pressure: | 50 bar |
| Filtration: | 1 um |
| Working temperature: | +1.5 / +65 °C |
| Flow: | 8,233 l/min |
| Quality class - solid impurities: | 3 |
