Filter insert for microfilter HFS-094
Free shipping
For purchases over 5,000 CZK
We guarantee
Extended warranty and service
Discount voucher
For every purchase
Return of goods within 30 days
Completely at our expense
Related products
–2 %
Microfilter HFS 2"
Removes mechanical dirt up to 0.01 um and oil according to ISO 8573-1 class...

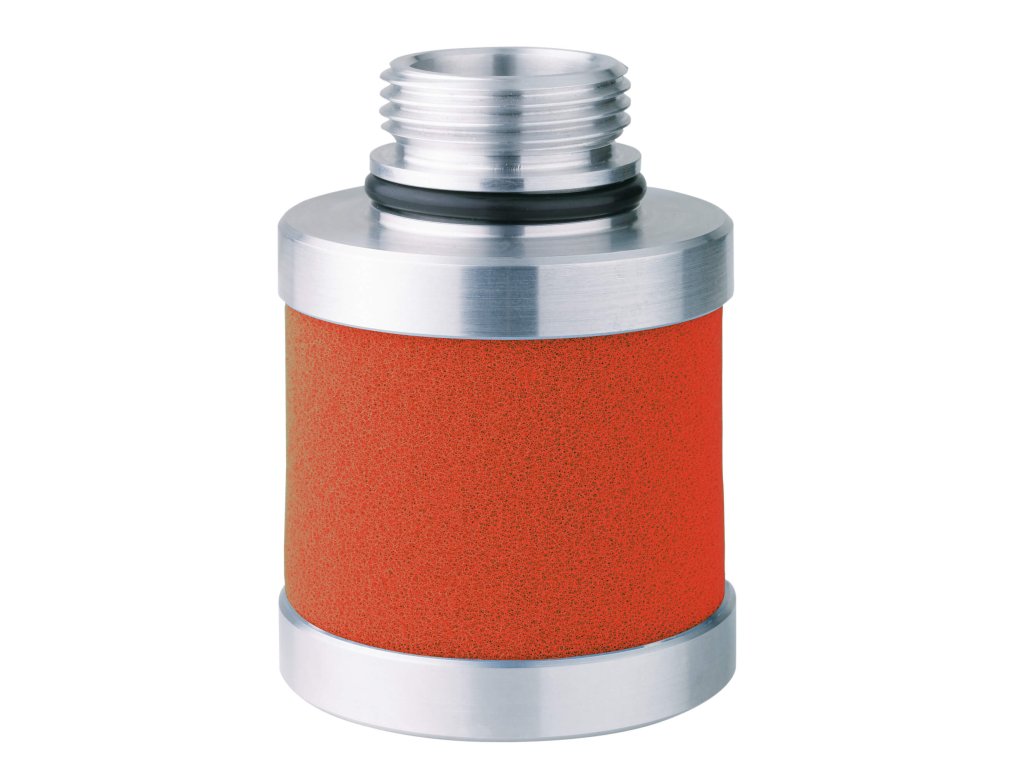

Replacement air filter cartridge from compressor up to 50 bar for microfilter HFS-094 - microfilter 0,01 µm
- series of filters designed for effective removal of solid impurities, oil, water, hydrocarbons, odours and vapours from compressed air
- die-cast aluminium body, threaded connection with internal pipe threads
- operating temperature range +1.5 to +65 °C, maximum working pressure 50 bar
- filter cartridge replacement intervals - once a year or when the pressure gradient reaches 350 mbar; grade A every 6 months
- scope of delivery - filter body and filter cartridge, without condensate drain - order separately
- reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us
Correction factor - Working pressure |
||||||||||
| Working pressure bar | 3 | 5 | 7 | 10 | 13 | 16 | 20 | 30 | 40 | 50 |
| Correction factor | 0,50 | 0,75 | 1 | 1,38 | 1,75 | 2,13 | 2,63 | 3,88 | 5,13 | 6,38 |
Technical parameters
| Category: | HFS compressed air microfilters up to 50 bar |
|---|---|
| Version: | Microfilter |
| Pressure: | 50 bar (50 atm, 725 PSI, 5 MPa) |
| Filtration: | 0.01 µm |
| Working temperature: | +1.5 / +65 °C |
| Flow: | 8 l/min (0,49 m³/h, 0,2906 CFM) |
| Residual oil: | <0,01 mg/m³ |
| Quality class - oils: | 1 |
| Quality class - solid impurities: | 1 |
Omega Air filtration - HF series
News Overload
We select articles from our advice room
How to properly select and use a compressor?
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Alfa and Omega from SloveniaIn the Slovenian capital, Ljubljana, there is a company specialized in compressed air treatment, production of industrial filters and filter inserts, separators or special membrane dryers and other products. Omega Air was founded in 1988 as a family business and soon secured a place in the industry. Over the years, Omega Air's workforce has also grown with increasing production and today the company employs more than 250 people. |
 |
 |
Omega products are used everywhereA wide range of applications is typical for Omega Air products. Its products are used in heavy industry as well as by private entities. Slovenia's footprint is thus noticeable in industrial sectors such as electrical, gastronomy, pharmaceuticals, moto and also in the chemical-industrial sector. However, the company's main product is special filters, which are exported all over the world. |
No greenhorn in the industryOmega Air also boasts several proprietary innovations and patents that originate in the development department. The company has also been awarded several times for its innovative solutions at the International Engineering Fair itself, which is traditionally held in Hannover, Germany. The Omega Air product range is brought to you by our air compressors company below. |
