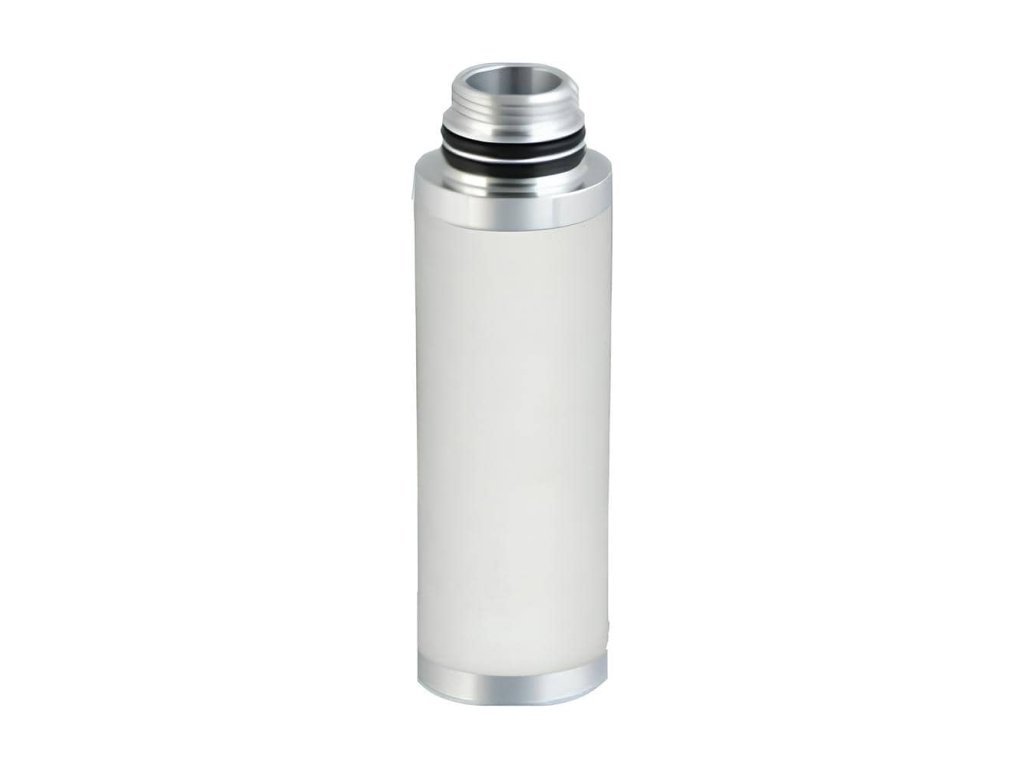

Filter insert for CHPM-018V filter

Filter insert for CHPM-018V filter
6 107 Kč –2 %
Original parts
6 107 Kč –2 % 5 985 Kč / pcs 4 946 Kč excl. VAT
up to 14 days
Set up a watchdog
We deliver to:
28.04.2025
Delivery offer
Kalkulačka splátek

Replacement filter cartridge CHPM-018V made of borosilicate microfibre is used for fine filtration to a purity of 0.1 um from compressed air. The maximum compressed air flow of the replacement cartridge is 4,583 l/min with a pressure up to 400 bar at an operating temperature of up to +65 °C.

Detailed information

Code: CHPM-018V
Brand: OMEGA AIR
Add to inquiry
Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Replacement filter cartridge CHPM-018V for fine filtration 0,1 um for CHP filters

  • series of filters designed for effective removal of solid impurities, oil, water, hydrocarbons, odours and vapours from compressed air
  • nickel-plated carbon steel body, threaded connection with internal pipe threads
  • operating temperature range +1.5 to +65 °C, maximum working pressure 400 bar
  • filter cartridge replacement intervals - once a year or when the pressure gradient reaches 350 mbar; grade A every 6 months
  • scope of delivery - filter body and filter cartridge, without condensate drain - order separately
  • reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us

Technical parameters

Category: Filter inserts and accessories for CHP filters
Version: Prefilter
Connecting: 1"
Filtration: 0.1 µm
Working temperature: +1.5 / +65°C
Flow: 5 l/min (0,27 m³/h, 0,1618 CFM)
Residual oil: <0,1 mg/m³
Quality class - oils: 2
Quality class - solid impurities: 2

Filtrace Omega Air - řada CHP

News Overload

We select articles from our advice room

How to properly select and use a compressor?

Read about how compressors work and what parameters to consider when choosing a compressor for your workshop or operation. Article content: How do compressors work? How to proceed when choosing a compressor? Frequency of compressor use Calcula...

Be the first who will post an article to this item!

5
0x
4
0x
3
0x
2
0x
1
0x
Be the first who will post an article to this item!
Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Security check

Alfa and Omega from Slovenia

In the Slovenian capital, Ljubljana, there is a company specialized in compressed air treatment, production of industrial filters and filter inserts, separators or special membrane dryers and other products. Omega Air was founded in 1988 as a family business and soon secured a place in the industry. Over the years, Omega Air's workforce has also grown with increasing production and today the company employs more than 250 people.

stažený soubor
hannover

Omega products are used everywhere

A wide range of applications is typical for Omega Air products. Its products are used in heavy industry as well as by private entities. Slovenia's footprint is thus noticeable in industrial sectors such as electrical, gastronomy, pharmaceuticals, moto and also in the chemical-industrial sector. However, the company's main product is special filters, which are exported all over the world.

No greenhorn in the industry

Omega Air also boasts several proprietary innovations and patents that originate in the development department. The company has also been awarded several times for its innovative solutions at the International Engineering Fair itself, which is traditionally held in Hannover, Germany.

The Omega Air product range is brought to you by our air compressors company below.

What Omega Air produces:

  • special industrial filters
  • filter inserts
  • electronic condensate drains
  • separators
  • dryers (absorption, membrane)
  • activated carbon columns
