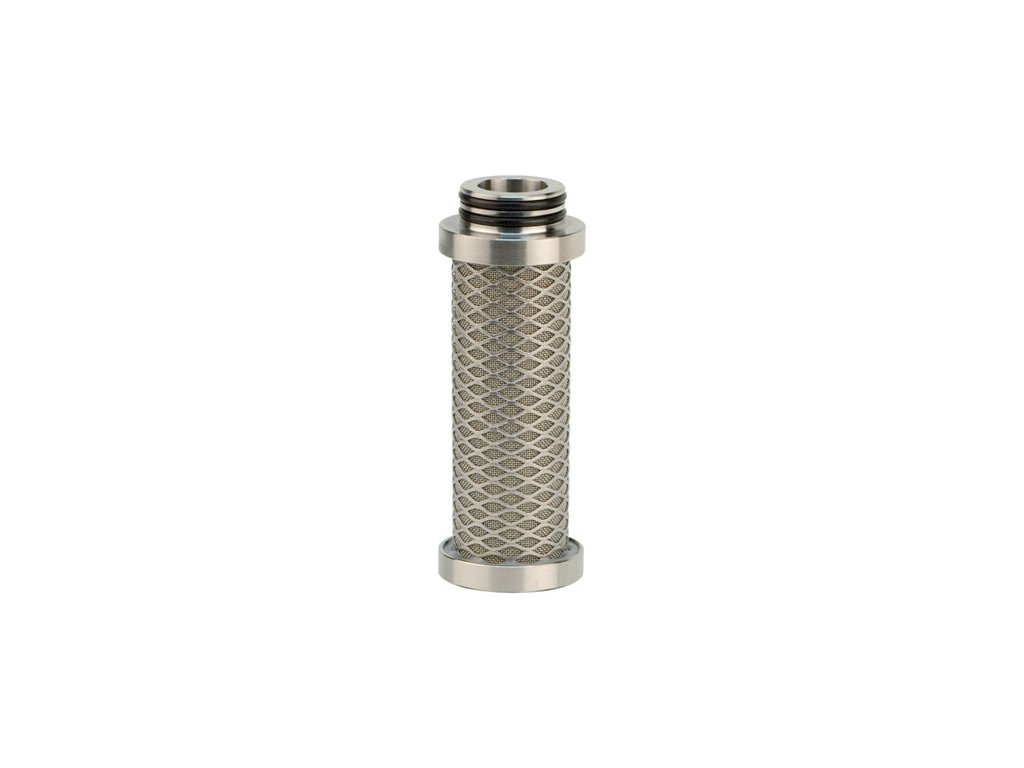

Filter insert PFN5 150V
Code: PFN5-150VProduct detailed description
Replacement cartridge for filter 14 bar, N5 - 5 µm screen barrier - PFN5-150
- A collection of filters designed to eliminate impurities from compressed air, ideal for applications with a high likelihood of corrosion risks.
- Construction in stainless steel 1.4301, connection via internal pipe threads or flanges.
- Connection for pressure measurement and release from the top/bottom of the filter via internal pipe thread.
- Operating temperature up to +150 °C, PF with a maximum working pressure of 14 bar.
- Delivery includes filter body and filter cartridge, without condensate drainage system - must be ordered separately.
- Reference flow conditions: temperature +20 °C, working pressure 7 bar; for different conditions a correction factor must be applied for calculation - please contact us.
Additional parameters
| Category: | Filtration, regulation and treatment of compressed air |
|---|---|
| Version: | Basic filter |
| Pressure: | 16 bar |
| Filtration: | 5 um |
| Filter insert: | PFN5-150V |
| Working temperature: | 0 / 150 °C |
| Flow: | 21,000 l/min |
