The SFS filter with DN32 flange connection is designed for highly efficient filtration of compressed air, process air and industrial gases. Filtration capacity less than 0.01 um including microorganisms. Maximum working pressure up to 16 bar, maximum flow up to 10,000 l/min. Made of stainless steel 1.4301.

Detailed information

Code: SFS-048
Brand: OMEGA AIR
Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Popis produktu

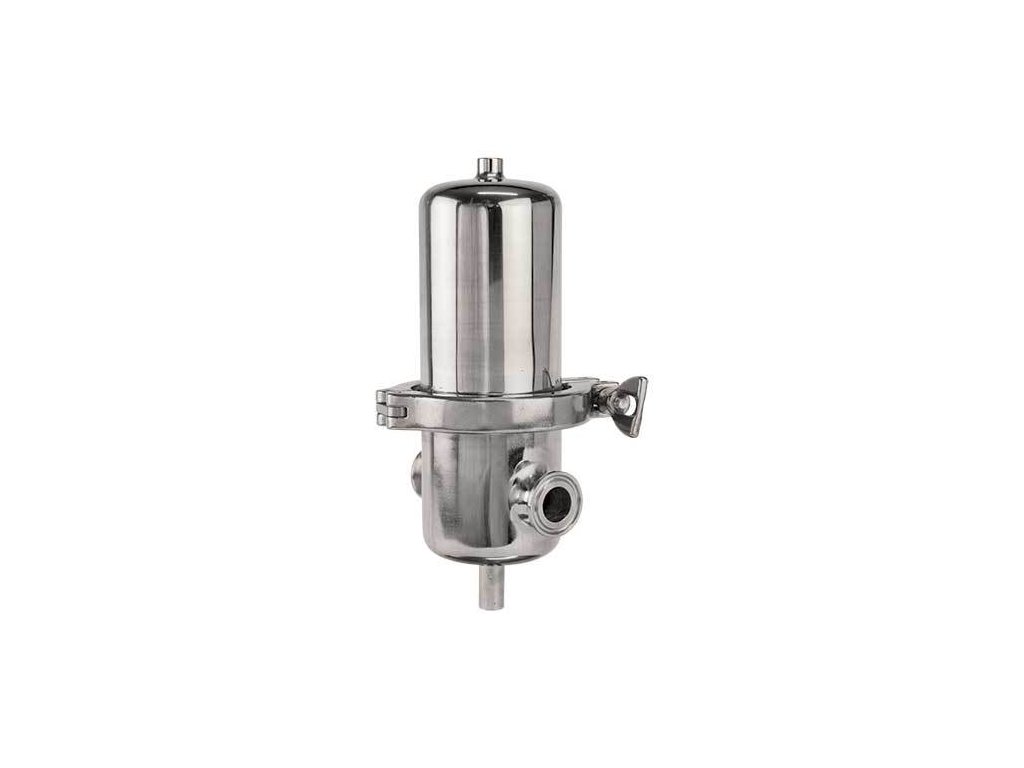

Complete sterile filter SFS-048

  • highly efficient filtration of compressed air, process air and industrial gases
  • for removal of submicron particles smaller than 0.01 µm including microorganisms (bacteria)
  • body made of stainless steel 1.4301 with polished surface, connection with couplings according to ISO 1127 or flanges from DN100
  • 100% DOP manufacturing integrity test, meets FDA food contact guidelines per CFR Article 21
  • working temperature -20 to +150 °C, maximum working pressure according to size 10/16 bar
  • filter body is designed for possible sterilization, scope of delivery - filter body and filter insert
  • reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us

Technical parameters

Category: Sterile SF filters for air up to 16 bar
Version: Sterile filter
Pressure: 16 bar
Connecting: flange DN32
Dimensions: 363 x 169 x 114 mm
Filtration: 0.01 µm
Filter insert: SFP-048V
Material: Stainless steel
Number of inserts: 1
Working temperature: -20 / +150 °C
Flow: 10,000 l/min

News Overload

We select articles from our advice room

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Alfa and Omega from Slovenia

Based in the Slovenian capital, Ljubljana, is a company specializing in compressed air treatment, production of industrial filters and filter cartridges, separators, or special membrane dryers, and other products. Omega Air was founded in 1988 as a family business and soon secured an essential place in its field. Over the years, with increasing production, the number of Omega Air employees also grew, and today the company employs more than 250 people.

stažený soubor
hannover

Omega's Products Find Use Everywhere

The products of Omega Air are characterized by a wide range of applications. Their products are used in heavy industry as well as by private entities. The Slovenian footprint is noticeable in industrial areas such as electronics, gastronomy, pharmacy, automotive, or even in the chemical industry sector. The company's main product is special filters, which are exported worldwide.

No Newcomer in the Field

Omega Air also boasts several innovations and patents of its own, which are developed in its R&D department. For its innovative solutions, the company has been awarded several times at the International Engineering Fair, traditionally held in Hannover, Germany.

The offered range of Omega Air products is brought to you by our company Kompresory vzduchotechnika below.

What Omega Air Produces:

  • special industrial filters
  • filter cartridges
  • electronic condensate drains
  • separators
  • dryers (adsorption, membrane)
  • active carbon columns
