    Activated carbon filter CHP1A G1"

    Code: CHP1A-018
    Not rated
    Brand: OMEGA AIR
    50 453 Kč –2 %
    Activated carbon filter CHP1A G1"
    50 453 Kč –2 % 49 444 Kč / pcs 40 863 Kč excl. VAT
    up to 14 days
    Delivery to:
    11.12.2024

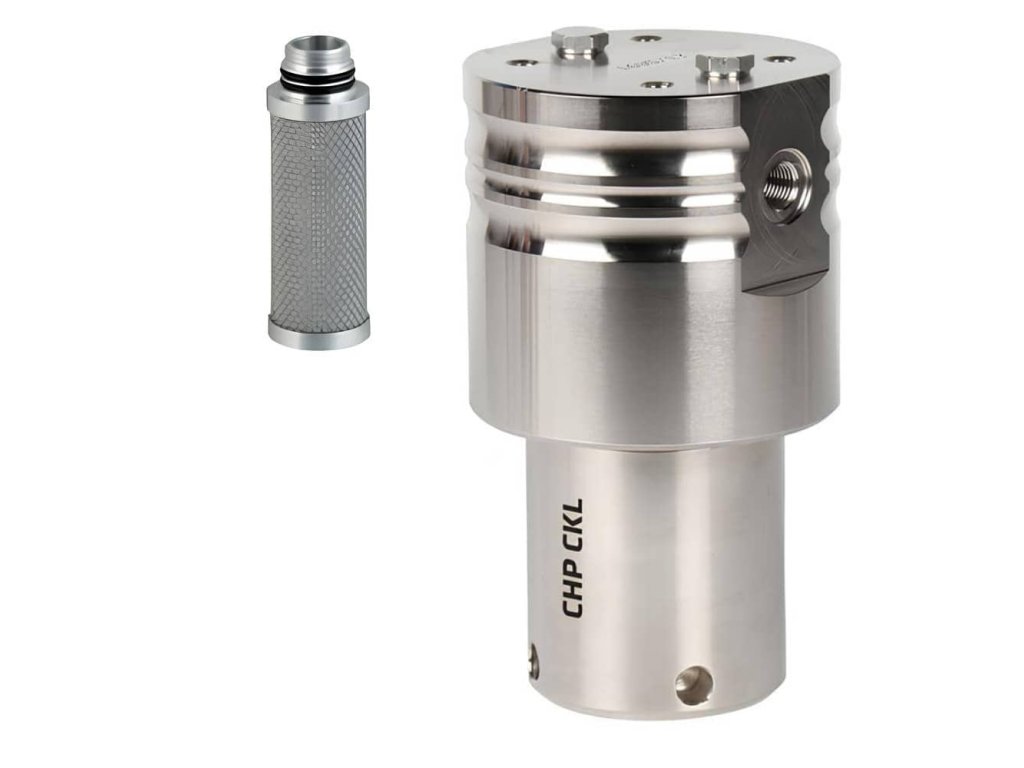

    CHP1A activated carbon filter with G1" connection thread designed for effective removal of solid impurities, oil, water and other impurities from compressed air up to 0.01 um. Maximum working pressure is 100 bar, maximum flow up to 4583 l/min. Made of nickel-plated carbon steel. Automatic condensate drain must be ordered separately.

    Product detailed description

    No product's description available

    Additional parameters

    Category: Air filters CHP1A up to 100 bar
    Version: Activated carbon
    Pressure: 100 bar
    Connecting: 1"
    Dimensions: 253 x 119 x 100 mm
    Filtration: Activated carbon
    Filter insert: CHPA-018V
    Material: Carbon steel
    Condensate discharge: Without release
    Working temperature: +1.5 / +65°C
    Flow: 4,583 l/min
    Residual oil: <0,05 mg/m³
    Quality class - oils: 1
    Quality class - solid impurities: 1

    Be the first who will post an article to this item!

    Do not fill out this field:

    Be the first who will post an article to this item!

    Do not fill out this field:

    Alfa and Omega from Slovenia

    Based in the Slovenian capital, Ljubljana, is a company specializing in compressed air treatment, production of industrial filters and filter cartridges, separators, or special membrane dryers, and other products. Omega Air was founded in 1988 as a family business and soon secured an essential place in its field. Over the years, with increasing production, the number of Omega Air employees also grew, and today the company employs more than 250 people.

    		 stažený soubor
    hannover

    Omega's Products Find Use Everywhere

    The products of Omega Air are characterized by a wide range of applications. Their products are used in heavy industry as well as by private entities. The Slovenian footprint is noticeable in industrial areas such as electronics, gastronomy, pharmacy, automotive, or even in the chemical industry sector. The company's main product is special filters, which are exported worldwide.

    No Newcomer in the Field

    Omega Air also boasts several innovations and patents of its own, which are developed in its R&D department. For its innovative solutions, the company has been awarded several times at the International Engineering Fair, traditionally held in Hannover, Germany.

    The offered range of Omega Air products is brought to you by our company Kompresory vzduchotechnika below.

    What Omega Air Produces:

    • special industrial filters
    • filter cartridges
    • electronic condensate drains
    • separators
    • dryers (adsorption, membrane)
    • active carbon columns
