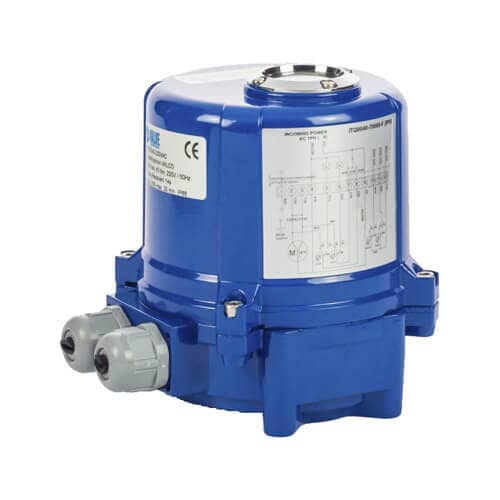

    VCQ electric actuators for ball valves and fittings

    Samostatné elektropohony pro armatury a kohouty
    • electric actuators are used to close industrial valves, especially ball valves and butterfly valves
    • connection to valves using ISO 5211 flanges in sizes F03 to F30 depending on the type of actuator
    • electrical connection - loose cable (VCQ002), 2x grommet PG13,5 (VCQ004), 2x grommet M20 (VCQ008), 2x grommet M25x1,5 (from VCQ0100)
    • standard design with 90° working angle, optical position indicator, manual operation
    • 4 electromechanical switches 5A/10A and 2 torque switches 10A (from VCQ016) included
    • optional variants at extra cost - working angle 180°, 270°, infinitely variable control for valve positioning, ATEX design, IP 68 protection, additional position and torque sensors

    Separate VCQ electric actuators for valves
    Order number Moment
    Nm    		 Rebuild Time (s) Temperature
    °C    		 Connection
    ISO    		 El. cover
    IP
    24 V DC 230 V AC 400V AC 24 V DC 230 V AC 400V AC
    VCQ002-24D VCQ002-230 - 25 11 11 - -10 / +65 ISO 5211 IP 67
    VCQ004-24D VCQ004-230 - 40 12 14 - -20 / +70 ISO 5211 IP 67
    VCQ008-24D VCQ008-230 VCQ008-400 80 12 16 16 -20 / +70 ISO 5211 IP 67
    VCQ010-24D VCQ010-230 VCQ010-400 100 18 21 21 -20 / +70 ISO 5211 IP 67
    VCQ016-24D VCQ016-230 VCQ016-400 160 33 26 26 -20 / +70 ISO 5211 IP 67
    VCQ024-24D VCQ024-230 VCQ024-400 240 33 26 26 -20 / +70 ISO 5211 IP 67
    VCQ035-24D VCQ035-230 VCQ035-400 350 37 31 31 -20 / +70 ISO 5211 IP 67
    VCQ050-24D VCQ050-230 VCQ050-400 500 34 31 31 -20 / +70 ISO 5211 IP 67
    VCQ080-24D VCQ080-230 VCQ080-400 800 43 39 39 -20 / +70 ISO 5211 IP 67
    VCQ110-24D VCQ110-230 VCQ110-400 1 100 43 39 39 -20 / +70 ISO 5211 IP 67
    - VCQ200-230 VCQ200-400 2 000 - 59 59 -20 / +70 ISO 5211 IP 67
    - VCQ300-230 VCQ300-400 3 000 - 59 59 -20 / +70 ISO 5211 IP 67
    - VCQ600-230 VCQ600-400 6 000 - 178 178 -20 / +70 ISO 5211 IP 67
    - VCQ900-230 VCQ900-400 9 000 - 178 178 -20 / +70 ISO 5211 IP 67

    Bestsellers

    vcq elektropohon vcq
    191 272 Kč –100 %
    Electric drive VCQ900-400
    up to 14 days
    Code: VCQ900-400
    Was: 191 272 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    vcq elektropohon vcq
    169 298 Kč –100 %
    Electric drive VCQ600-400
    up to 14 days
    Code: VCQ600-400
    Was: 169 298 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    vcq elektropohon vcq
    114 383 Kč –100 %
    Electric drive VCQ300-400
    up to 14 days
    Code: VCQ300-400
    Was: 114 383 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    vcq elektropohon vcq
    108 863 Kč –100 %
    Electric drive VCQ200-400
    up to 14 days
    Code: VCQ200-400
    Was: 108 863 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    vcq elektropohon vcq
    62 528 Kč –100 %
    Electric drive VCQ110-400
    up to 14 days
    Code: VCQ110-400
    Was: 62 528 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    vcq elektropohon vcq
    56 437 Kč –100 %
    Electric drive VCQ080-400
    up to 14 days
    Code: VCQ080-400
    Was: 56 437 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    vcq elektropohon vcq
    51 489 Kč –100 %
    Electric drive VCQ050-400
    up to 14 days
    Code: VCQ050-400
    Was: 51 489 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    vcq elektropohon vcq
    43 496 Kč –100 %
    Electric drive VCQ035-400
    up to 14 days
    Code: VCQ035-400
    Was: 43 496 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    vcq elektropohon vcq
    38 547 Kč –100 %
    Electric drive VCQ024-400
    up to 14 days
    Code: VCQ024-400
    Was: 38 547 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    vcq elektropohon vcq
    34 170 Kč –100 %
    Electric drive VCQ016-400
    up to 14 days
    Code: VCQ016-400
    Was: 34 170 Kč  (–100 %)
    1 Kč
    (1 Kč excl. VAT)
    Show more products
    36 items total
    vcq elektropohon vcq
    41 300 Kč –100 %
    Electric drive VCQ024-24D
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Electric actuator VCQ024-24D is used for closing industrial valves, especially ball valves and butterfly valves. Electrical design 24 VDC. Torque 240 Nm with connection. to...

    Code: VCQ024-24D
    vcq elektropohon vcq
    66 524 Kč –100 %
    Electric drive VCQ080-24D
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ080-24D electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical design 24 VDC. Torque 800 Nm with connection. to...

    Code: VCQ080-24D
    vcq40 elektropohon vcq
    19 325 Kč –99 %
    Electric drive VCQ004-24D
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Electric actuator VCQ004-24D is used for closing industrial valves, especially ball valves and butterfly valves. Electrical design 24 VDC. Torque 40 Nm with connection. to...

    Code: VCQ004-24D
    vcq80 elektropohon vcq
    21 506 Kč –100 %
    Electric drive VCQ008-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Electric actuator VCQ008-230 is used for closing industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 80 Nm with connection. to...

    Code: VCQ008-230
    vcq elektropohon vcq
    28 651 Kč –100 %
    Electric drive VCQ010-230VAC
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ010-230 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 100 Nm with connection. to...

    Code: VCQ010-230
    vcq elektropohon vcq
    31 696 Kč –100 %
    Electric drive VCQ010-24D
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ010-24D electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical design 24 VDC. Torque 100 Nm with connection. to...

    Code: VCQ010-24D
    vcq elektropohon vcq
    28 651 Kč –100 %
    Electric drive VCQ010-400VAC
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ010-400 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Eletric version 400 VAC 3f. Torque 100 Nm with connection. to...

    Code: VCQ010-400
    vcq elektropohon vcq
    34 170 Kč –100 %
    Electric drive VCQ016-400
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ016-400 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Eletric version 400 VAC 3f. Torque 160 Nm with connection. to...

    Code: VCQ016-400
    vcq elektropohon vcq
    38 547 Kč –100 %
    Electric drive VCQ024-400
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Electric actuator VCQ024-400 is used for closing industrial valves, especially ball valves and butterfly valves. Electrical version 400 VAC. Torque 240 Nm with connection. to...

    Code: VCQ024-400
    vcq elektropohon vcq
    43 496 Kč –100 %
    Electric drive VCQ035-400
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ035-400 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Eletric version 400 VAC 3f. Torque 350 Nm with connection. to...

    Code: VCQ035-400
    vcq elektropohon vcq
    51 489 Kč –100 %
    Electric drive VCQ050-400
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ050-400 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 400 VAC. Torque 500 Nm with connection. to...

    Code: VCQ050-400
    vcq elektropohon vcq
    56 437 Kč –100 %
    Electric drive VCQ080-400
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ080-400 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 400 VAC. Torque 800 Nm with connection. to...

    Code: VCQ080-400
    vcq elektropohon vcq
    62 528 Kč –100 %
    Electric drive VCQ110-400
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ110-400 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 400 VAC. Torque 1 100 Nm with connection. to...

    Code: VCQ110-400
    vcq elektropohon vcq
    108 863 Kč –100 %
    Electric drive VCQ200-400
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ200-400 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 400 VAC. Torque 2,000 Nm with connection. to...

    Code: VCQ200-400
    vcq elektropohon vcq
    114 383 Kč –100 %
    Electric drive VCQ300-400
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ300-400 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 400 VAC. Torque 3,000 Nm with connection. to...

    Code: VCQ300-400
    vcq elektropohon vcq
    169 298 Kč –100 %
    Electric drive VCQ600-400
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ600-400 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 400 VAC. Torque 6,000 Nm with connection. to...

    Code: VCQ600-400
    vcq elektropohon vcq
    191 272 Kč –100 %
    Electric drive VCQ900-400
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ900-400 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 400 VAC. Torque 9,000 Nm with connection. to...

    Code: VCQ900-400
    vcq elektropohon vcq
    57 199 Kč –100 %
    Electric drive VCQ035-24D
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Electric actuator VCQ035-24D is used for closing industrial valves, especially ball valves and butterfly valves. Electrical design 24 VDC. Torque 350 Nm with connection. to...

    Code: VCQ035-24D
    vcq elektropohon vcq
    57 770 Kč –100 %
    Electric drive VCQ050-24D
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ050-24D electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical design 24 VDC. Torque 500 Nm with connection. to...

    Code: VCQ050-24D
    vcq elektropohon vcq
    73 654 Kč –100 %
    Electric drive VCQ110-24D
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ110-24D electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical design 24 VDC. Torque 1 100 Nm with connection. to...

    Code: VCQ110-24D
    vcq elektropohon vcq
    169 298 Kč –100 %
    Electric drive VCQ600-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ600-230 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 6,000 Nm with connection. to...

    Code: VCQ600-230
    vcq20 elektropohon vcq
    8 096 Kč –99 %
    Electric drive VCQ002-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Electric actuator VCQ002-230 is used for closing industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Connection to fittings using ISO...

    Code: VCQ002-230
    vcq20 elektropohon vcq
    10 277 Kč –99 %
    Electric drive VCQ002-24D
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ002-24D electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical design 24 VDC. Connection to fittings using ISO 5211...

    Code: VCQ002-24D
    vcq40 elektropohon vcq
    15 797 Kč –99 %
    Electric drive VCQ004-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Electric actuator VCQ004-230 is used for closing industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 40 Nm with connection. to...

    Code: VCQ004-230
    vcq80 elektropohon vcq
    25 313 Kč –100 %
    Electric drive VCQ008-24D
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ008-24D electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical design 24 VDC. Torque 80 Nm with connection. to...

    Code: VCQ008-24D
    vcq elektropohon vcq
    37 405 Kč –100 %
    Electric drive VCQ016-24D
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ016-24D electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical design 24 VDC. Torque 160 Nm with connection. to...

    Code: VCQ016-24D
    vcq80 elektropohon vcq
    21 506 Kč –100 %
    Electric drive VCQ008-400
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Electric actuator VCQ008-230 is used for closing industrial valves, especially ball valves and butterfly valves. Eletric version 400 VAC 3f. Torque 80 Nm with connection. to...

    Code: VCQ008-400
    vcq elektropohon vcq
    34 170 Kč –100 %
    Electric drive VCQ016-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ016-230 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 160 Nm with connection. to...

    Code: VCQ016-230
    vcq elektropohon vcq
    38 547 Kč –100 %
    Electric drive VCQ024-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Electric actuator VCQ024-230 is used for closing industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 240 Nm with connection. to...

    Code: VCQ024-230
    vcq elektropohon vcq
    43 496 Kč –100 %
    Electric drive VCQ035-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Electric actuator VCQ035-230 is used for closing industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 350 Nm with connection. to...

    Code: VCQ035-230
    vcq elektropohon vcq
    48 912 Kč –100 %
    Electric drive VCQ050-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Electric actuator VCQ050-230 is used for closing industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 500 Nm with connection. to...

    Code: VCQ050-230
    vcq elektropohon vcq
    56 437 Kč –100 %
    Electric drive VCQ080-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    Electric actuator VCQ080-230 is used for closing industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 800 Nm with connection. to...

    Code: VCQ080-230
    vcq elektropohon vcq
    62 528 Kč –100 %
    Electric drive VCQ110-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ110-230 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 1 100 Nm with connection. to...

    Code: VCQ110-230
    vcq elektropohon vcq
    108 863 Kč –100 %
    Electric drive VCQ200-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ200-230 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 2,000 Nm with connection. to...

    Code: VCQ200-230
    vcq elektropohon vcq
    114 383 Kč –100 %
    Electric drive VCQ300-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ300-230 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 3,000 Nm with connection. to...

    Code: VCQ300-230
    vcq elektropohon vcq
    191 272 Kč –100 %
    Electric drive VCQ900-230
    up to 14 days
    1 Kč excl. VAT
    1 Kč / pcs

    The VCQ900-230 electric actuator is used to close industrial valves, especially ball valves and butterfly valves. Electrical version 230 VAC. Torque 9,000 Nm with connection. to...

    Code: VCQ900-230
