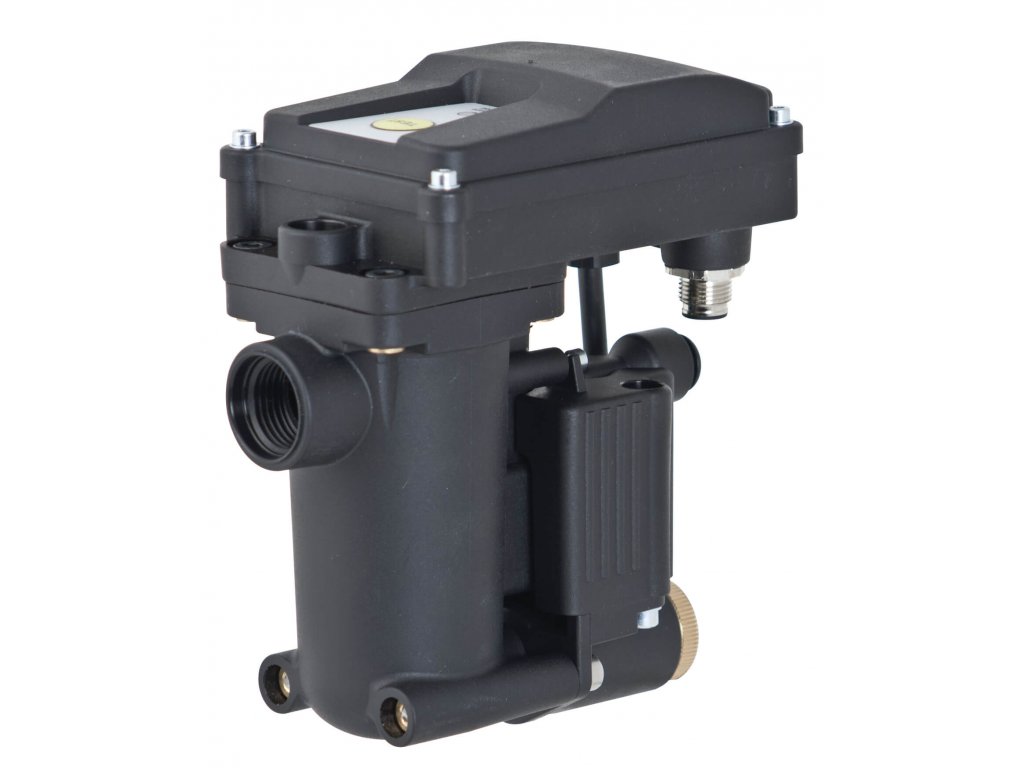

Electronic condensate drain EMD12A-24A
Code: EMD12A-24ARelated products
Product detailed description
Modern condensate discharge system from the EMD12A-24A compressor
- modern condensate drainage system with automatic operation control, fault detection and no air discharge
- pA polyamide body with compact dimensions, horizontal and vertical installation
- directly controlled self-cleaning valve - patented solution, integrated filter screen; condensate level sensing by capacitive sensor
- the EMD12C model is equipped with an alarm output for remote management, a control panel with LED signalling and a test button
- available with different voltage options, alarm output for remote monitoring and service connection for retrieving operating data from the device using the Service Network device
- condensate drainage outlet from all models via 8 mm socket coupling; operating temperature +1.5 °C to +65 °C, electrical protection IP54
- designed for efficient lossless condensate drainage from dryers, pressure vessels and filters
- important note: the forgiveness capacities are given for the climatic region of Central Europe
Additional parameters
| Category: | Electronic EMDs in modern design |
|---|---|
| Pressure: | 16 bar |
| Connecting: | 1/2" |
| Dimensions: | 133 x 76 x 147 mm |
| Weight: | 0,5 kg |
| Application: | Piston compressors, Screw compressors, Coolers,, Cyclone separators, Pressure vessels, Dryers, Air filters |
| Electric voltage: | 24 V AC |
| Condensate discharge: | 12 l/hour |
| Seals: | NBR |
| Equipment:: | Test button, LED signaling |
| Filter performance: | 74,400 l/min |
| Compressor performance: | 7,400 l/min |
| Dryer performance: | 14,900 l/min |
| Condensate drain: | Automatic |
| Power input: | 10 VA |
| Service connection: | No |
| Internal fuse: | 2 A |
| Alarm output: | Yes |
-
Produktový list (1.7 MB)
-
Katalogový list (587.9 kB)
-
Technický list (440.1 kB)
-
Manuál k použití (2.3 MB)
