Solenoid valve ISO1E52
Code: 032037Related products
Product detailed description
Solenoid valves ISO1E52
- Coils ASA2, connector A18209, base plates SBA1 are not included, order separately.
- Working pressure 0 - 10 bar, working temperature -10 to +60 °C
- Electrical values : power input 2.5 W or 2.5 VA, voltage tolerance 10%, EC load 100%
- Solenoid valves with dimensions according to ISO 5599/1, designed for mounting on ISO1 size plates
Additional parameters
| Category: | ISO electromagnetic valves |
|---|---|
| Pressure: | 10 bars |
| Connecting: | ISO 1 |
| Motor power: | According to the coil (3W or 4.2 VA) |
| Coil: | ASA2 - not included in the package |

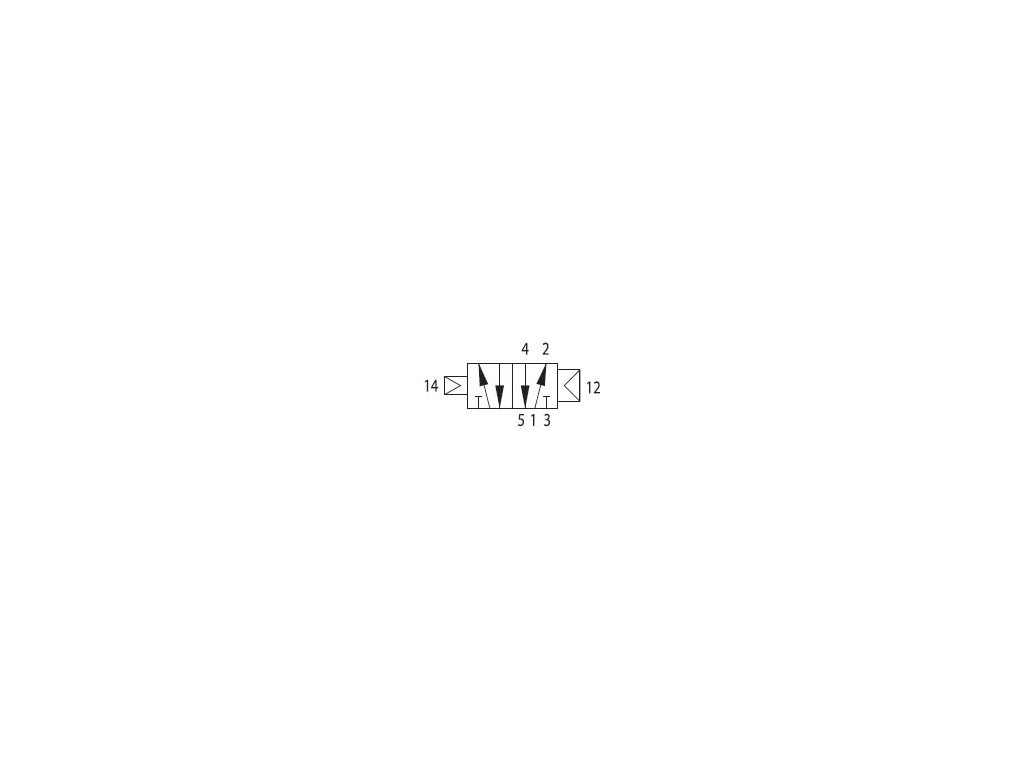

| Functions: | 5/2 coil / coil |
| Connector: | A18209 - not included in the package |
| Medium: | Air |
| Flow: | 800 l/min |
| Connecting plate: | SBA1 - not included in the package |
| Tělo: | Aluminium / plastic |
| Temperature: | -10 to +60 °C |
| Seals: | NBR |
| Voltage tolerance: | 10% |
| Load: | ED 100% |
| Controls: | Electromagnetic |
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Advanced Pneumatic Industries - Pneumatic Components for Automation Technology
Rich Experience Complements a Wide RangeOne of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions. |
 |
 |
Quality Certificate at a Good PriceFor the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses. |
The offered range from API is brought to you by our company Compressors air technology here.
