Solenoid valve A1E150
Code: 034011Related products
Product detailed description
Solenoid valve A1E150
- solenoid valves for separate or battery mounting
- threaded connection 1/8" with flow rate 650 l/min and clearance DN 6.5 mm
- body and lids made of anodized aluminium, NBR sealing
- working pressure 1-10 bar, working temperature -10/+60 °C
- coils ASA12 and connectors A12209 not included
- for battery mounting use A1B1 base plates
Additional parameters
| Category: | A1E solenoid valves in 1/8" design |
|---|---|
| Pressure: | 10 bars |
| Connecting: | 1/8" |
| Motor power: | According to the coil (3W or 4.2 VA) |
| Coil: | ASA12 - not included in the package |

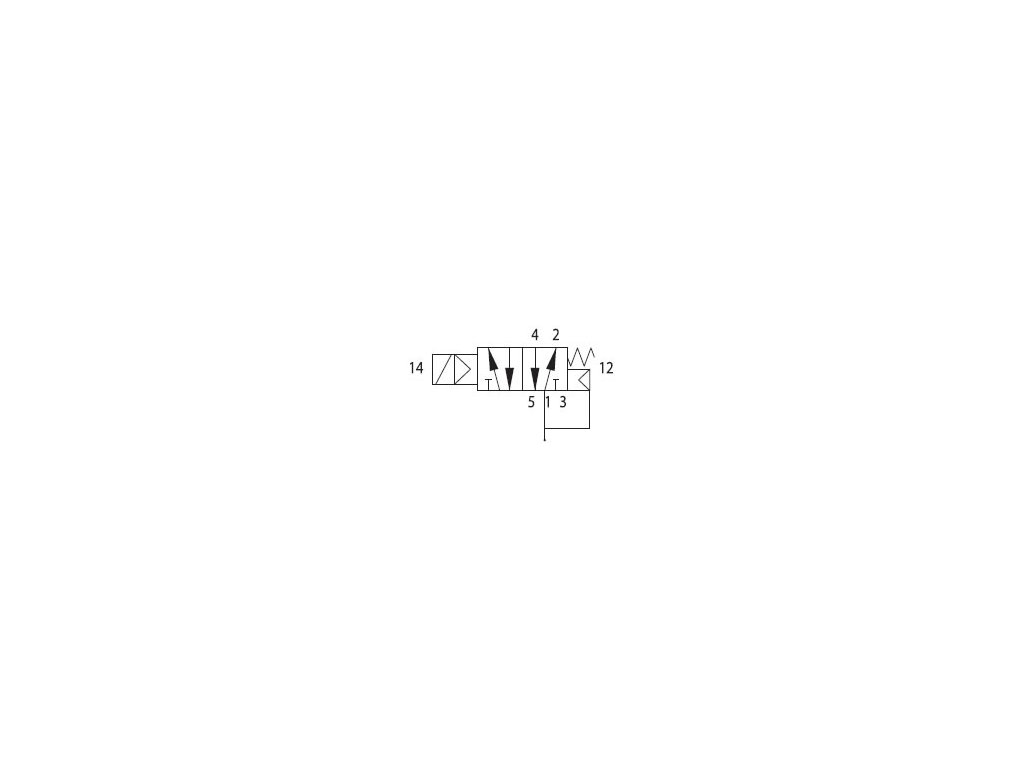

| Functions: | 5/2 coil / spring |
| Connector: | A12209 - not included in the package |
| Medium: | Air |
| Flow: | 650 l/min |
| Connecting plate: | A1B1 - not included in the package |
| Tělo: | Aluminium / plastic |
| Temperature: | -10 to +60 °C |
| Seals: | NBR |
| Voltage tolerance: | 10% |
| Load: | ED 100% |
| Controls: | Electromagnetic |
