Two-stage compressor A49B-4-270VT příkon 4 kW, sací výkon 595 l/min, tlak 11 bar, vzdušník 270 l, napětí 400/50 V/Hz
Code: A49B-4-270VTRelated products
Product detailed description
Professional reciprocating compressor ABAC A49B-4-270VT

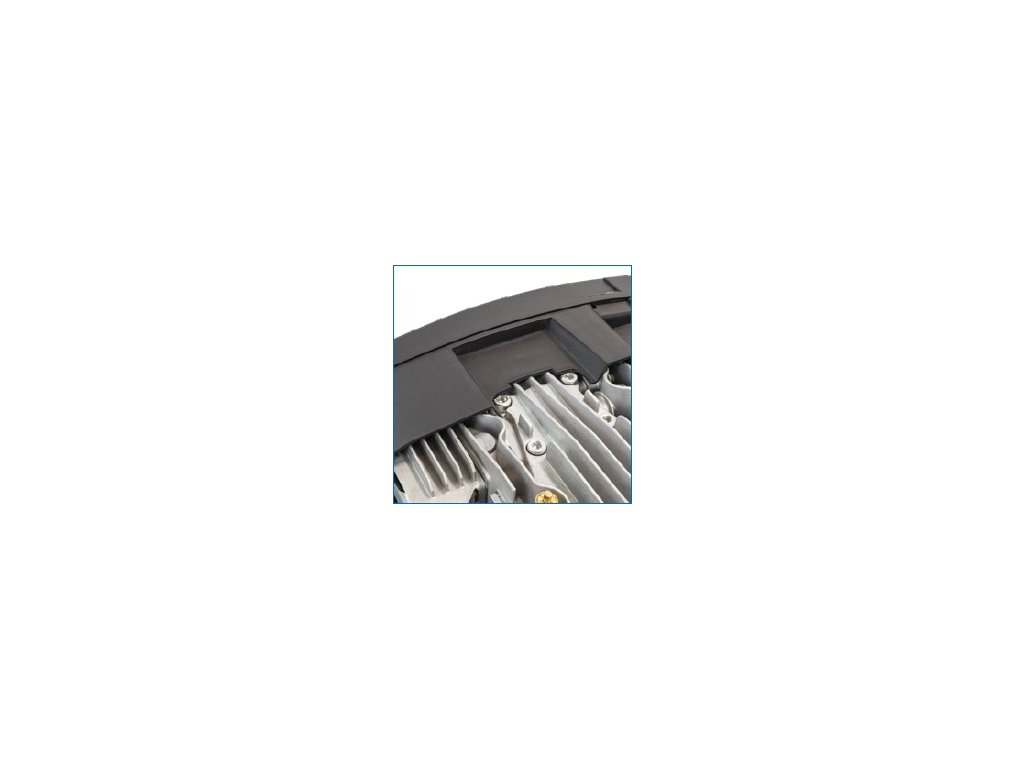

The Pro Line stationary workshop compressor with standing air chamber is designed especially for space-saving applications. Thanks to the unique belt gear housing with aerodynamically shaped grooves and aftercooler at the compressor outlet, the outlet air temperature is reduced by up to +35°C, ensuring an extreme increase in compressor life. The compressor has the following standard equipment:

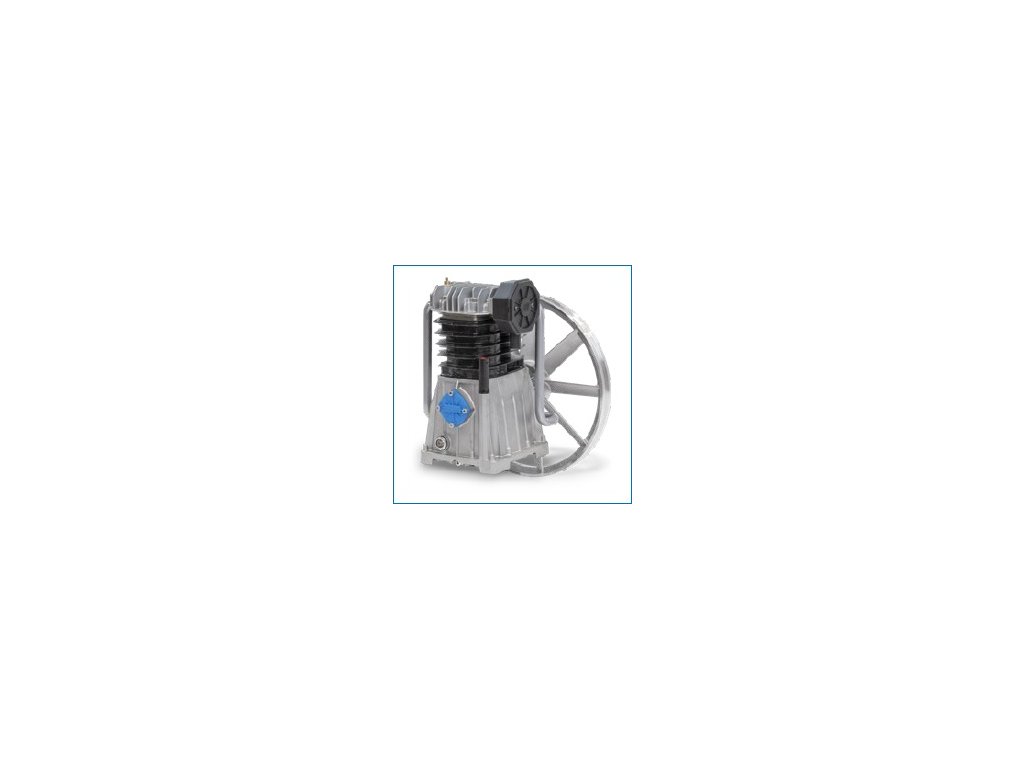

- two-stage design with high compression efficiency
- oil reservoir equipped with oil gauge for easy reading of oil level
- automatic operation control by means of a high-end Condor pressure switch
- electric motor equipped with temperature protection
- air outlet via ball valve
- pressure regulator included in delivery
- pressure gauge for reading the pressure in the air tank
- vertical 270-litre aerator with ball valve for convenient condensate drainage
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years with the possibility of extending it to 3 years and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | A49B two-stage compressors |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 11 Bar |
| Suction power: | 595 l/min |
| Displacement: | 458 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Standing |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 4.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 stage |
| Lubrication: | Oily |
| Noise: | 75 dB - Lwp(4m), 95 dB - Lwa |
| Dimensions: | 736 x 600 x 1712 mm |
| Weight: | 138 kg |
| Accessories: | Pressure regulator, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
Instalace kompresoru
Odpouštění kondenzátu
Servisní KIT kompresoru a výměna
Údržba sacího filtru
Uvedení do provozu
Výměna oleje u kompresoru
Výměna řemenu
