Two-stage compressor A49B-2,2-100CT příkon 2,2 kW, sací výkon 444 l/min, tlak 11 bar, vzdušník 100 l, napětí 400/50 V/Hz
Code: A49B-2-2-100CTRelated products
Product detailed description

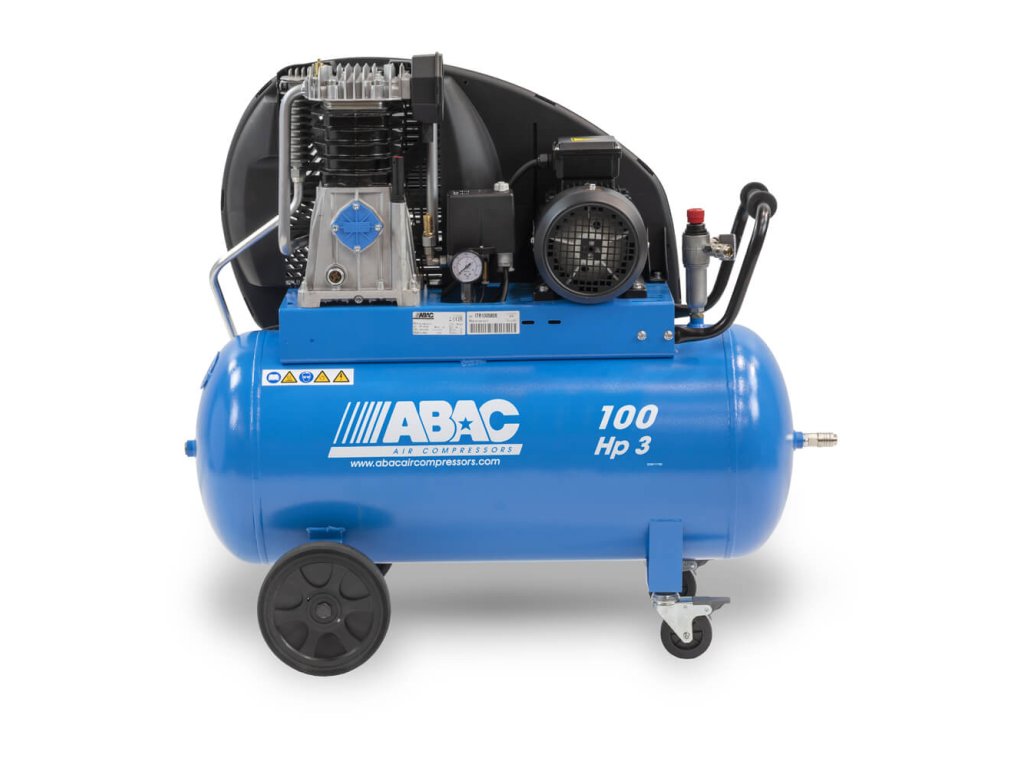

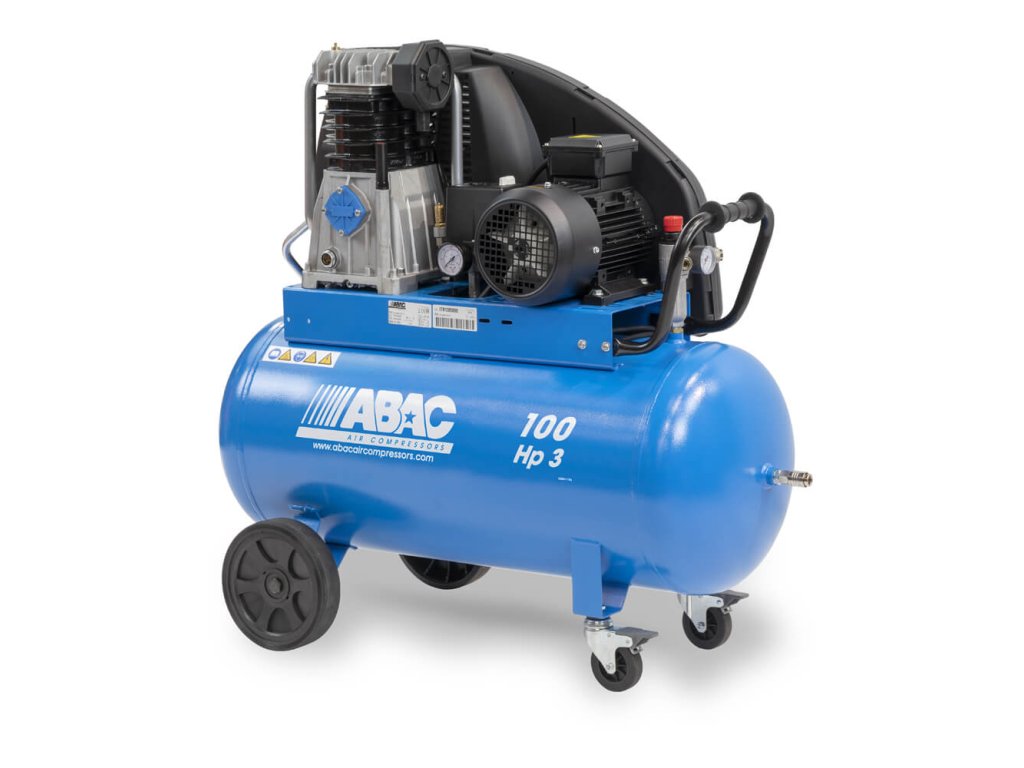

Professional reciprocating compressor ABAC A49B-2,2-100CT
Two-stage compressor from the Pro Line series in oil-lubricated design for many professional applications. Connection of the electric motor to the A49B compressor unit via V-belts with a suction capacity of 444 l/min and the following standard equipment:
- two-stage design with high compression efficiency
- unique belt gear cover with aerodynamically shaped grooves and aftercooler at the compressor outlet reduce the outlet air temperature by up to +35°C and ensure extreme increase in compressor lifetime
- oil reservoir equipped with oil gauge for easy reading of oil level
- automatic operation control by means of a high-end Condor pressure switch
- electric motor equipped with temperature protection
- pressure regulator and 2 outlets via standard DN7.2 quick coupling
- two pressure gauges for reading the outlet pressure and the pressure in the air tank
- 100-litre aerator with ball valve for convenient condensate drainage

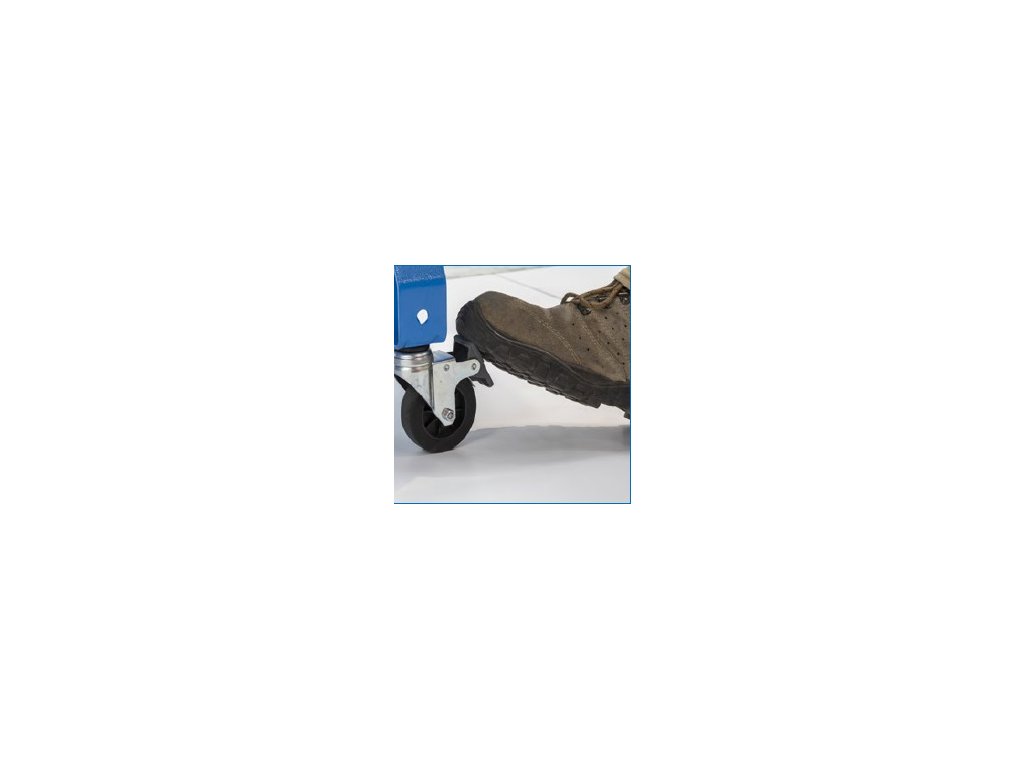

- two front wheels with brakes significantly increase the stability of the machine and significantly improve handling
- rubberised handle for perfect user comfort
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years with the possibility of extending it to 3 years and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | A49B two-stage compressors |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 11 Bar |
| Suction power: | 444 l/min |
| Displacement: | 342 l/min |
| Pressure vessel volume: | 100 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1050 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 stage |
| Lubrication: | Oily |
| Noise: | 91 dB - Lwa, 71 dB - Lwp(4m) |
| Dimensions: | 1006 x 486 x 927 mm |
| Weight: | 70 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
