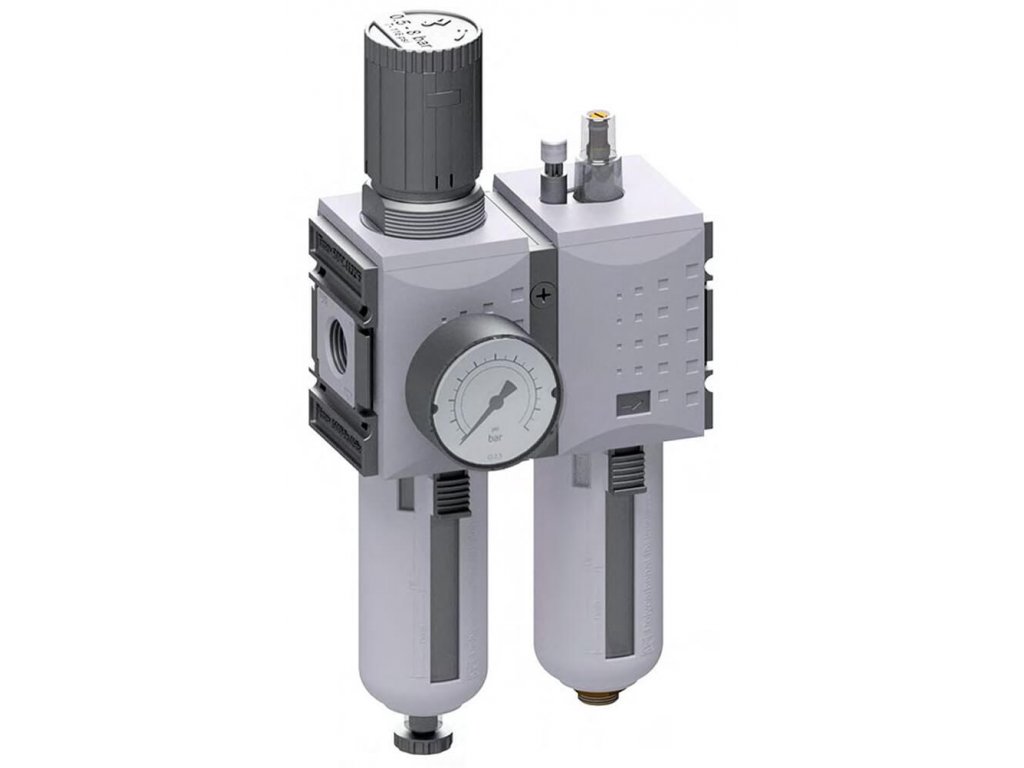

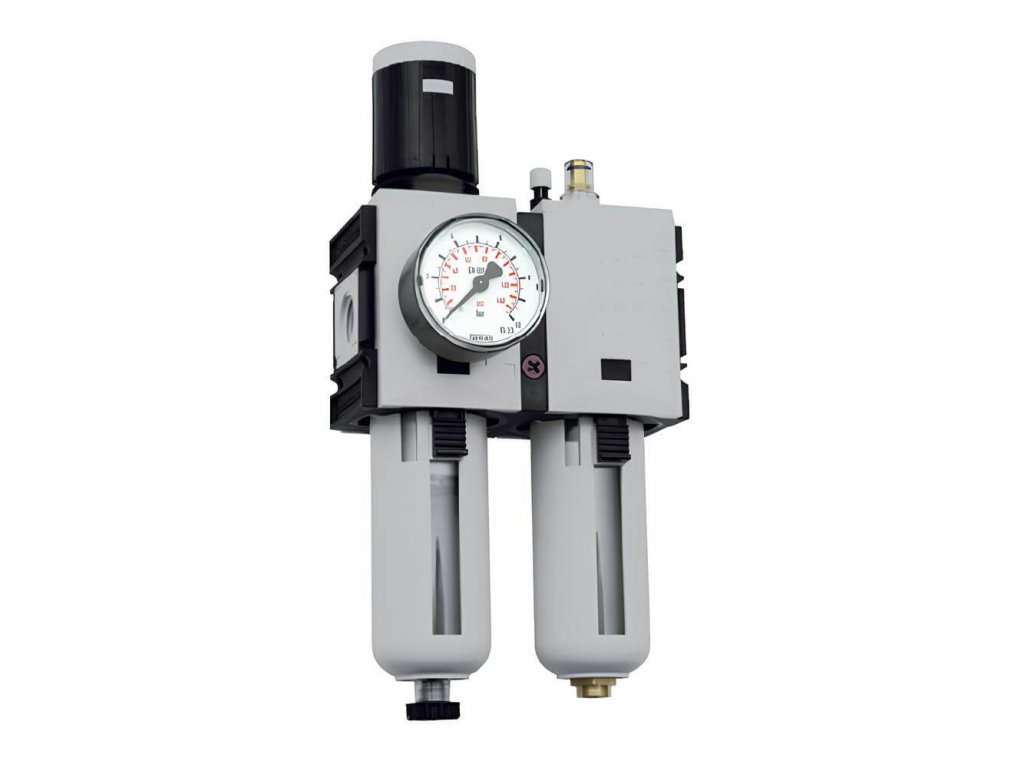

    Two-piece units Futura 3/8", 0.2 - 4 bar, 3,500 l/min

    Code: CL382-4F
    Not rated
    6 379 Kč –2 %
    Two-piece units Futura 3/8", 0.2 - 4 bar, 3,500 l/min
    6 379 Kč –2 % 6 251 Kč / pcs 5 166 Kč excl. VAT
    up to 14 days
    Delivery to:
    09.12.2024

    Complete unit 2-piece pressure regulator assembly with filter and oiler in one unit. Designed for compressed air and neutral gases. Design according to ATEX II 2G2D. Maximum inlet pressure 1.5 - 16 bar. Manometer diameter 50 mm - G1/4" is included. Filtration capacity 5 um

    Detailed information

    Related products

    sm
    Original parts
    86 Kč –2 %
    Fixing nut FUTURA size 2
    Stock (2 pcs)
    69 Kč excl. VAT
    84 Kč

    Size 2 mounting nut for FUTURA air treatment units such as pressure regulator or pressure regulator with filter. For mounting the angle for fixing the unit.

    Code: SM2F
    mw1f upevnovaci uhelnik futura
    Original parts
    387 Kč –2 %
    Fixing bracket for mounting FUTURA size 2
    up to 14 days
    313 Kč excl. VAT
    379 Kč

    Mounting bracket with size 2 lock nut for FUTURA air handling units. Installation for pressure regulator or pressure regulator with filter. Simple attachment with a bracket.

    Code: MW2F
    kp
    Original parts
    124 Kč –1 %
    FUTURA standard connection set size 2
    Stock (3 pcs)
    101 Kč excl. VAT
    122 Kč

    Standard connection set for FUTURA size 2 air handling units without wall bracket. The kit can be used to connect any 2 modules of a given size together without the need for...

    Code: KP2F
    kpw
    Original parts
    246 Kč –2 %
    Connection kit with bracket for wall mounting size 2
    Stock (1 pcs)
    199 Kč excl. VAT
    241 Kč

    Connection set of FUTURA air handling units with wall bracket size 2. The kit can be used to connect any 2 modules of a given size together without the need for screws and other...

    Code: KPW2F
    bf
    Original parts
    495 Kč –2 %
    Spare container FUTURA semi-automatic size 2
    Stock (1 pcs)
    401 Kč excl. VAT
    485 Kč

    Replacement container for FUTURA filters in size 2 with semi-automatic drainage - (manual manual and automatic drainage based on the fullness of the container). Suitable only...

    Code: BF2F
    bfm
    Original parts
    1 837 Kč –1 %
    Replacement robust container FUTURA semi-automatic size 2
    up to 14 days
    1 488 Kč excl. VAT
    1 801 Kč

    Replacement sturdy container for FUTURA filters in size 2 with semi-automatic drainage - (manual manual and automatic drainage based on container fullness). Suitable only for...

    Code: BFM2F
    bf am
    Original parts
    2 081 Kč –2 %
    Container with automatic release FUTURA size 2
    up to 14 days
    1 685 Kč excl. VAT
    2 039 Kč

    Replacement container for FUTURA filters in size 2 with automatic condensate release by means of a float. Suitable only for FUTURA series air treatment filter units.

    Code: BF2F-AM
    bol
    Original parts
    691 Kč –2 %
    Replacement container for FUTURA size 2 lubricants
    up to 14 days
    560 Kč excl. VAT
    677 Kč

    Replacement container for OL lubricator in size 2. For refilling oil to lubricate compressed air, e.g. for pneumatic tools. Suitable only for FUTURA series air handling units.

    Code: BOL2F
    bolm
    Original parts
    1 837 Kč –1 %
    Robust container for FUTURA size 2 lubricants
    up to 14 days
    1 488 Kč excl. VAT
    1 801 Kč

    Replacement container for OL grease gun in size 2. For refilling oil to lubricate compressed air, e.g. for pneumatic tools. Suitable only for FUTURA series air handling units.

    Code: BOLM2F
    w
    Original parts
    490 Kč –1 %
    Fixing bracket with screws FUTURA size 2
    Stock (1 pcs)
    398 Kč excl. VAT
    481 Kč

    Fixing bracket with screws under the cover of the FUTURA size 2 unit. All modules of FUTURA units can be mounted in this way. Easily mounted with wall bracket and similar mounting.

    Code: W2F
    FV 1F filtr vložka nahradni 5 um vzduch tlak kompresor
    Original parts
    414 Kč –1 %
    Spare filter insert 5 um - FV-2F
    up to 14 days
    336 Kč excl. VAT
    406 Kč

    Replacement filter cartridge 5 um for basic filter of FUTURA series - F382-F, F12-F. The filter insert can be easily replaced.

    Code: FV-2F
    OLN olej pneumaticke naradi vzduch maznice lubricant (1)
    Tip Original parts
    350 Kč –3 %
    Oil for pneumatic tools OLN-1
    Stock (942 pcs)
    280 Kč excl. VAT
    339 Kč

    Mineral oil for lubrication of pneumatic tools. Special viscosity specifically for compressed air driven tools. Branded oil manufacturer with safety data sheet available....

    Code: OLN-1
    bfm am
    Original parts
    3 482 Kč –1 %
    Robust container with automatic drain FUTURA size 2
    up to 14 days
    2 821 Kč excl. VAT
    3 413 Kč

    Replacement robust container for FUTURA filters in size 2 with automatic condensate drainage via float. Suitable only for FUTURA series air treatment filter units.

    Code: BFM2F-AM
    Show all related products Previous product Next product

    Product detailed description

    Futura air treatment unit - CL382-4F

    • Pressure regulator assembly with filter and oiler in one device
    • Designed for compressed air and neutral gases
    • Design according to ATEX II 2G2D
    • Maximum inlet pressure 1.5 - 16 bar
    • Operating temperature -10°C - +50°C
    • Materials : Grivory body (PA66), POM spring, NBR gasket and membrane, polycarbonate container
    • Adjusting pin can be locked against turning, semi-automatic condensate drain
    • Manometer diameter 50 mm - G1/4 included
    • Filtration capacity 5 um

    Additional parameters

    Category: FUTURA air conditioning units
    Version: Complete unit
    Pressure: 16 bar
    Dimensions: 126 x 257 mm
    Certification: ATEX II 2G2D
    Filtering ability: 5 um
    Filter insert: Replacement insert 20 um (FV-2F)
    Medium: Compressed air
    Vessel volume: Filter - 49 cm3, Oiler - 80 cm3
    Condensate discharge: Semi-automatic
    Working temperature: -10 / 50 °C
    Flow: 3,500 l/min
    Regulatory range: 0.2 - 4 bar
    Pressure gauge range: 0 - 6 bar
    Included in delivery: Manometer
    Thread: G 3/8"
    Thread for manometer: 1/4"
