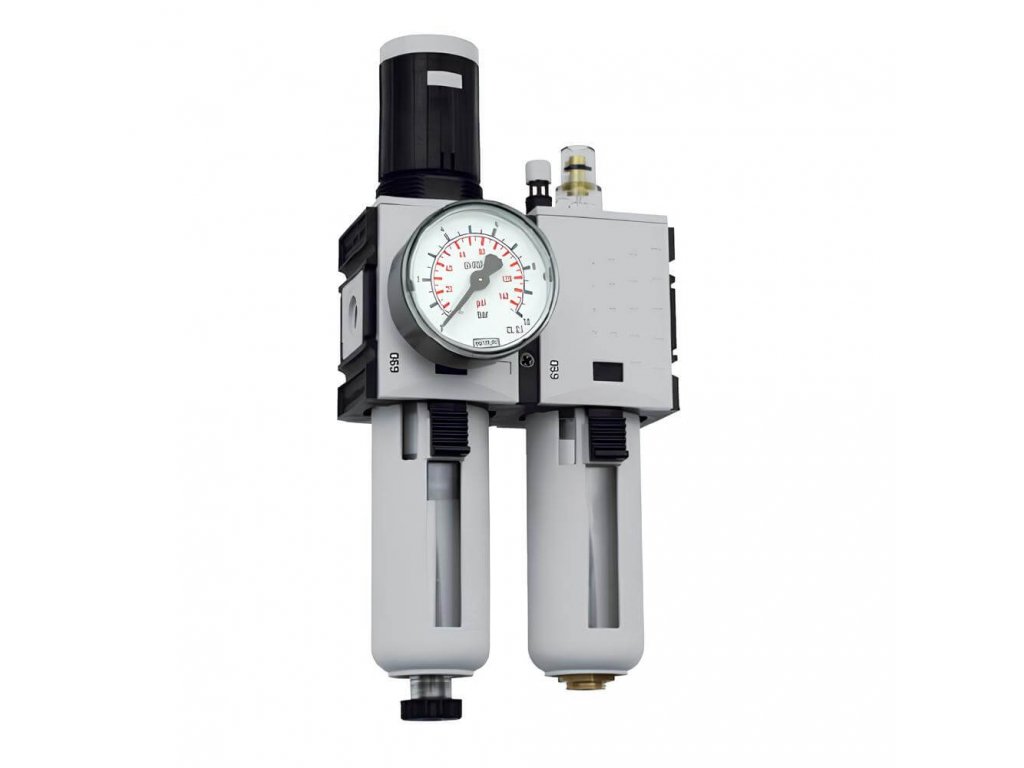

    Two-piece units Futura 1/4", 0.1 - 2 bar, 1800 l/min

    Code: CL14-2F
    Not rated
    3 673 Kč –1 %
    Two-piece units Futura 1/4", 0.1 - 2 bar, 1800 l/min
    3 673 Kč –1 % 3 600 Kč / pcs 2 975 Kč excl. VAT
    up to 14 days
    Delivery to:
    21.10.2024

    Complete unit 2-piece pressure regulator assembly with filter and oiler in one unit. Designed for compressed air and neutral gases. Design according to ATEX II 2G2D. Maximum inlet pressure 1.5 - 16 bar. Manometer diameter 50 mm - G1/4" is included. Filtration capacity 5 um

    Detailed information

    Related products

    sm
    Original parts
    48 Kč –2 %
    Fixing nut FUTURA size 1
    Stock (2 pcs)
    39 Kč excl. VAT
    47 Kč

    Size 1 mounting nut for FUTURA air treatment units such as pressure regulator or pressure regulator with filter. For mounting the angle for fixing the unit.

    Code: SM1F
    mw1f upevnovaci uhelnik futura
    Original parts
    294 Kč –2 %
    Fixing bracket for mounting FUTURA size 1
    Stock (1 pcs)
    238 Kč excl. VAT
    288 Kč

    Mounting bracket with size 1 lock nut for FUTURA air handling units. Installation for pressure regulator or pressure regulator with filter. Simple attachment with a bracket. The...

    Code: MW1F
    kp
    Original parts
    98 Kč –2 %
    FUTURA standard connection set size 1
    Stock (3 pcs)
    79 Kč excl. VAT
    96 Kč

    Standard connection set for FUTURA size 1 air handling units without wall bracket. The kit can be used to connect any 2 modules of a given size together without the need for...

    Code: KP1F
    kpw
    Original parts
    162 Kč –1 %
    Connection kit with bracket for wall mounting size 1
    Stock (1 pcs)
    131 Kč excl. VAT
    159 Kč

    Connection set of FUTURA air handling units with wall bracket size 1. The kit can be used to connect any 2 modules of a given size together without the need for screws and other...

    Code: KPW1F
    bf
    Original parts
    397 Kč –2 %
    Spare container FUTURA semi-automatic size 1
    Stock (2 pcs)
    321 Kč excl. VAT
    389 Kč

    Replacement container for FUTURA filters in size 1 with semi-automatic drainage - (manual manual and automatic drainage based on the fullness of the container). Suitable only...

    Code: BF1F
    bfm
    Original parts
    1 486 Kč –2 %
    Replacement robust container FUTURA semi-automatic size 1
    up to 14 days
    1 203 Kč excl. VAT
    1 456 Kč

    Replacement sturdy container for FUTURA filters in size 1 with semi-automatic drainage - (manual manual and automatic drainage based on container fullness). Suitable only for...

    Code: BFM1F
    bf am
    Original parts
    1 916 Kč –1 %
    Container with automatic release FUTURA size 1
    up to 14 days
    1 552 Kč excl. VAT
    1 878 Kč

    Replacement container for FUTURA filters in size 1 with automatic condensate release by means of a float. Suitable only for FUTURA series air treatment filter units.

    Code: BF1F-AM
    bol
    Original parts
    552 Kč –1 %
    Spare container for FUTURA size 1 lubricants
    up to 14 days
    447 Kč excl. VAT
    541 Kč

    Replacement container for OL lubricator in size 1. For refilling oil to lubricate compressed air, e.g. for pneumatic tools. Suitable only for FUTURA series air handling units.

    Code: BOL1F
    bolm
    Original parts
    1 473 Kč –2 %
    Robust container for FUTURA size 1 lubricants
    up to 14 days
    1 193 Kč excl. VAT
    1 443 Kč

    Replacement container for OL grease gun in size 1. For refilling oil to lubricate compressed air, e.g. for pneumatic tools. Suitable only for FUTURA series air handling units.

    Code: BOLM1F
    w
    Original parts
    328 Kč –2 %
    Fixing bracket with screws FUTURA size 1
    up to 14 days
    265 Kč excl. VAT
    321 Kč

    Fixing bracket with screws under the cover of the FUTURA size 1 unit. All modules of FUTURA units can be mounted in this way. Easily mounted with wall bracket and similar mounting.

    Code: W1F
    FV 1F filtr vložka nahradni 5 um vzduch tlak kompresor
    Original parts
    355 Kč –1 %
    Replacement filter insert 5 um - FV-1F
    up to 14 days
    288 Kč excl. VAT
    348 Kč

    Replacement filter cartridge 5 um for basic filter of FUTURA series - F14-F and F38-F. The filter insert can be easily replaced.

    Code: FV-1F
    OLN olej pneumaticke naradi vzduch maznice lubricant (1)
    Tip Original parts
    Oil for pneumatic tools OLN-1
    Stock (>1000 pcs)
    246 Kč excl. VAT
    298 Kč

    Mineral oil for lubrication of pneumatic tools. Special viscosity specifically for compressed air driven tools. Branded oil manufacturer with safety data sheet available....

    Code: OLN-1
    bfm am
    Original parts
    2 682 Kč –1 %
    Robust container with automatic drain FUTURA size 1
    up to 14 days
    2 173 Kč excl. VAT
    2 629 Kč

    Replacement robust container for FUTURA filters in size 1 with automatic condensate drainage via float. Suitable only for FUTURA series air treatment filter units.

    Code: BFM1F-AM
    Show all related products Previous product Next product

    Product detailed description

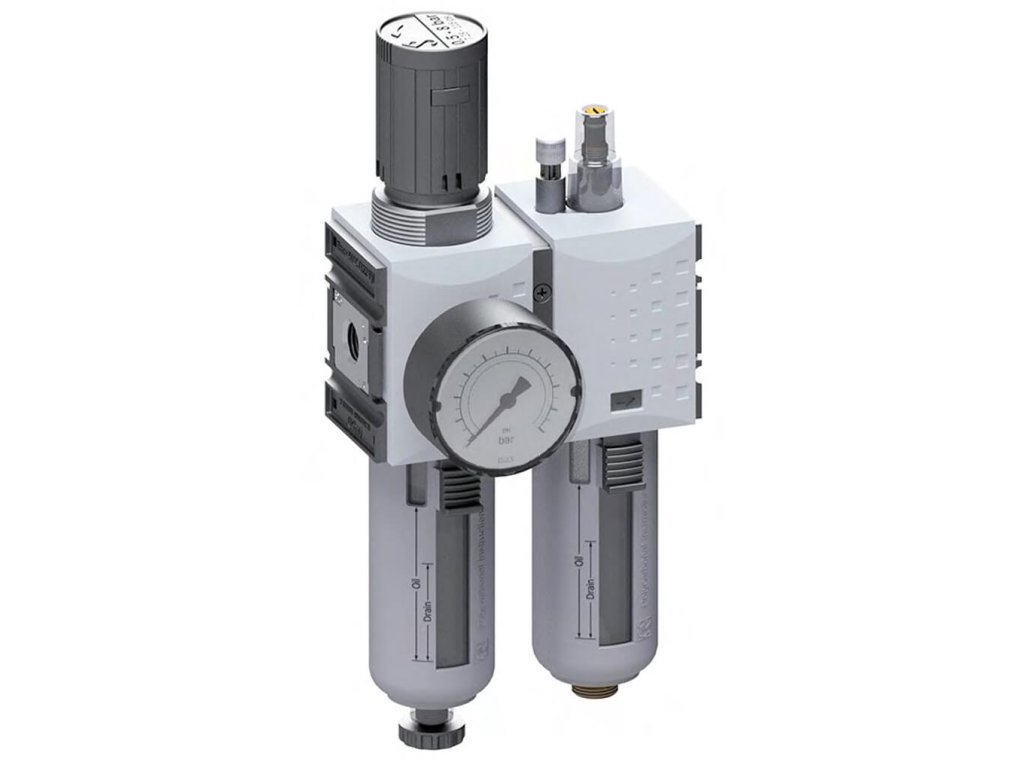

    Futura air treatment unit - CL14-2F

    • Pressure regulator assembly with filter and oiler in one device
    • Designed for compressed air and neutral gases
    • Design according to ATEX II 2G2D
    • Maximum inlet pressure 1.5 - 16 bar
    • Operating temperature -10°C - +50°C
    • Materials : Grivory body (PA66), POM spring, NBR gasket and membrane, polycarbonate container
    • Adjusting pin can be locked against turning, semi-automatic condensate drain
    • Manometer diameter 50 mm - G1/4 included
    • Filtration capacity 5 um

    Additional parameters

    Category: FUTURA air conditioning units
    Version: Complete unit
    Pressure: 16 bar

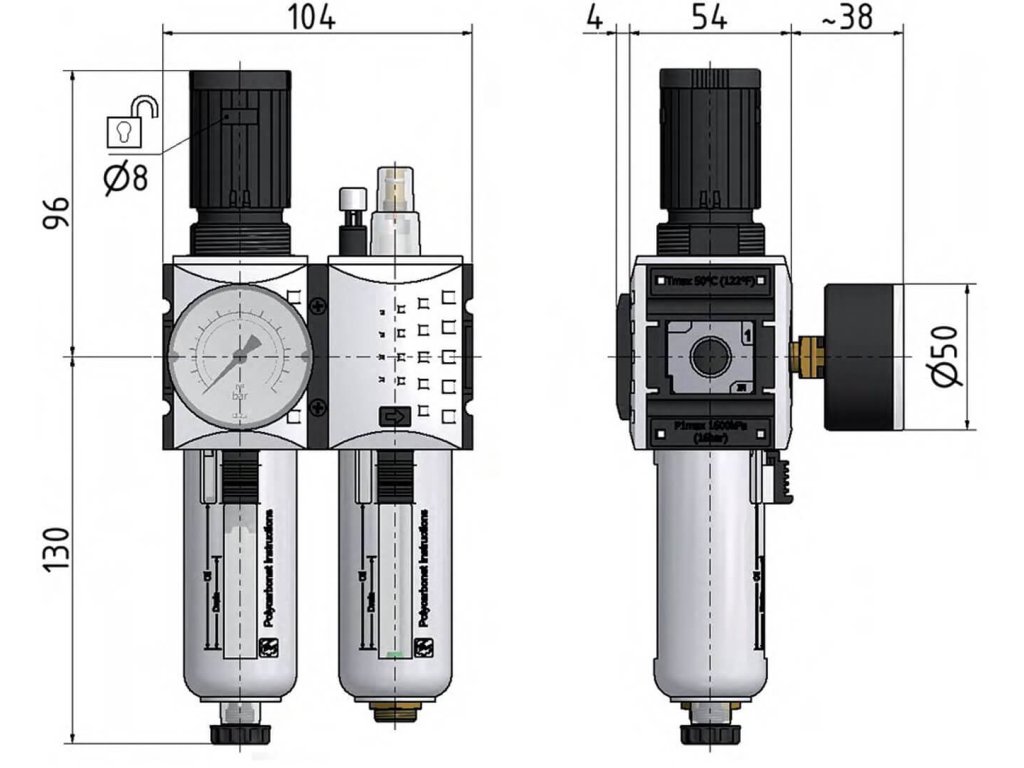

    Dimensions: 104 x 225 mm
    Certification: ATEX II 2G2D
    Filtering ability: 5 um
    Filter insert: Replacement insert 20 um (FV-1F)
    Medium: Compressed air
    Vessel volume: Filter - 28 cm3, Oiler - 40 cm3
    Condensate discharge: Semi-automatic
    Working temperature: -10 / 50 °C
    Flow: 1,800 l/min
    Regulatory range: 0.1 - 2 bar
    Pressure gauge range: 0 - 2.5 bar
    Included in delivery: Manometer
    Thread: G 1/4"
    Thread for manometer: 1/4"
