    Home / Air conditioning / Treatment units; basic units for air / Futura treatment units; ATEX up to 16 bar / Two-piece units; Atex design / Two-part units Futura 1/2", 0.5 - 16 bar, 3,500 l/min

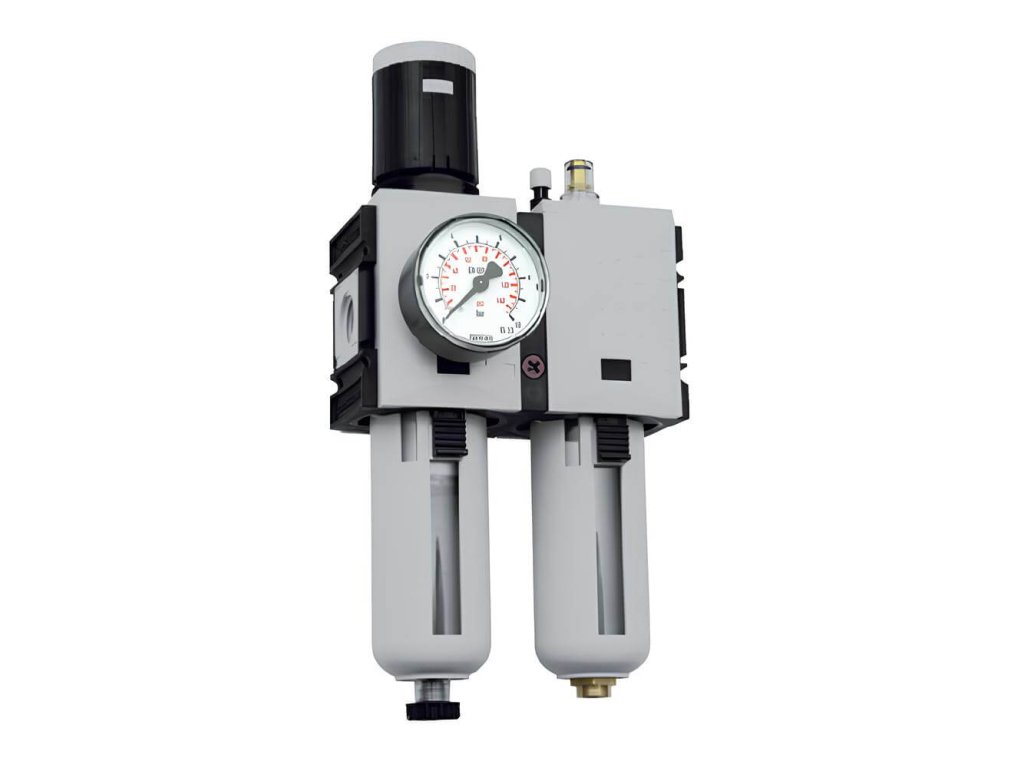

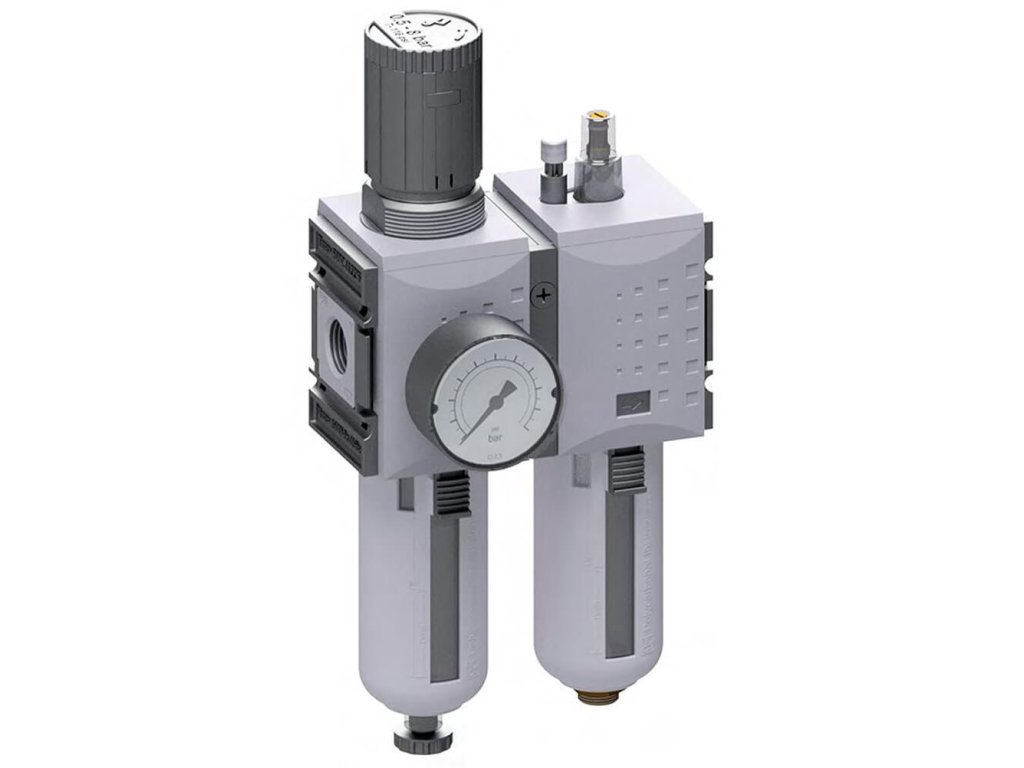

    Two-part units Futura 1/2", 0.5 - 16 bar, 3,500 l/min

    Code: CL12-16F
    Not rated
    5 906 Kč –5 %
    Two-part units Futura 1/2", 0.5 - 16 bar, 3,500 l/min
    5 906 Kč –5 % 5 610 Kč / pcs 4 636 Kč excl. VAT
    up to 14 days
    Delivery to:
    21.04.2025
    Delivery offer

    Complete unit 2-piece pressure regulator assembly with filter and oiler in one unit. Designed for compressed air and neutral gases. Design according to ATEX II 2G2D. Maximum inlet pressure 1.5 - 16 bar. Manometer diameter 50 mm - G1/4" is included. Filtration capacity 5 um

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    sm
    Original parts
    80 Kč –5 %
    Fixing nut FUTURA size 2
    Stock (1 pcs)
    63 Kč excl. VAT
    76 Kč

    Size 2 mounting nut for FUTURA air treatment units such as pressure regulator or pressure regulator with filter. For mounting the angle for fixing the unit.

    Code: SM2F
    mw1f upevnovaci uhelnik futura
    Original parts
    358 Kč –5 %
    Fixing bracket for mounting FUTURA size 2
    up to 14 days
    281 Kč excl. VAT
    340 Kč

    Mounting bracket with size 2 lock nut for FUTURA air handling units. Installation for pressure regulator or pressure regulator with filter. Simple attachment with a bracket. The...

    Code: MW2F
    kp
    Original parts
    115 Kč –5 %
    FUTURA standard connection set size 2
    Stock (3 pcs)
    90 Kč excl. VAT
    109 Kč

    Standard connection set for FUTURA size 2 air handling units without wall bracket. The kit can be used to connect any 2 modules of a given size together without the need for...

    Code: KP2F
    kpw
    Original parts
    227 Kč –4 %
    Connection kit with bracket for wall mounting size 2
    Stock (1 pcs)
    179 Kč excl. VAT
    216 Kč

    Connection set of FUTURA air handling units with wall bracket size 2. The kit can be used to connect any 2 modules of a given size together without the need for screws and other...

    Code: KPW2F
    bf
    Original parts
    459 Kč –5 %
    Spare container FUTURA semi-automatic size 2
    Stock (1 pcs)
    360 Kč excl. VAT
    436 Kč

    Replacement container for FUTURA filters in size 2 with semi-automatic drainage - (manual manual and automatic drainage based on the fullness of the container). Suitable only...

    Code: BF2F
    bfm
    Original parts
    1 700 Kč –5 %
    Replacement robust container FUTURA semi-automatic size 2
    up to 14 days
    1 335 Kč excl. VAT
    1 615 Kč

    Replacement sturdy container for FUTURA filters in size 2 with semi-automatic drainage - (manual manual and automatic drainage based on container fullness). Suitable only for...

    Code: BFM2F
    bf am
    Original parts
    1 925 Kč –4 %
    Container with automatic release FUTURA size 2
    up to 14 days
    1 512 Kč excl. VAT
    1 829 Kč

    Replacement container for FUTURA filters in size 2 with automatic condensate release by means of a float. Suitable only for FUTURA series air treatment filter units.

    Code: BF2F-AM
    bol
    Original parts
    640 Kč –5 %
    Replacement container for FUTURA size 2 lubricants
    up to 14 days
    502 Kč excl. VAT
    608 Kč

    Replacement container for OL lubricator in size 2. For refilling oil to lubricate compressed air, e.g. for pneumatic tools. Suitable only for FUTURA series air handling units.

    Code: BOL2F
    bolm
    Original parts
    1 700 Kč –5 %
    Robust container for FUTURA size 2 lubricants
    up to 14 days
    1 335 Kč excl. VAT
    1 615 Kč

    Replacement container for OL grease gun in size 2. For refilling oil to lubricate compressed air, e.g. for pneumatic tools. Suitable only for FUTURA series air handling units.

    Code: BOLM2F
    w
    Original parts
    454 Kč –4 %
    Fixing bracket with screws FUTURA size 2
    Stock (1 pcs)
    357 Kč excl. VAT
    432 Kč

    Fixing bracket with screws under the cover of the FUTURA size 2 unit. All modules of FUTURA units can be mounted in this way. Easily mounted with wall bracket and similar mounting.

    Code: W2F
    FV 1F filtr vložka nahradni 5 um vzduch tlak kompresor
    Original parts
    328 Kč –4 %
    Spare filter insert 5 um - FV-2F
    up to 14 days
    258 Kč excl. VAT
    312 Kč

    Replacement filter cartridge 5 um for basic filter of FUTURA series - F382-F, F12-F. The filter insert can be easily replaced.

    Code: FV-2F
    OLN olej pneumaticke naradi vzduch maznice lubricant (1)
    Tip Original parts
    350 Kč –3 %
    Oil for pneumatic tools OLN-1
    Stock (782 pcs)
    280 Kč excl. VAT
    339 Kč

    Mineral oil for lubrication of pneumatic tools. Special viscosity specifically for compressed air driven tools. Branded oil manufacturer with safety data sheet available....

    Code: OLN-1
    bfm am
    Original parts
    3 222 Kč –5 %
    Robust container with automatic drain FUTURA size 2
    up to 14 days
    2 530 Kč excl. VAT
    3 061 Kč

    Replacement robust container for FUTURA filters in size 2 with automatic condensate drainage via float. Suitable only for FUTURA series air treatment filter units.

    Code: BFM2F-AM
    Show all related products Previous product Next product

    Product detailed description

    Futura air treatment unit - CL12-16F

    • Pressure regulator assembly with filter and oiler in one device
    • Designed for compressed air and neutral gases
    • Design according to ATEX II 2G2D
    • Maximum inlet pressure 1.5 - 16 bar
    • Operating temperature -10°C - +50°C
    • Materials : Grivory body (PA66), POM spring, NBR gasket and membrane, polycarbonate container
    • Adjusting pin can be locked against turning, semi-automatic condensate drain
    • Manometer diameter 50 mm - G1/4 included
    • Filtration capacity 5 um

    Additional parameters

    Category: FUTURA air conditioning units
    Version: Complete unit
    Pressure: 16 bar
    Dimensions: 126 x 257 mm
    Certification: ATEX II 2G2D
    Filtering ability: 5 um
    Filter insert: Replacement insert 20 um (FV-2F)
    Medium: Compressed air
    Vessel volume: Filter - 49 cm3, Oiler - 80 cm3
    Condensate discharge: Semi-automatic
    Working temperature: -10 / 50 °C
    Flow: 3,500 l/min
    Regulatory range: 0.5 - 16 bar
    Pressure gauge range: 0 - 25 bar
    Included in delivery: Manometer
    Thread: G 1/2"
    Thread for manometer: 1/4"
