    Double acting cylinders CX 80mm

    Code: 80/25CX 80/50CX 80/75CX 80/100CX 80/125CX 80/150CX 80/200CX 80/250CX 80/300CX 80/400CX 80/500CX 80/600CX 80/700CX 80/800CX 80/900CX 80/1000CX Choose variant
    Not rated
    Brand: A.P.I.
    7 742 Kč 7 873 Kč 8 029 Kč 8 137 Kč 8 268 Kč 8 400 Kč 8 663 Kč 8 926 Kč 9 189 Kč 9 715 Kč 10 237 Kč 10 763 Kč 11 289 Kč 11 815 Kč 12 342 Kč 12 868 Kč from 7 742 Kč –5 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % up to –5 %
    Double acting cylinders CX 80mm
    7 742 Kč 7 873 Kč 8 029 Kč 8 137 Kč 8 268 Kč 8 400 Kč 8 663 Kč 8 926 Kč 9 189 Kč 9 715 Kč 10 237 Kč 10 763 Kč 11 289 Kč 11 815 Kč 12 342 Kč 12 868 Kč from 7 742 Kč –5 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % up to –5 % 7 355 Kč / pcs 7 480 Kč / pcs 7 628 Kč / pcs 7 730 Kč / pcs 7 855 Kč / pcs 7 980 Kč / pcs 8 230 Kč / pcs 8 479 Kč / pcs 8 729 Kč / pcs 9 229 Kč / pcs 9 725 Kč / pcs 10 225 Kč / pcs 10 725 Kč / pcs 11 225 Kč / pcs 11 725 Kč / pcs 12 224 Kč / pcs from 7 355 Kč / pcs 6 079 Kč excl. VAT 6 182 Kč excl. VAT 6 304 Kč excl. VAT 6 388 Kč excl. VAT 6 492 Kč excl. VAT 6 595 Kč excl. VAT 6 802 Kč excl. VAT 7 007 Kč excl. VAT 7 214 Kč excl. VAT 7 627 Kč excl. VAT 8 037 Kč excl. VAT 8 450 Kč excl. VAT 8 864 Kč excl. VAT 9 277 Kč excl. VAT 9 690 Kč excl. VAT 10 102 Kč excl. VAT from 6 079 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 Choose variant

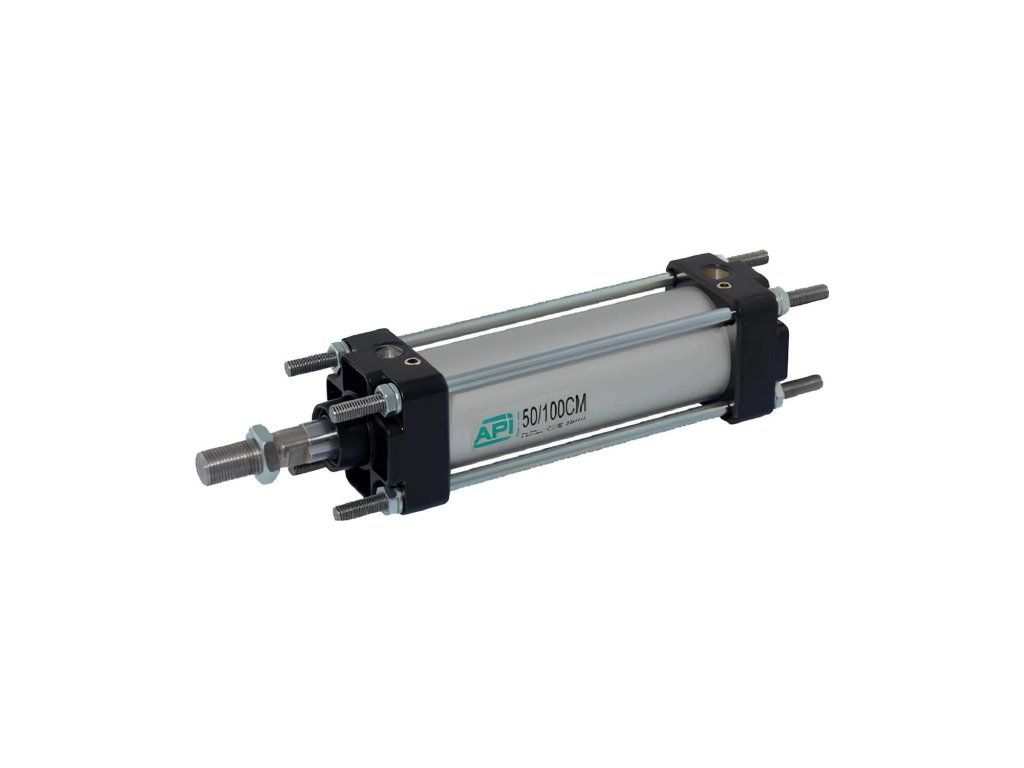

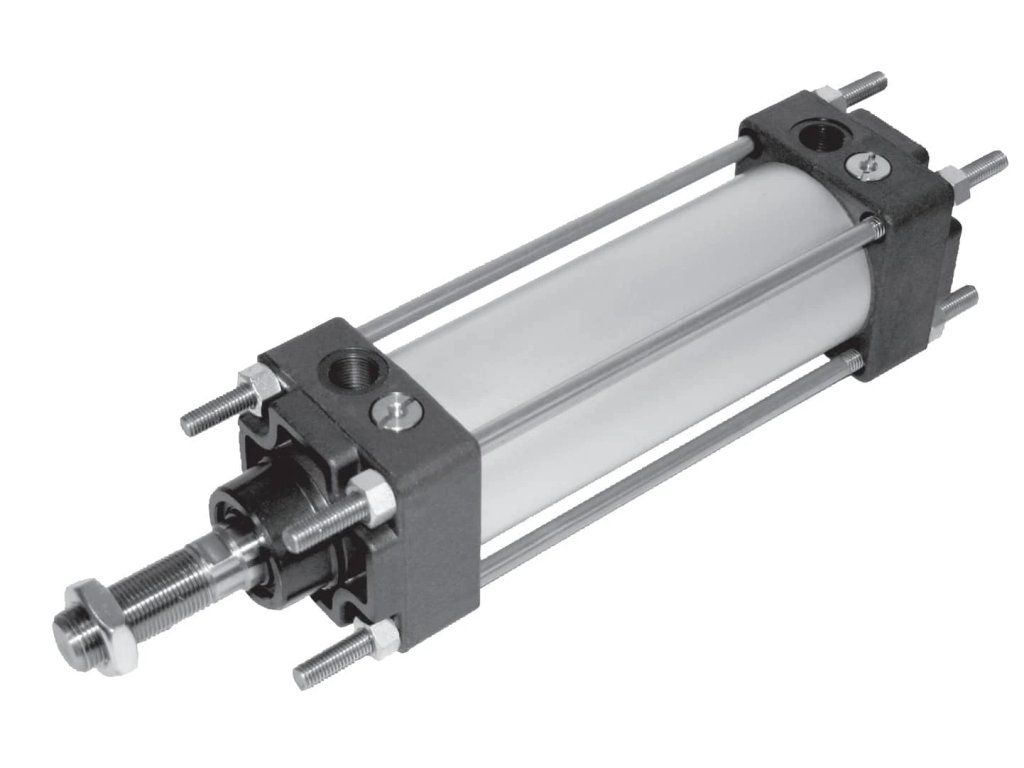

    Double-acting cylinder CX with diameter 80 mm without magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup rods. Made of aluminium and C45 steel.

    Detailed information

    Product detailed description

    Double acting cylinders CX 80 mm without magnet

    • diameter 80 mm
    • strokes 10 - 2500 mm
    • connection via 3/8" thread
    • pressure 1 - 10 bar

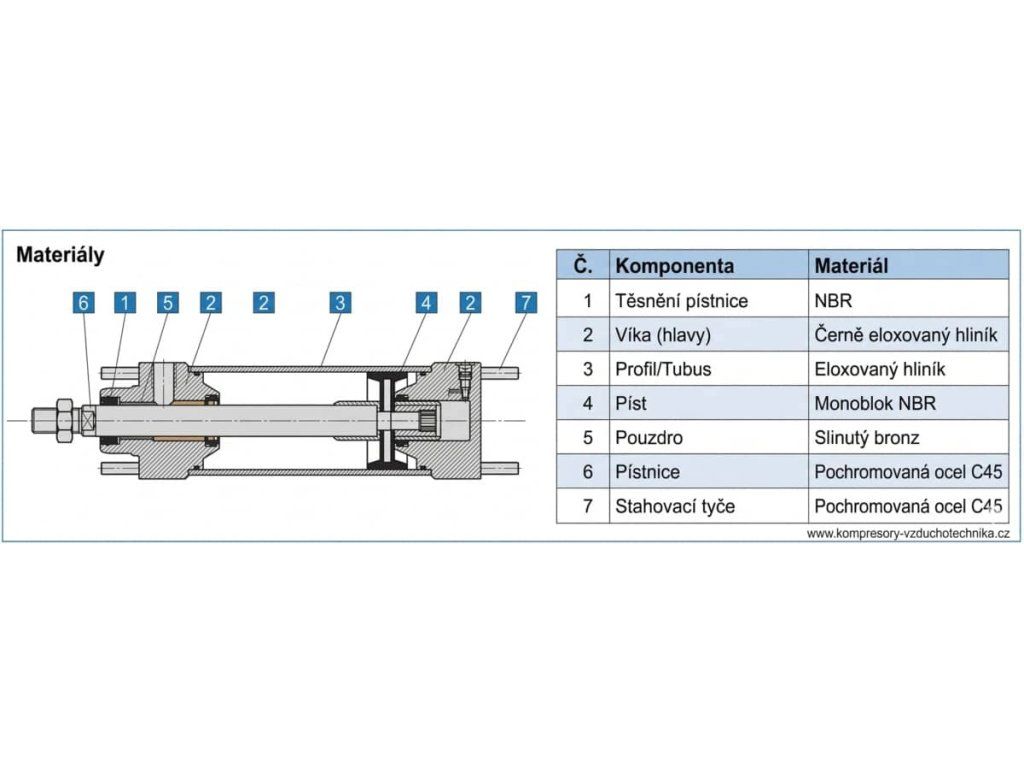

    • made of aluminium and C45 steel

    Additional parameters

    Category: Profiled cylinders CX and CM according to CNOMO
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 3/8"
    Damping length: 34 mm
    Magnet: without magnet
    Piston rod material: C45 steel
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 80 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 2710 N
    Cylinder type: Profile
    Stroke selection: 10 - 2500 mm
    Connecting rod thread: M20 x 1.5
    Minimální tlak: 1 bar
