Double acting cylinders CX 63mm

Code: 63/25CX 63/50CX 63/75CX 63/100CX 63/125CX 63/150CX 63/200CX 63/250CX 63/300CX 63/400CX 63/500CX 63/600CX 63/700CX 63/800CX 63/900CX 63/1000CX Choose variant
6 034 Kč 6 145 Kč 6 271 Kč 6 358 Kč 6 465 Kč 6 573 Kč 6 787 Kč 7 002 Kč 7 216 Kč 7 649 Kč 8 078 Kč 8 507 Kč 8 941 Kč 9 370 Kč 9 799 Kč 10 232 Kč from 6 034 Kč –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 %
Double acting cylinders CX 63mm
6 034 Kč 6 145 Kč 6 271 Kč 6 358 Kč 6 465 Kč 6 573 Kč 6 787 Kč 7 002 Kč 7 216 Kč 7 649 Kč 8 078 Kč 8 507 Kč 8 941 Kč 9 370 Kč 9 799 Kč 10 232 Kč from 6 034 Kč –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 % 5 732 Kč / pcs 5 837 Kč / pcs 5 957 Kč / pcs 6 040 Kč / pcs 6 142 Kč / pcs 6 244 Kč / pcs 6 448 Kč / pcs 6 652 Kč / pcs 6 855 Kč / pcs 7 267 Kč / pcs 7 674 Kč / pcs 8 082 Kč / pcs 8 493 Kč / pcs 8 901 Kč / pcs 9 309 Kč / pcs 9 720 Kč / pcs from 5 732 Kč / pcs 4 737 Kč excl. VAT 4 824 Kč excl. VAT 4 923 Kč excl. VAT 4 992 Kč excl. VAT 5 076 Kč excl. VAT 5 160 Kč excl. VAT 5 329 Kč excl. VAT 5 498 Kč excl. VAT 5 665 Kč excl. VAT 6 006 Kč excl. VAT 6 342 Kč excl. VAT 6 679 Kč excl. VAT 7 019 Kč excl. VAT 7 356 Kč excl. VAT 7 693 Kč excl. VAT 8 033 Kč excl. VAT from 4 737 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 11.11.2024 Choose variant

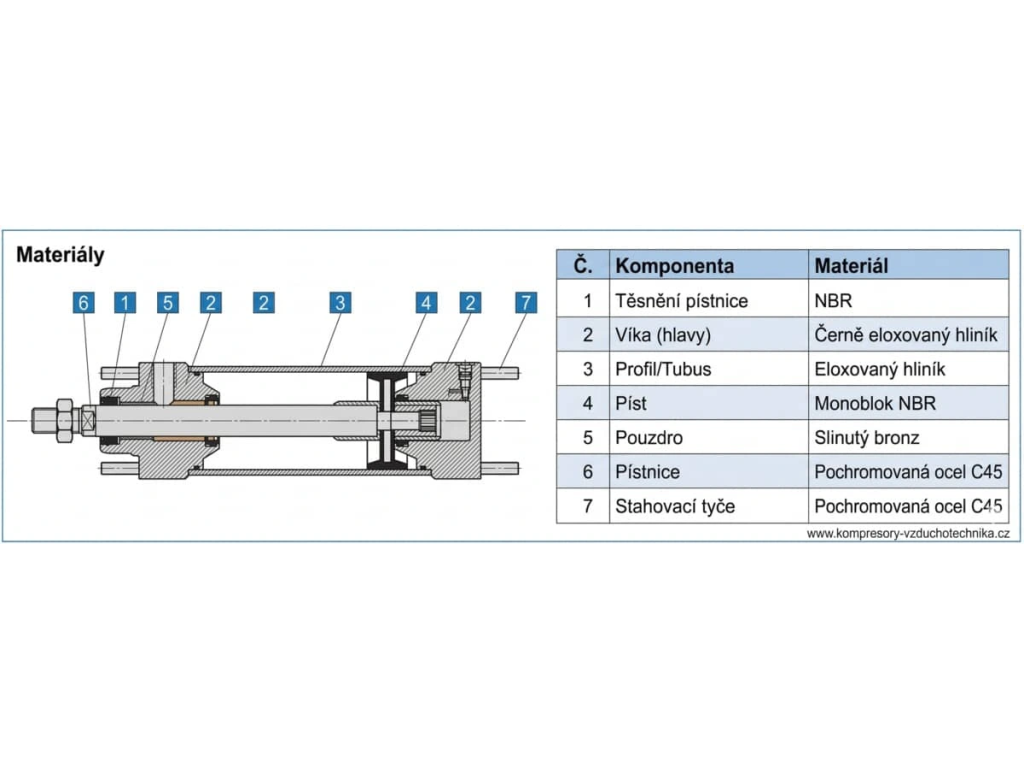

Double-acting cylinder CX with diameter 63 mm without magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup rods. Made of aluminium and C45 steel.

Detailed information

Product detailed description

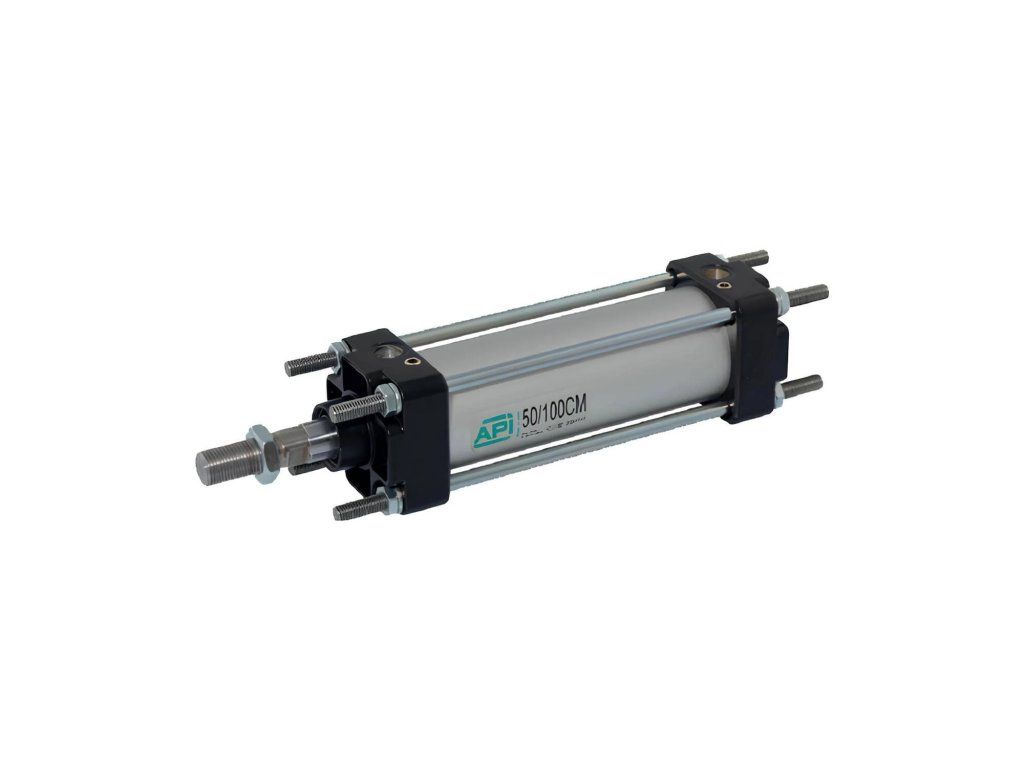

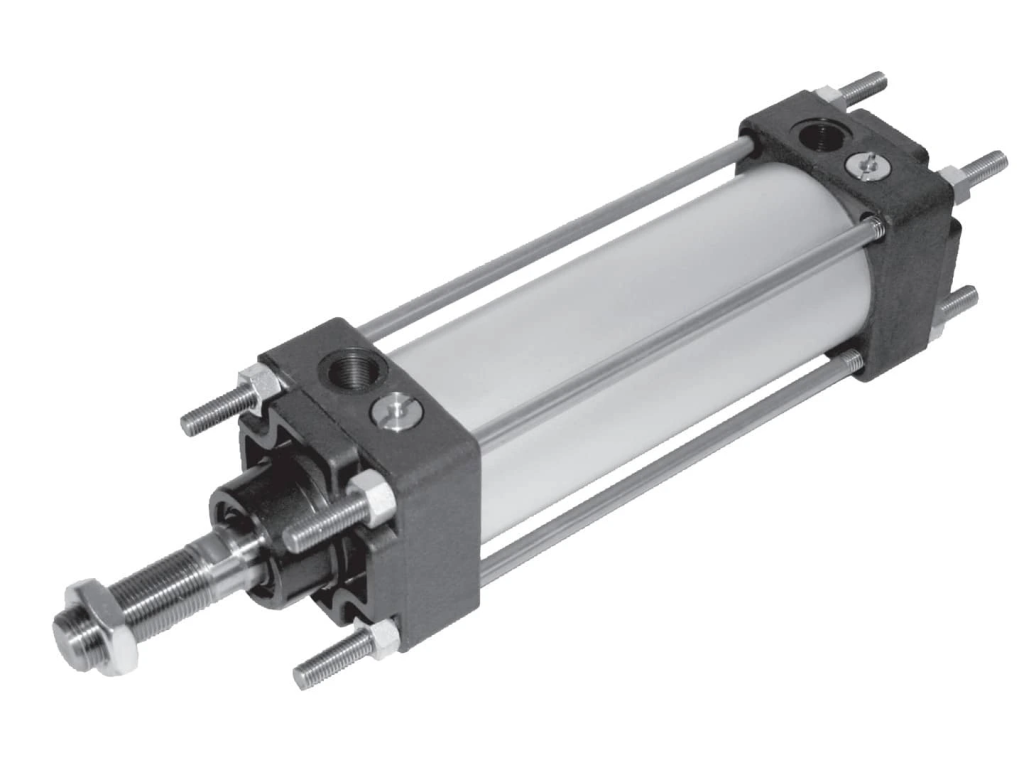

Double acting cylinders CX 63 mm without magnet

  • diameter 63 mm
  • strokes 10 - 2500 mm
  • connection via 3/8" thread
  • pressure 1 - 10 bar
  • made of aluminium and C45 steel

Additional parameters

Category: Profiled cylinders CX and CM according to CNOMO
Version: Double acting cylinders
Pressure: 10 bars
Connecting: 3/8"
Damping length: 34 mm
Magnet: without magnet
Piston rod material: C45 steel
Profile material: Aluminium
Lid material: Aluminium
Average: 63 mm
Temperature: -20/+80°C
Seals: NBR/PU
Cylinder thrust: 1680 N
Cylinder type: Profile
Stroke selection: 10 - 2500 mm
Connecting rod thread: M20 x 1.5
Minimální tlak: 1 bar

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic Components for Automation Technology

Rich Experience Complements a Wide Range

One of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions.

api-provozovna
API

Quality Certificate at a Good Price

For the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses.

The offered range from API is brought to you by our company Compressors air technology here.
