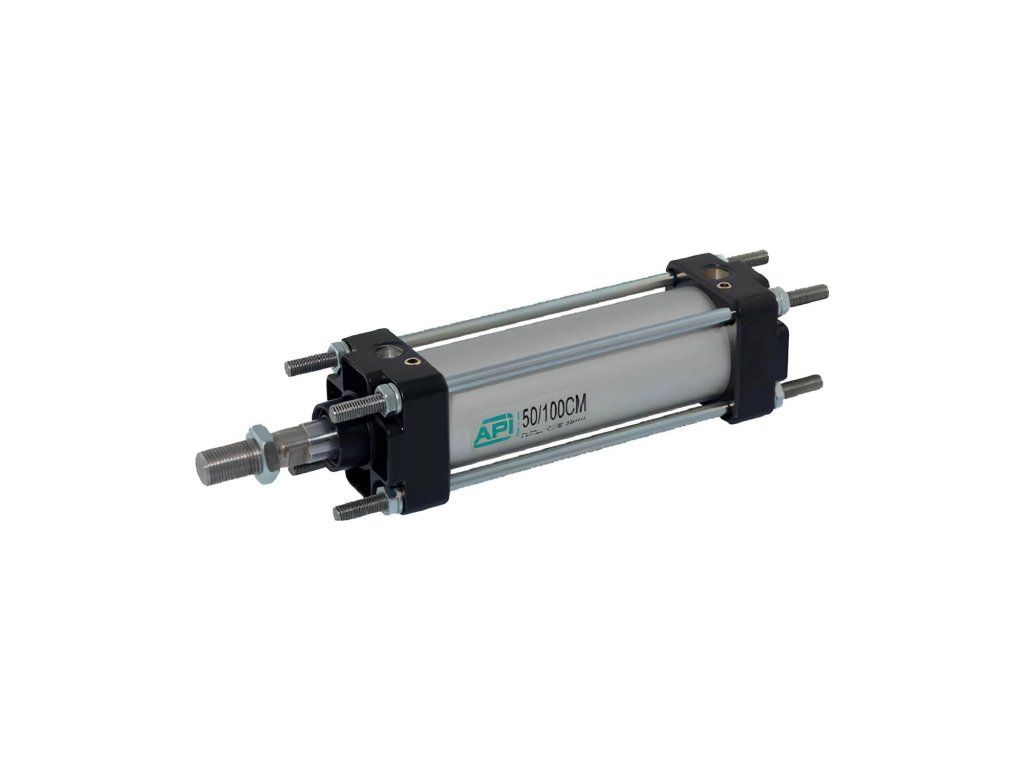

    Double acting cylinders CX 40mm

    Code: 40/25CX 40/50CX 40/75CX 40/100CX 40/125CX 40/150CX 40/200CX 40/250CX 40/300CX 40/400CX 40/500CX 40/600CX 40/700CX 40/800CX 40/900CX 40/1000CX Choose variant
    Not rated
    Brand: A.P.I.
    3 985 Kč 4 076 Kč 4 186 Kč 4 256 Kč 4 346 Kč 4 436 Kč 4 617 Kč 4 798 Kč 4 978 Kč 5 340 Kč 5 701 Kč 6 061 Kč 6 422 Kč 6 783 Kč 7 145 Kč 7 505 Kč from 3 985 Kč –4 % –5 % –4 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 %
    Double acting cylinders CX 40mm
    3 985 Kč 4 076 Kč 4 186 Kč 4 256 Kč 4 346 Kč 4 436 Kč 4 617 Kč 4 798 Kč 4 978 Kč 5 340 Kč 5 701 Kč 6 061 Kč 6 422 Kč 6 783 Kč 7 145 Kč 7 505 Kč from 3 985 Kč –4 % –5 % –4 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 % 3 786 Kč / pcs 3 872 Kč / pcs 3 977 Kč / pcs 4 043 Kč / pcs 4 128 Kč / pcs 4 215 Kč / pcs 4 386 Kč / pcs 4 558 Kč / pcs 4 729 Kč / pcs 5 073 Kč / pcs 5 416 Kč / pcs 5 758 Kč / pcs 6 101 Kč / pcs 6 444 Kč / pcs 6 787 Kč / pcs 7 130 Kč / pcs from 3 786 Kč / pcs 3 129 Kč excl. VAT 3 200 Kč excl. VAT 3 287 Kč excl. VAT 3 341 Kč excl. VAT 3 412 Kč excl. VAT 3 483 Kč excl. VAT 3 625 Kč excl. VAT 3 767 Kč excl. VAT 3 908 Kč excl. VAT 4 193 Kč excl. VAT 4 476 Kč excl. VAT 4 759 Kč excl. VAT 5 042 Kč excl. VAT 5 326 Kč excl. VAT 5 609 Kč excl. VAT 5 893 Kč excl. VAT from 3 129 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
    Delivery offer
    Double-acting cylinder CX 40 mm diameter without magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup rods. Made of aluminium and C45 steel.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

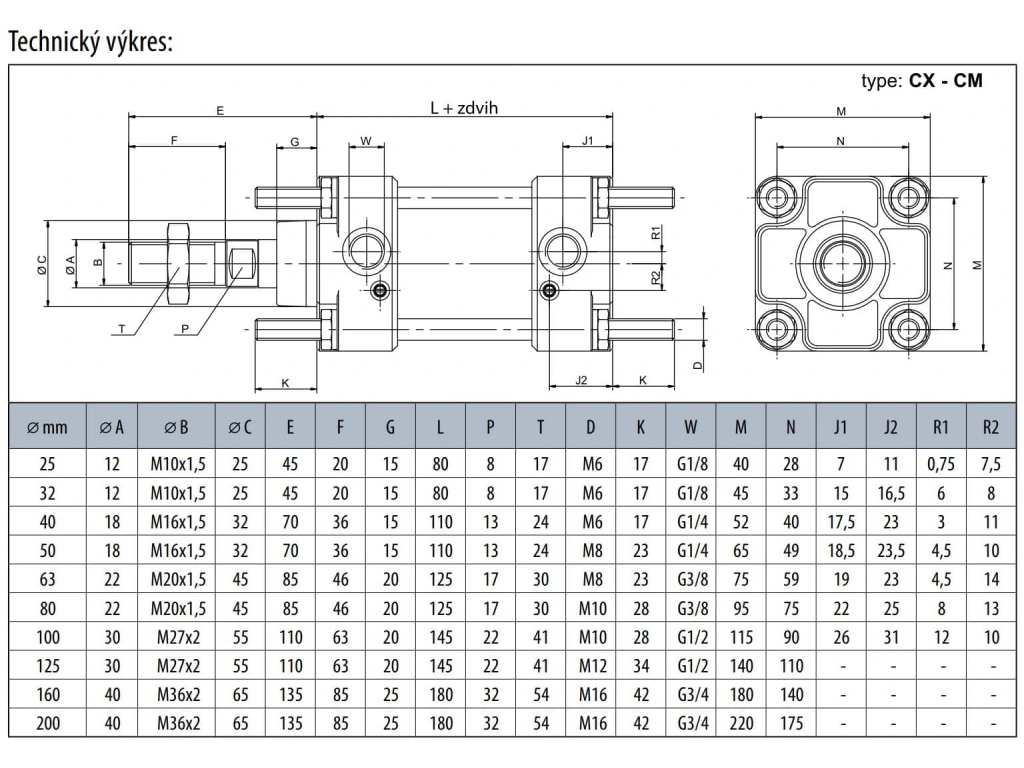

    Product detailed description

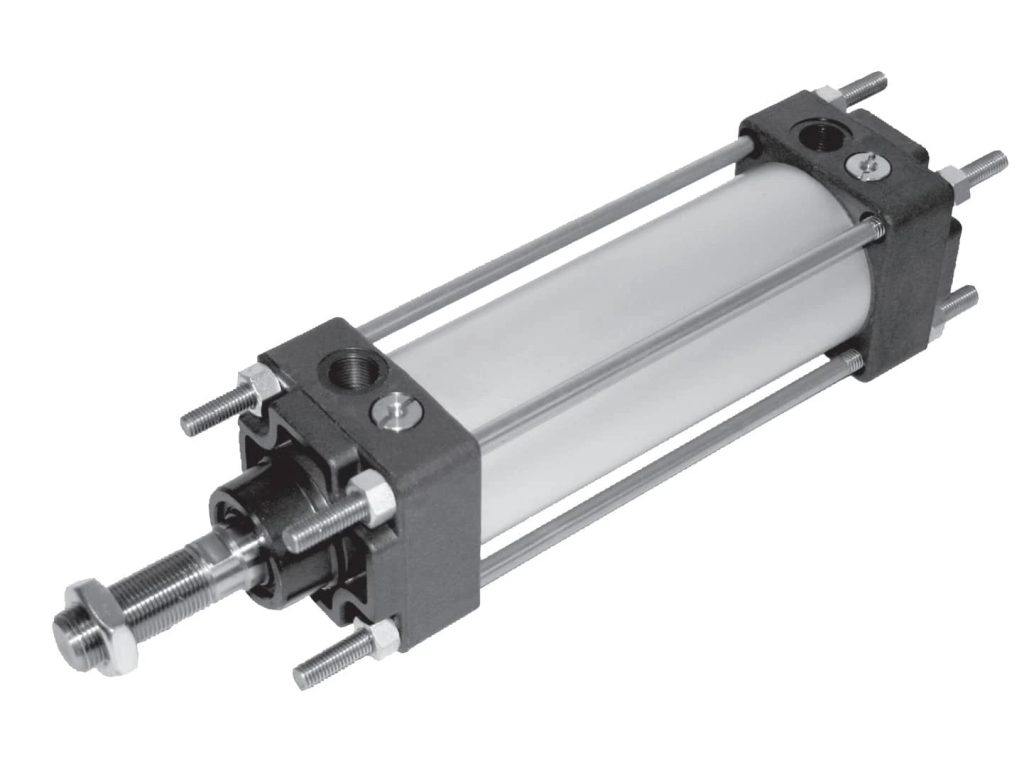

    Double acting cylinders CX 40 mm without magnet

    • diameter 40 mm
    • strokes 10 - 2500 mm
    • connection via 1/4" thread
    • pressure 1 - 10 bar

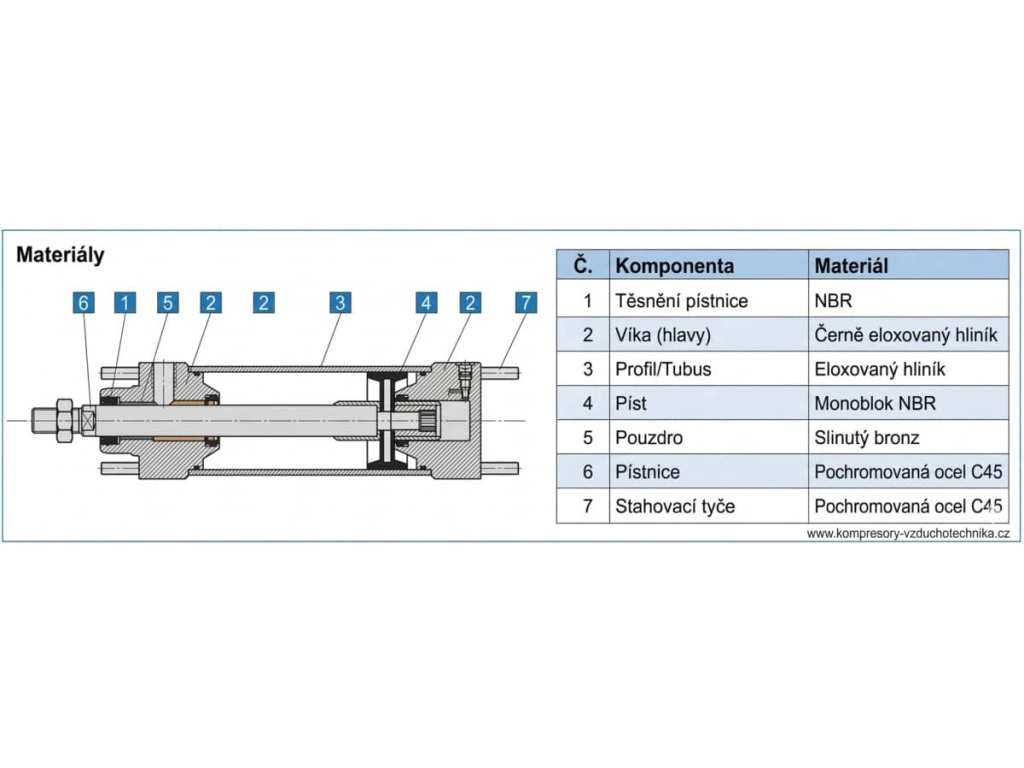

    • made of aluminium and C45 steel

    Additional parameters

    Category: Profiled cylinders CX and CM according to CNOMO
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/4"
    Damping length: 28 mm
    Magnet: without magnet
    Piston rod material: C45 steel
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 40 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 679 N
    Cylinder type: Profile
    Stroke selection: 10 - 2500 mm
    Connecting rod thread: M16 x 1.5
    Minimální tlak: 1 bar

    Be the first who will post an article to this item!

    Do not fill out this field:

    Be the first who will post an article to this item!

    Do not fill out this field:

    Security check

    Advanced Pneumatic Industries - Pneumatic components for automation technology

    A wide range of products complements our extensive experience

    One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

    		 api-provozovna
    API

    Quality certificate at a good price

    For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

    The range of products offered by API is brought to you by our company Air Compressors here.
