    Double acting cylinders CX 100mm

    Code: 100/25CX 100/50CX 100/75CX 100/100CX 100/125CX 100/150CX 100/200CX 100/250CX 100/300CX 100/400CX 100/500CX 100/600CX 100/700CX 100/800CX 100/900CX 100/1000CX Choose variant
    Not rated
    Brand: A.P.I.
    10 934 Kč 11 104 Kč 11 314 Kč 11 450 Kč 11 625 Kč 11 797 Kč 12 142 Kč 12 488 Kč 12 834 Kč 13 521 Kč 14 213 Kč 14 904 Kč 15 596 Kč 16 284 Kč 16 975 Kč 17 667 Kč from 10 934 Kč –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % up to –5 %
    Double acting cylinders CX 100mm
    10 934 Kč 11 104 Kč 11 314 Kč 11 450 Kč 11 625 Kč 11 797 Kč 12 142 Kč 12 488 Kč 12 834 Kč 13 521 Kč 14 213 Kč 14 904 Kč 15 596 Kč 16 284 Kč 16 975 Kč 17 667 Kč from 10 934 Kč –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % up to –5 % 10 387 Kč / pcs 10 549 Kč / pcs 10 748 Kč / pcs 10 878 Kč / pcs 11 044 Kč / pcs 11 207 Kč / pcs 11 535 Kč / pcs 11 864 Kč / pcs 12 192 Kč / pcs 12 845 Kč / pcs 13 502 Kč / pcs 14 159 Kč / pcs 14 817 Kč / pcs 15 469 Kč / pcs 16 126 Kč / pcs 16 784 Kč / pcs from 10 387 Kč / pcs 8 584 Kč excl. VAT 8 718 Kč excl. VAT 8 883 Kč excl. VAT 8 990 Kč excl. VAT 9 127 Kč excl. VAT 9 262 Kč excl. VAT 9 533 Kč excl. VAT 9 805 Kč excl. VAT 10 076 Kč excl. VAT 10 616 Kč excl. VAT 11 159 Kč excl. VAT 11 702 Kč excl. VAT 12 245 Kč excl. VAT 12 784 Kč excl. VAT 13 327 Kč excl. VAT 13 871 Kč excl. VAT from 8 584 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 Choose variant

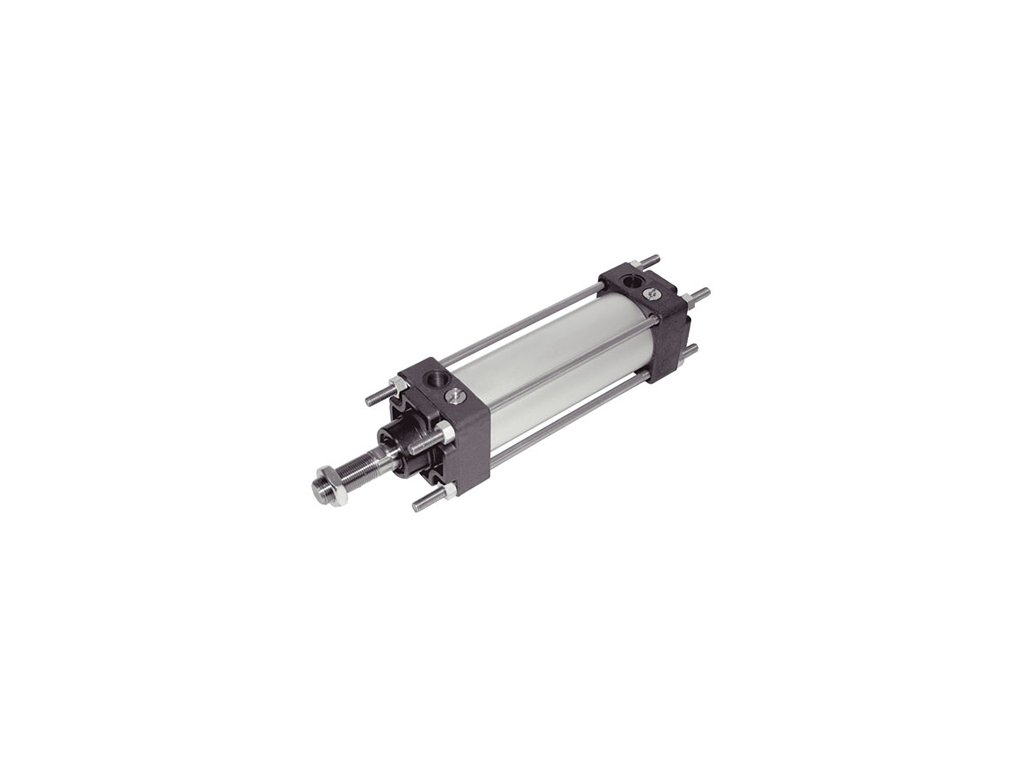

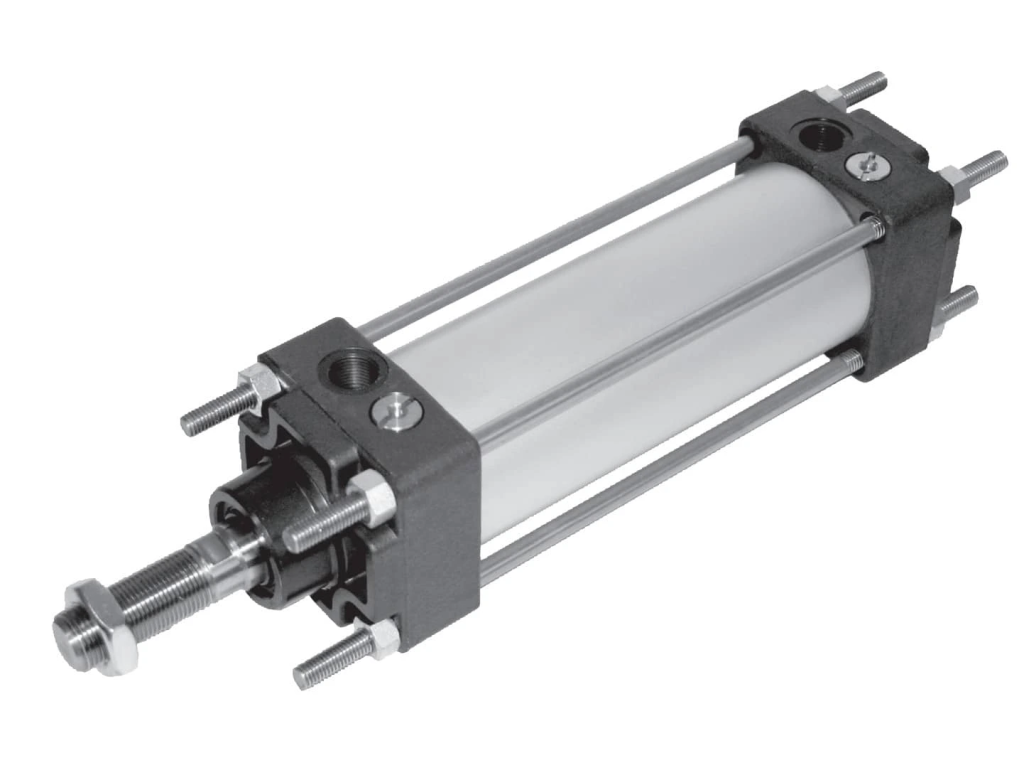

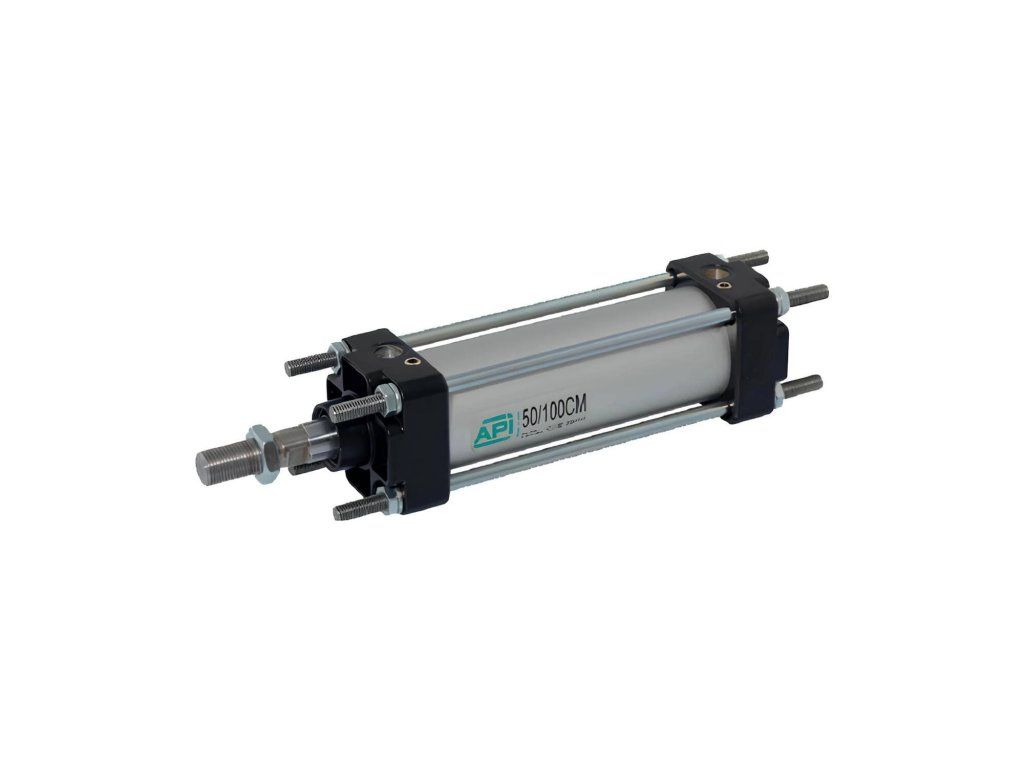

    Double-acting cylinder CX 100 mm diameter without magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup rods. Made of aluminium and C45 steel.

    Detailed information

    Product detailed description

    Double acting cylinders CX 100 mm without magnet

    • diameter 100 mm
    • strokes 10 - 2500 mm
    • connection via 1/2" thread
    • pressure 1 - 10 bar

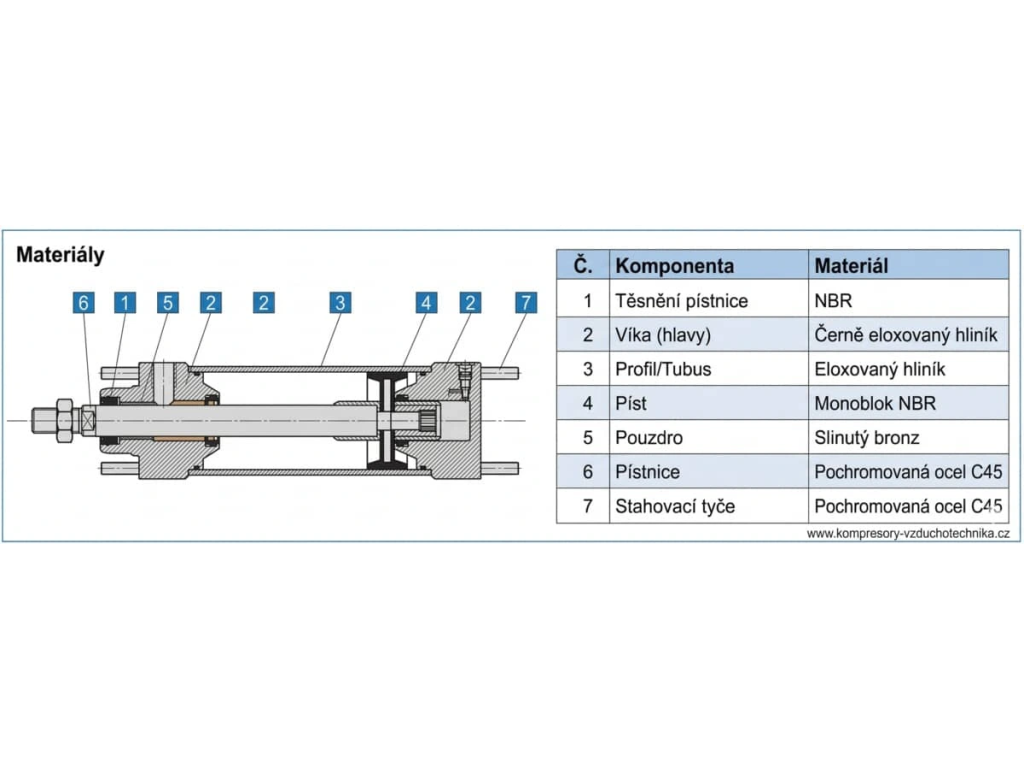

    • made of aluminium and C45 steel

    Additional parameters

    Category: Profiled cylinders CX and CM according to CNOMO
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/2"
    Damping length: 38 mm
    Magnet: without magnet
    Piston rod material: C45 steel
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 100 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 4240 N
    Cylinder type: Profile
    Stroke selection: 10 - 2500 mm
    Connecting rod thread: M27 x 2
    Minimální tlak: 1 bar
