    Double acting cylinders CM 80mm

    Code: 80/25CM 80/50CM 80/80CM 80/100CM 80/125CM 80/150CM 80/160CM 80/200CM 80/250CM 80/300CM 80/320CM 80/400CM 80/450CM 80/500CM 80/550CM 80/600CM 80/650CM 80/700CM 80/750CM 80/800CM 80/850CM 80/900CM 80/950CM 80/1000CM Choose variant
    Tip
    Not rated
    Brand: A.P.I.
    7 863 Kč 7 997 Kč 8 155 Kč 8 264 Kč 8 397 Kč 8 531 Kč 8 585 Kč 8 798 Kč 9 065 Kč 9 332 Kč 9 436 Kč 9 867 Kč 10 130 Kč 10 397 Kč 10 664 Kč 10 931 Kč 11 199 Kč 11 466 Kč 11 733 Kč 12 000 Kč 12 267 Kč 12 534 Kč 12 802 Kč 13 069 Kč from 7 863 Kč –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % up to –5 %
    Double acting cylinders CM 80mm
    7 863 Kč 7 997 Kč 8 155 Kč 8 264 Kč 8 397 Kč 8 531 Kč 8 585 Kč 8 798 Kč 9 065 Kč 9 332 Kč 9 436 Kč 9 867 Kč 10 130 Kč 10 397 Kč 10 664 Kč 10 931 Kč 11 199 Kč 11 466 Kč 11 733 Kč 12 000 Kč 12 267 Kč 12 534 Kč 12 802 Kč 13 069 Kč from 7 863 Kč –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % up to –5 % 7 470 Kč / pcs 7 597 Kč / pcs 7 747 Kč / pcs 7 851 Kč / pcs 7 977 Kč / pcs 8 104 Kč / pcs 8 156 Kč / pcs 8 358 Kč / pcs 8 612 Kč / pcs 8 866 Kč / pcs 8 964 Kč / pcs 9 374 Kč / pcs 9 623 Kč / pcs 9 877 Kč / pcs 10 131 Kč / pcs 10 385 Kč / pcs 10 639 Kč / pcs 10 892 Kč / pcs 11 146 Kč / pcs 11 400 Kč / pcs 11 654 Kč / pcs 11 908 Kč / pcs 12 162 Kč / pcs 12 415 Kč / pcs from 7 470 Kč / pcs 6 174 Kč excl. VAT 6 279 Kč excl. VAT 6 402 Kč excl. VAT 6 488 Kč excl. VAT 6 593 Kč excl. VAT 6 698 Kč excl. VAT 6 740 Kč excl. VAT 6 907 Kč excl. VAT 7 117 Kč excl. VAT 7 327 Kč excl. VAT 7 408 Kč excl. VAT 7 747 Kč excl. VAT 7 953 Kč excl. VAT 8 163 Kč excl. VAT 8 373 Kč excl. VAT 8 583 Kč excl. VAT 8 793 Kč excl. VAT 9 002 Kč excl. VAT 9 212 Kč excl. VAT 9 421 Kč excl. VAT 9 631 Kč excl. VAT 9 841 Kč excl. VAT 10 051 Kč excl. VAT 10 260 Kč excl. VAT from 6 174 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
    Delivery offer

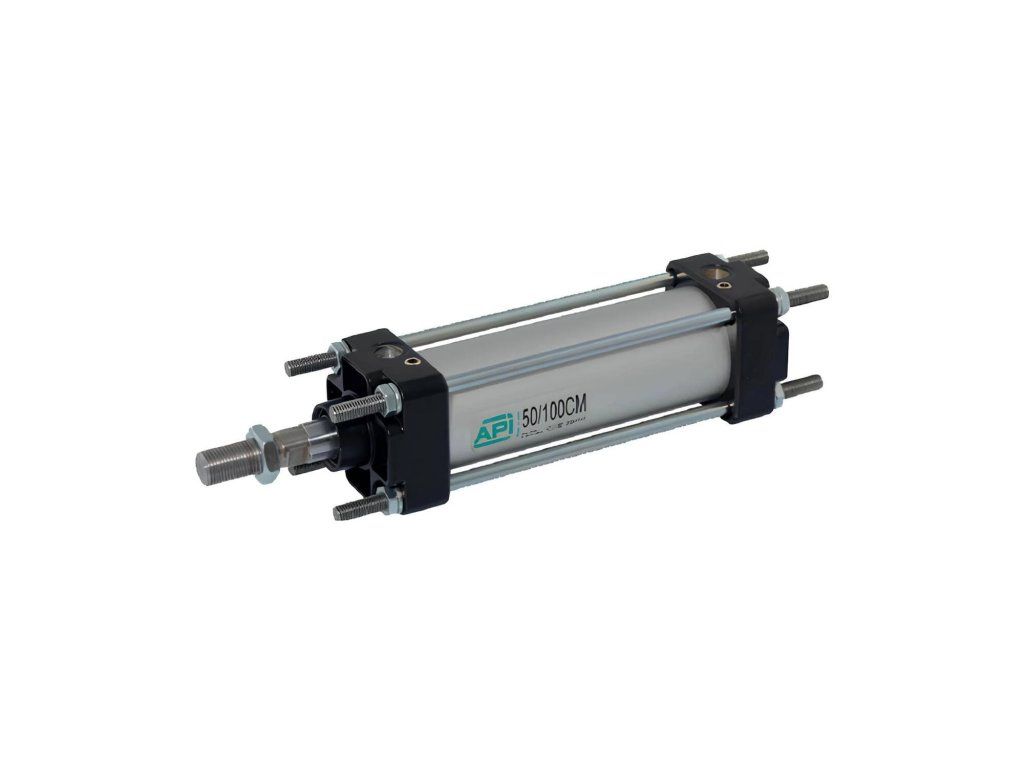

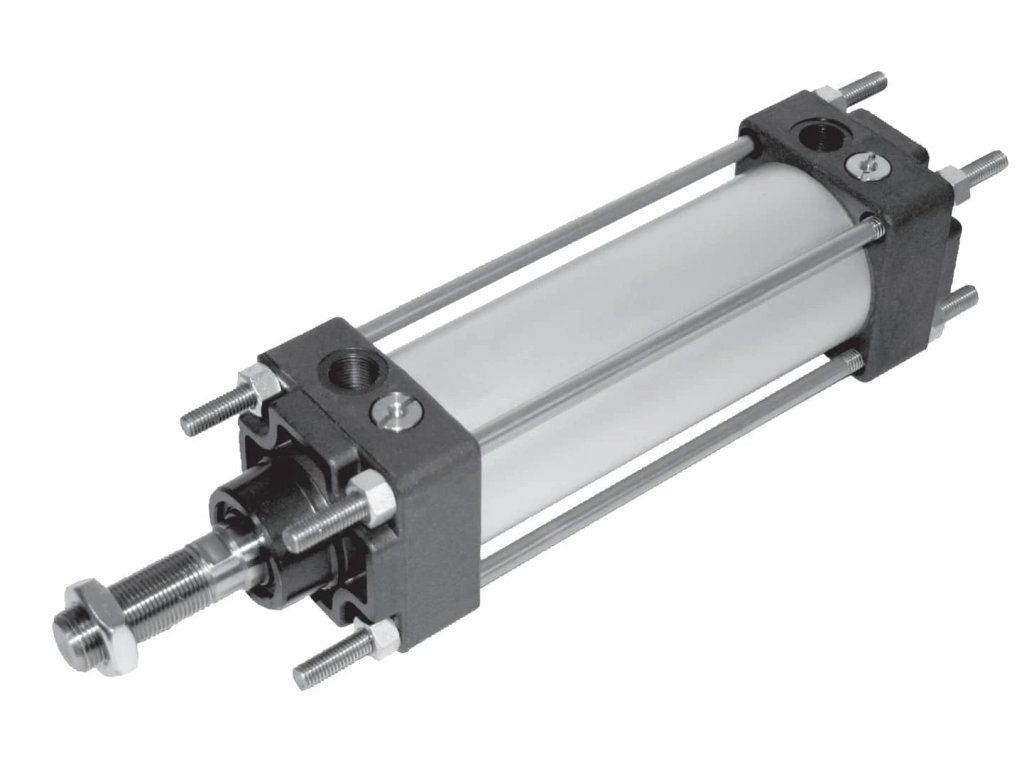

    Double-acting cylinder CM 80 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup rods. Made of aluminium and C45 steel.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

    Double acting cylinders CM 80 mm with magnet

    • diameter 80 mm
    • strokes 10 - 2500 mm
    • connection via 3/8" thread
    • pressure 1 - 10 bar

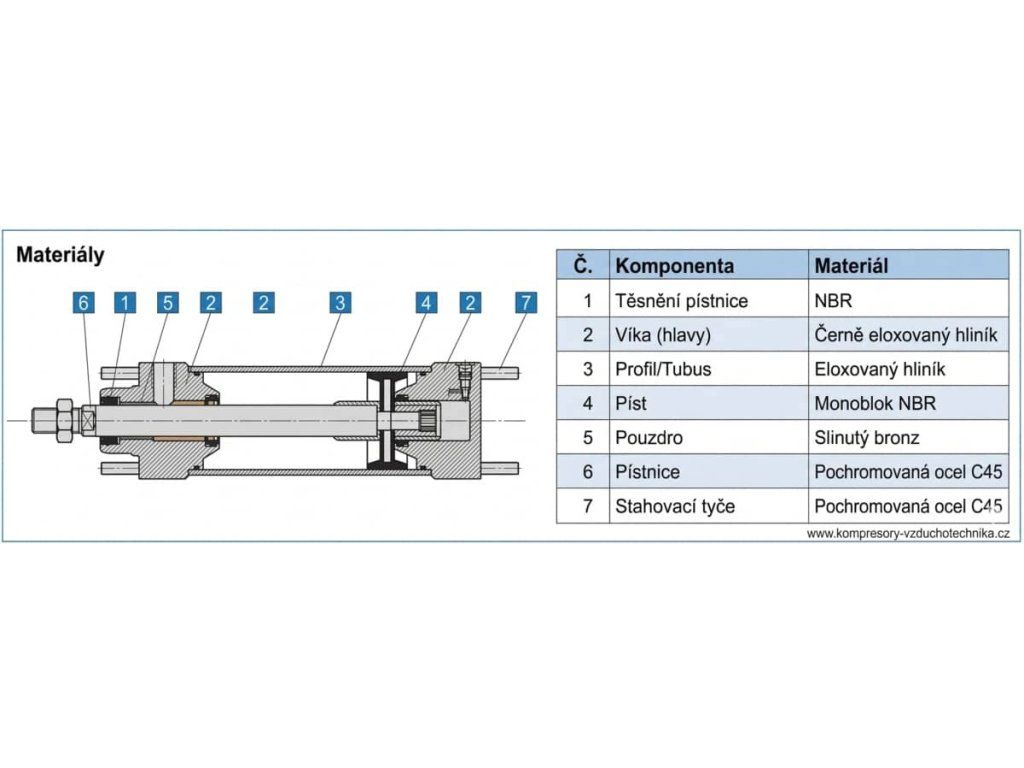

    • made of aluminium and C45 steel

    Additional parameters

    Category: Profiled cylinders CX and CM according to CNOMO
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 3/8"
    Damping length: 34 mm
    Magnet: with a magnet
    Piston rod material: C45 steel
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 80 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 2710 N
    Cylinder type: Profile
    Stroke selection: 10 - 2500 mm
    Connecting rod thread: M20 x 1.5
    Minimální tlak: 1 bar
