    Home / Valves and automation / Cylinders and accessories; single-acting and double-acting / Profiled cylinders CX and CM; according to CNOMO / Double acting cylinders CM 63mm

    Double acting cylinders CM 63mm

    Code: 63/25CM 63/50CM 63/80CM 63/100CM 63/125CM 63/150CM 63/160CM 63/200CM 63/250CM 63/300CM 63/320CM 63/400CM 63/450CM 63/500CM 63/550CM 63/600CM 63/650CM 63/700CM 63/750CM 63/800CM 63/850CM 63/900CM 63/950CM 63/1000CM Choose variant
    Tip
    Not rated
    Brand: A.P.I.
    6 128 Kč 6 239 Kč 6 369 Kč 7 120 Kč 6 567 Kč 6 676 Kč 6 720 Kč 6 894 Kč 7 112 Kč 7 329 Kč 7 418 Kč 7 769 Kč 7 987 Kč 8 204 Kč 8 422 Kč 8 640 Kč 8 862 Kč 9 080 Kč 9 298 Kč 9 516 Kč 9 734 Kč 9 951 Kč 10 175 Kč 10 392 Kč from 6 128 Kč –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –4 % –5 % –5 % up to –5 %
    Double acting cylinders CM 63mm
    6 128 Kč 6 239 Kč 6 369 Kč 7 120 Kč 6 567 Kč 6 676 Kč 6 720 Kč 6 894 Kč 7 112 Kč 7 329 Kč 7 418 Kč 7 769 Kč 7 987 Kč 8 204 Kč 8 422 Kč 8 640 Kč 8 862 Kč 9 080 Kč 9 298 Kč 9 516 Kč 9 734 Kč 9 951 Kč 10 175 Kč 10 392 Kč from 6 128 Kč –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –4 % –5 % –5 % up to –5 % 5 822 Kč / pcs 5 927 Kč / pcs 6 050 Kč / pcs 6 764 Kč / pcs 6 238 Kč / pcs 6 342 Kč / pcs 6 384 Kč / pcs 6 549 Kč / pcs 6 756 Kč / pcs 6 962 Kč / pcs 7 047 Kč / pcs 7 380 Kč / pcs 7 588 Kč / pcs 7 794 Kč / pcs 8 001 Kč / pcs 8 208 Kč / pcs 8 419 Kč / pcs 8 626 Kč / pcs 8 833 Kč / pcs 9 040 Kč / pcs 9 248 Kč / pcs 9 454 Kč / pcs 9 666 Kč / pcs 9 872 Kč / pcs from 5 822 Kč / pcs 4 812 Kč excl. VAT 4 898 Kč excl. VAT 5 000 Kč excl. VAT 5 590 Kč excl. VAT 5 155 Kč excl. VAT 5 241 Kč excl. VAT 5 276 Kč excl. VAT 5 412 Kč excl. VAT 5 583 Kč excl. VAT 5 754 Kč excl. VAT 5 824 Kč excl. VAT 6 099 Kč excl. VAT 6 271 Kč excl. VAT 6 441 Kč excl. VAT 6 612 Kč excl. VAT 6 783 Kč excl. VAT 6 958 Kč excl. VAT 7 129 Kč excl. VAT 7 300 Kč excl. VAT 7 471 Kč excl. VAT 7 643 Kč excl. VAT 7 813 Kč excl. VAT 7 988 Kč excl. VAT 8 159 Kč excl. VAT from 4 812 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
    Delivery offer
    Double-acting cylinder CM 63 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup rods. Made of aluminium and C45 steel.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

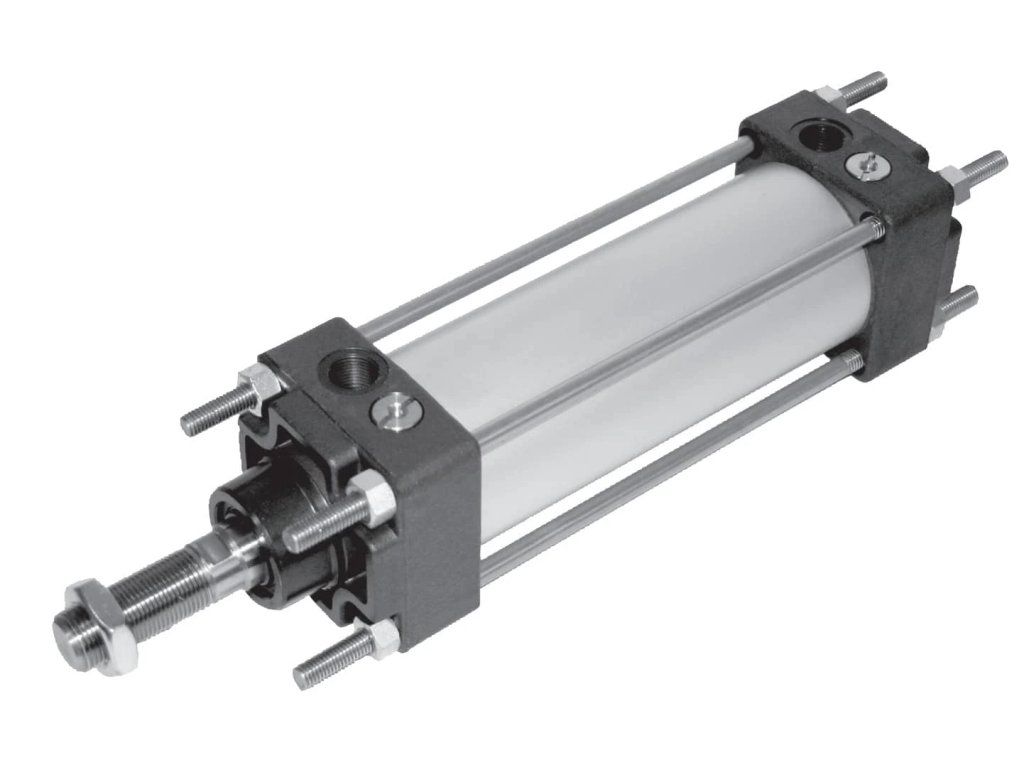

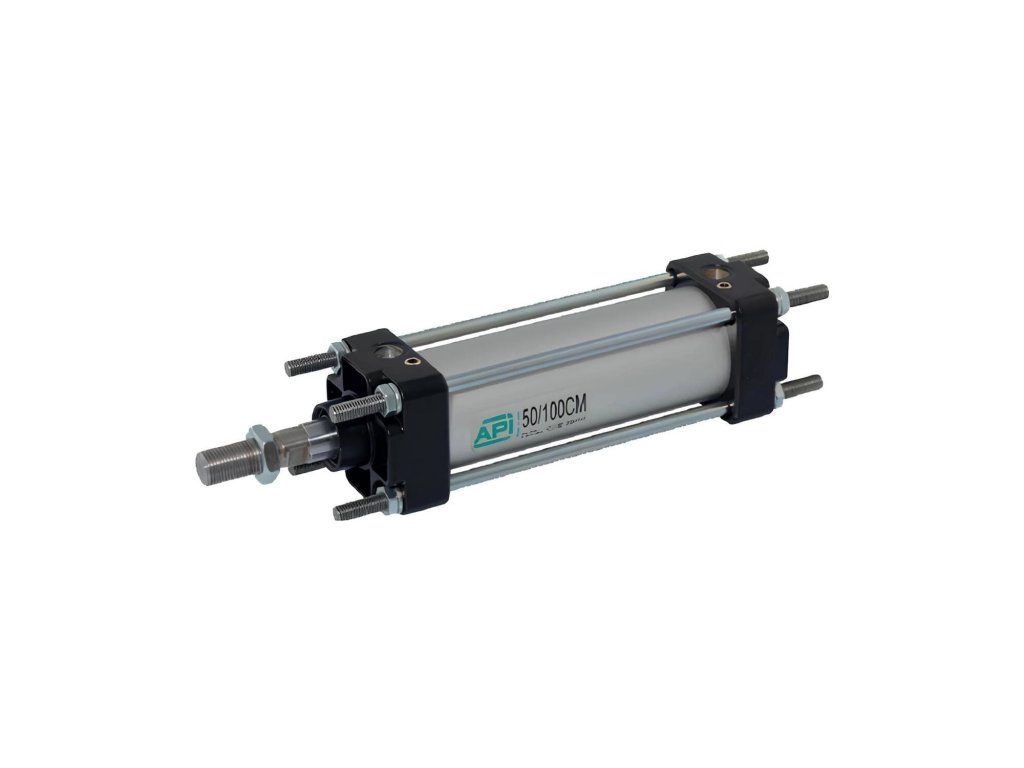

    Double acting cylinders CM 63 mm with magnet

    • diameter 63 mm
    • strokes 10 - 2500 mm
    • connection via 3/8" thread
    • pressure 1 - 10 bar

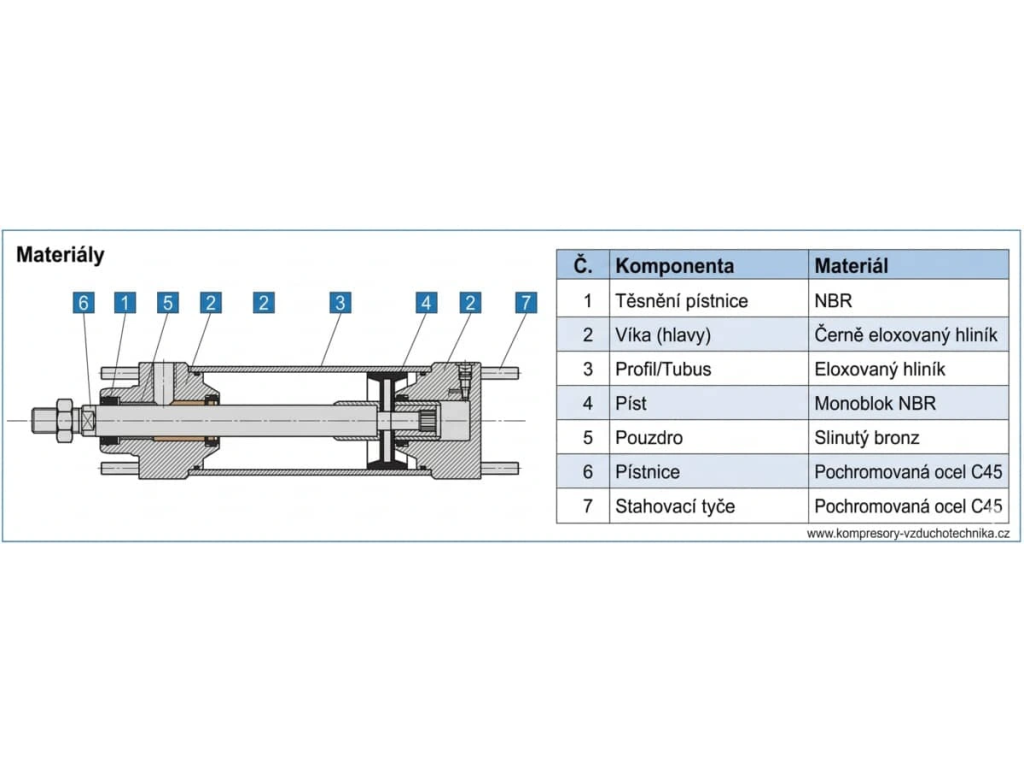

    • made of aluminium and C45 steel

    Additional parameters

    Category: Profiled cylinders CX and CM according to CNOMO
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 3/8"
    Damping length: 34 mm
    Magnet: with a magnet
    Piston rod material: C45 steel
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 63 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 1680 N
    Cylinder type: Profile
    Stroke selection: 10 - 2500 mm
    Connecting rod thread: M20 x 1.5
    Minimální tlak: 1 bar

    Be the first who will post an article to this item!

    Do not fill out this field:

    Be the first who will post an article to this item!

    Do not fill out this field:

    Security check

    Advanced Pneumatic Industries - Pneumatic components for automation technology

    A wide range of products complements our extensive experience

    One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

    		 api-provozovna
    API

    Quality certificate at a good price

    For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.
