    Double acting cylinders CM 50mm

    Code: 50/25CM 50/50CM 50/80CM 50/100CM 50/125CM 50/150CM 50/160CM 50/200CM 50/250CM 50/300CM 50/320CM 50/400CM 50/450CM 50/500CM 50/550CM 50/600CM 50/650CM 50/700CM 50/750CM 50/800CM 50/850CM 50/900CM 50/950CM 50/1000CM Choose variant
    Tip
    Not rated
    Brand: A.P.I.
    4 467 Kč 4 567 Kč 4 688 Kč 4 767 Kč 4 866 Kč 4 965 Kč 5 006 Kč 5 165 Kč 5 364 Kč 5 564 Kč 5 643 Kč 5 964 Kč 6 162 Kč 6 361 Kč 6 561 Kč 6 761 Kč 6 960 Kč 7 160 Kč 7 358 Kč 7 558 Kč 7 757 Kč 7 957 Kč 8 157 Kč 8 356 Kč from 4 467 Kč –4 % –4 % –5 % –5 % –4 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % up to –5 %
    Double acting cylinders CM 50mm
    4 467 Kč 4 567 Kč 4 688 Kč 4 767 Kč 4 866 Kč 4 965 Kč 5 006 Kč 5 165 Kč 5 364 Kč 5 564 Kč 5 643 Kč 5 964 Kč 6 162 Kč 6 361 Kč 6 561 Kč 6 761 Kč 6 960 Kč 7 160 Kč 7 358 Kč 7 558 Kč 7 757 Kč 7 957 Kč 8 157 Kč 8 356 Kč from 4 467 Kč –4 % –4 % –5 % –5 % –4 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % up to –5 % 4 244 Kč / pcs 4 339 Kč / pcs 4 453 Kč / pcs 4 528 Kč / pcs 4 623 Kč / pcs 4 717 Kč / pcs 4 756 Kč / pcs 4 907 Kč / pcs 5 096 Kč / pcs 5 286 Kč / pcs 5 361 Kč / pcs 5 666 Kč / pcs 5 854 Kč / pcs 6 043 Kč / pcs 6 233 Kč / pcs 6 423 Kč / pcs 6 612 Kč / pcs 6 802 Kč / pcs 6 991 Kč / pcs 7 180 Kč / pcs 7 369 Kč / pcs 7 559 Kč / pcs 7 749 Kč / pcs 7 938 Kč / pcs from 4 244 Kč / pcs 3 507 Kč excl. VAT 3 586 Kč excl. VAT 3 680 Kč excl. VAT 3 742 Kč excl. VAT 3 821 Kč excl. VAT 3 898 Kč excl. VAT 3 931 Kč excl. VAT 4 055 Kč excl. VAT 4 212 Kč excl. VAT 4 369 Kč excl. VAT 4 431 Kč excl. VAT 4 683 Kč excl. VAT 4 838 Kč excl. VAT 4 994 Kč excl. VAT 5 151 Kč excl. VAT 5 308 Kč excl. VAT 5 464 Kč excl. VAT 5 621 Kč excl. VAT 5 778 Kč excl. VAT 5 934 Kč excl. VAT 6 090 Kč excl. VAT 6 247 Kč excl. VAT 6 404 Kč excl. VAT 6 560 Kč excl. VAT from 3 507 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
    Delivery offer

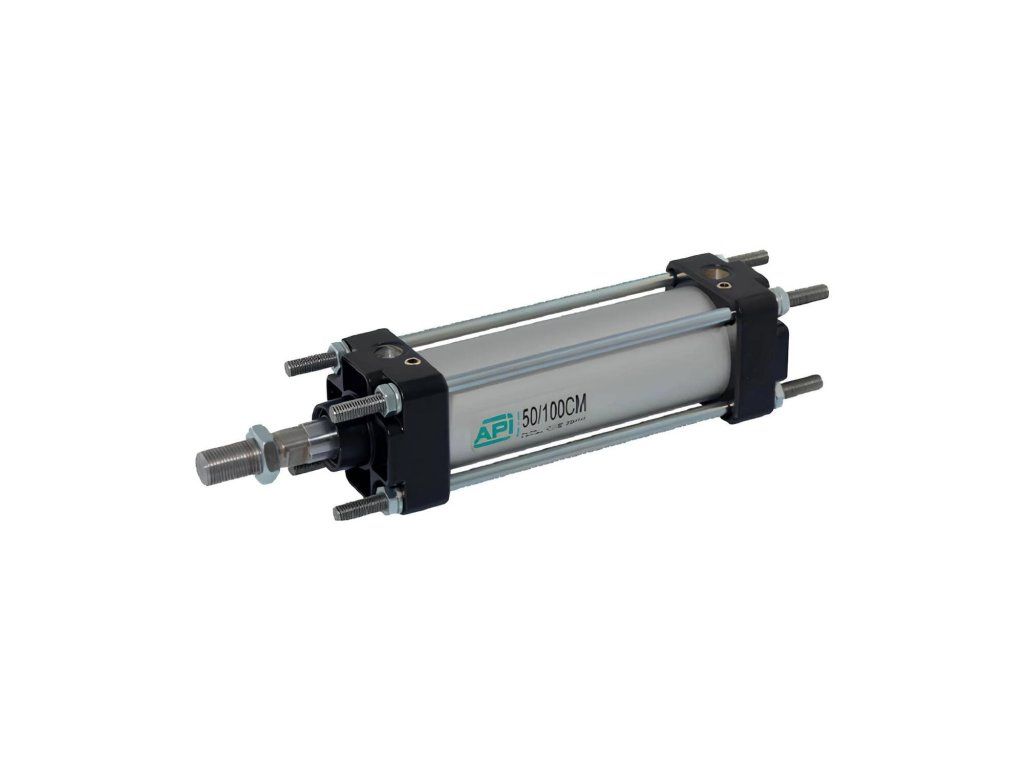

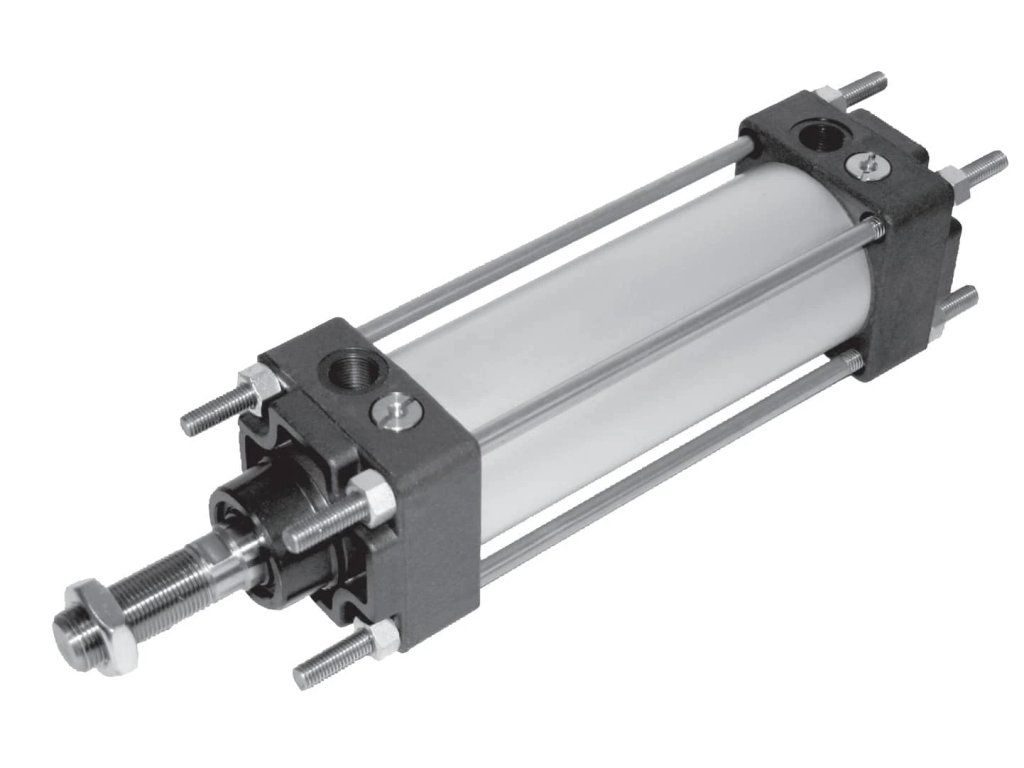

    Double-acting cylinder CM 50 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup rods. Made of aluminium and C45 steel.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

    Double acting cylinders CM 50 mm with magnet

    • diameter 50 mm
    • strokes 10 - 2500 mm
    • connection via 1/4" thread
    • pressure 1 - 10 bar

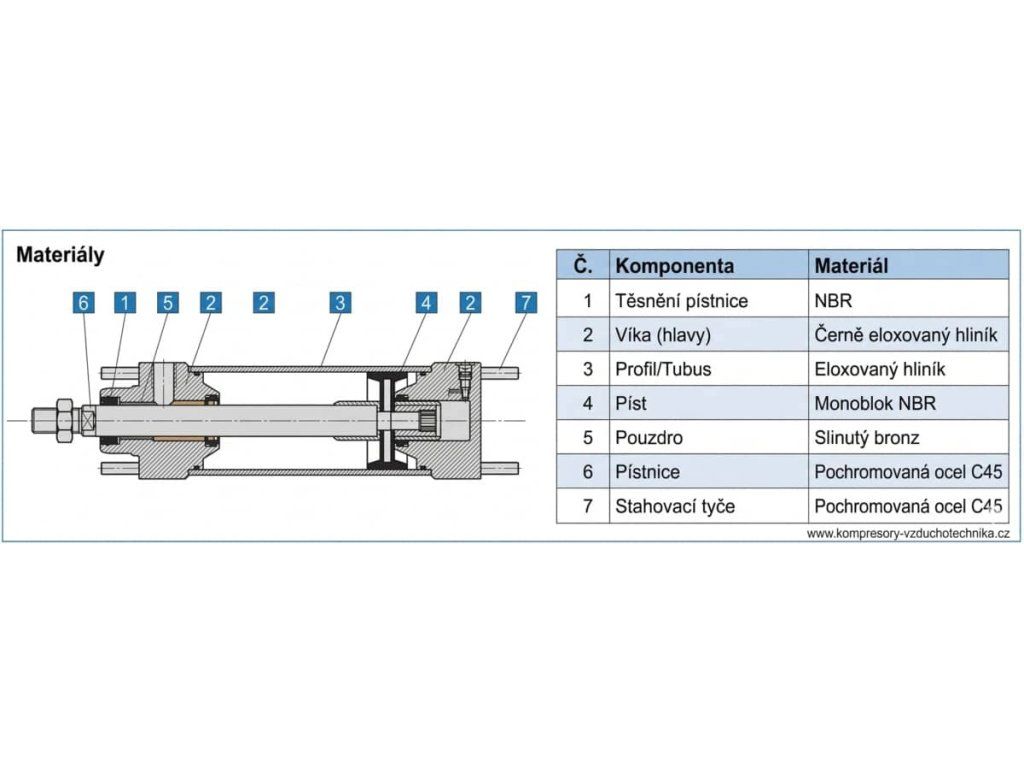

    • made of aluminium and C45 steel

    Additional parameters

    Category: Profiled cylinders CX and CM according to CNOMO
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/4"
    Damping length: 28 mm
    Magnet: with a magnet
    Piston rod material: C45 steel
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 50 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 1060 N
    Cylinder type: Profile
    Stroke selection: 10 - 2500 mm
    Connecting rod thread: M16 x 1.5
    Minimální tlak: 1 bar
