    Double acting cylinders CM 40mm

    Code: 40/25CM 40/50CM 40/80CM 40/100CM 40/125CM 40/150CM 40/160CM 40/200CM 40/250CM 40/300CM 40/320CM 40/400CM 40/450CM 40/500CM 40/550CM 40/600CM 40/650CM 40/700CM 40/750CM 40/800CM 40/850CM 40/900CM 40/950CM 40/1000CM Choose variant
    Tip
    Not rated
    Brand: A.P.I.
    3 924 Kč 4 014 Kč 4 122 Kč 4 190 Kč 4 279 Kč 4 368 Kč 4 404 Kč 4 546 Kč 4 724 Kč 4 902 Kč 4 973 Kč 5 257 Kč 5 434 Kč 5 613 Kč 5 790 Kč 5 969 Kč 6 146 Kč 6 323 Kč 6 501 Kč 6 679 Kč 6 857 Kč 7 035 Kč 7 213 Kč 7 389 Kč from 3 924 Kč –4 % –5 % –5 % –4 % –5 % –4 % –5 % –4 % –5 % –5 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % up to –5 %
    Double acting cylinders CM 40mm
    3 924 Kč 4 014 Kč 4 122 Kč 4 190 Kč 4 279 Kč 4 368 Kč 4 404 Kč 4 546 Kč 4 724 Kč 4 902 Kč 4 973 Kč 5 257 Kč 5 434 Kč 5 613 Kč 5 790 Kč 5 969 Kč 6 146 Kč 6 323 Kč 6 501 Kč 6 679 Kč 6 857 Kč 7 035 Kč 7 213 Kč 7 389 Kč from 3 924 Kč –4 % –5 % –5 % –4 % –5 % –4 % –5 % –4 % –5 % –5 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % up to –5 % 3 728 Kč / pcs 3 813 Kč / pcs 3 916 Kč / pcs 3 981 Kč / pcs 4 065 Kč / pcs 4 150 Kč / pcs 4 184 Kč / pcs 4 319 Kč / pcs 4 488 Kč / pcs 4 657 Kč / pcs 4 725 Kč / pcs 4 995 Kč / pcs 5 162 Kč / pcs 5 332 Kč / pcs 5 500 Kč / pcs 5 670 Kč / pcs 5 838 Kč / pcs 6 007 Kč / pcs 6 176 Kč / pcs 6 345 Kč / pcs 6 514 Kč / pcs 6 683 Kč / pcs 6 852 Kč / pcs 7 020 Kč / pcs from 3 728 Kč / pcs 3 081 Kč excl. VAT 3 151 Kč excl. VAT 3 236 Kč excl. VAT 3 290 Kč excl. VAT 3 360 Kč excl. VAT 3 430 Kč excl. VAT 3 458 Kč excl. VAT 3 569 Kč excl. VAT 3 709 Kč excl. VAT 3 849 Kč excl. VAT 3 905 Kč excl. VAT 4 128 Kč excl. VAT 4 266 Kč excl. VAT 4 407 Kč excl. VAT 4 545 Kč excl. VAT 4 686 Kč excl. VAT 4 825 Kč excl. VAT 4 964 Kč excl. VAT 5 104 Kč excl. VAT 5 244 Kč excl. VAT 5 383 Kč excl. VAT 5 523 Kč excl. VAT 5 663 Kč excl. VAT 5 802 Kč excl. VAT from 3 081 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 13.01.2025 Choose variant

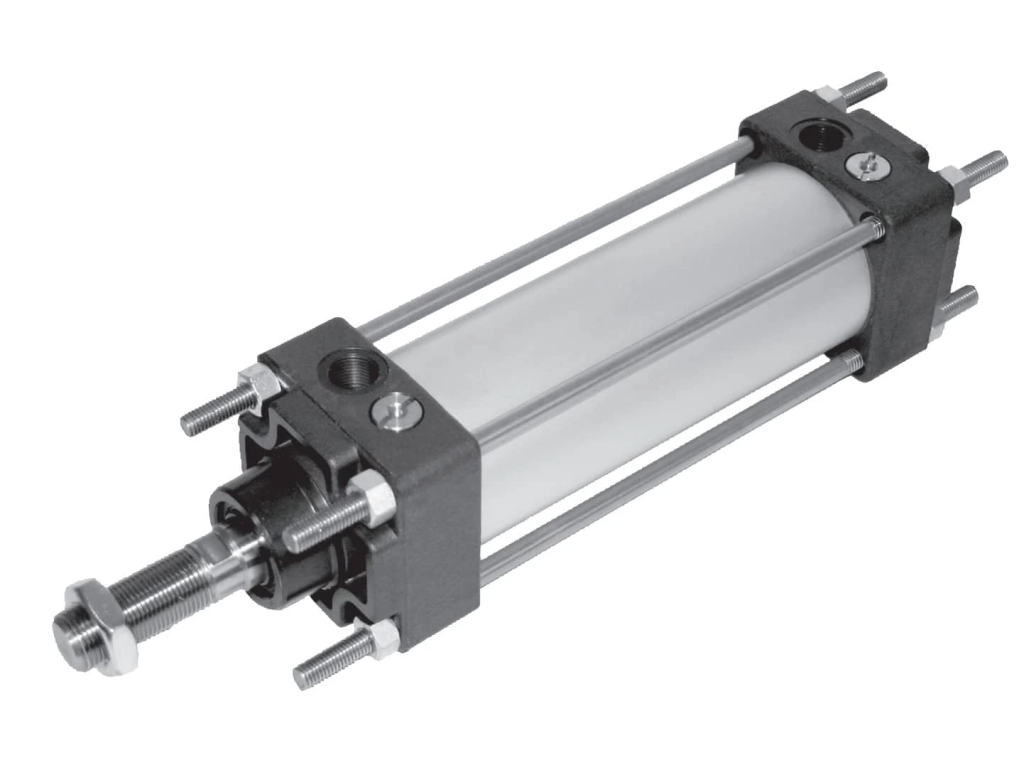

    Double-acting cylinder CM 40 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup rods. Made of aluminium and C45 steel.

    Detailed information

    Product detailed description

    Double acting cylinders CM 40 mm with magnet

    • diameter 40 mm
    • strokes 10 - 2500 mm
    • connection via 1/4" thread
    • pressure 1 - 10 bar

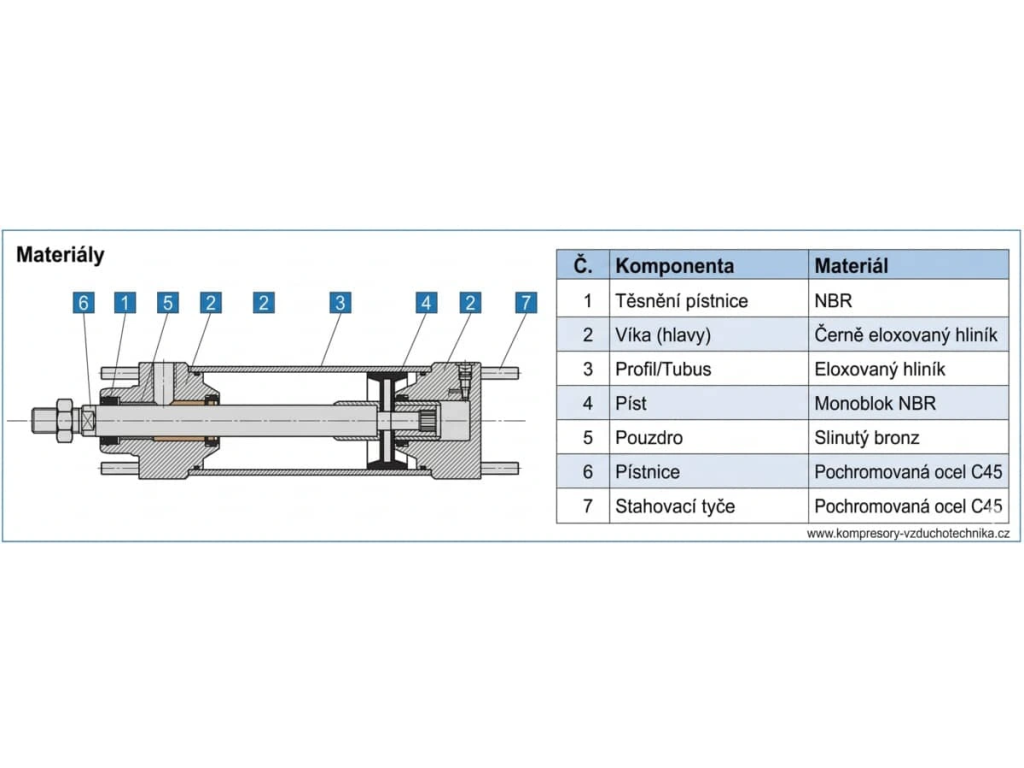

    • made of aluminium and C45 steel

    Additional parameters

    Category: Profiled cylinders CX and CM according to CNOMO
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/4"
    Damping length: 28 mm
    Magnet: with a magnet
    Piston rod material: C45 steel
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 40 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 679 N
    Cylinder type: Profile
    Stroke selection: 10 - 2500 mm
    Connecting rod thread: M16 x 1.5
    Minimální tlak: 1 bar

    Be the first who will post an article to this item!

    Do not fill out this field:

    Be the first who will post an article to this item!

    Do not fill out this field:

    Advanced Pneumatic Industries - Pneumatic components for automation technology

    A wide range of products complements our extensive experience

    One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

    		 api-provozovna
    API

    Quality certificate at a good price

    For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

    The range of products offered by API is brought to you by our company Air Compressors here.
