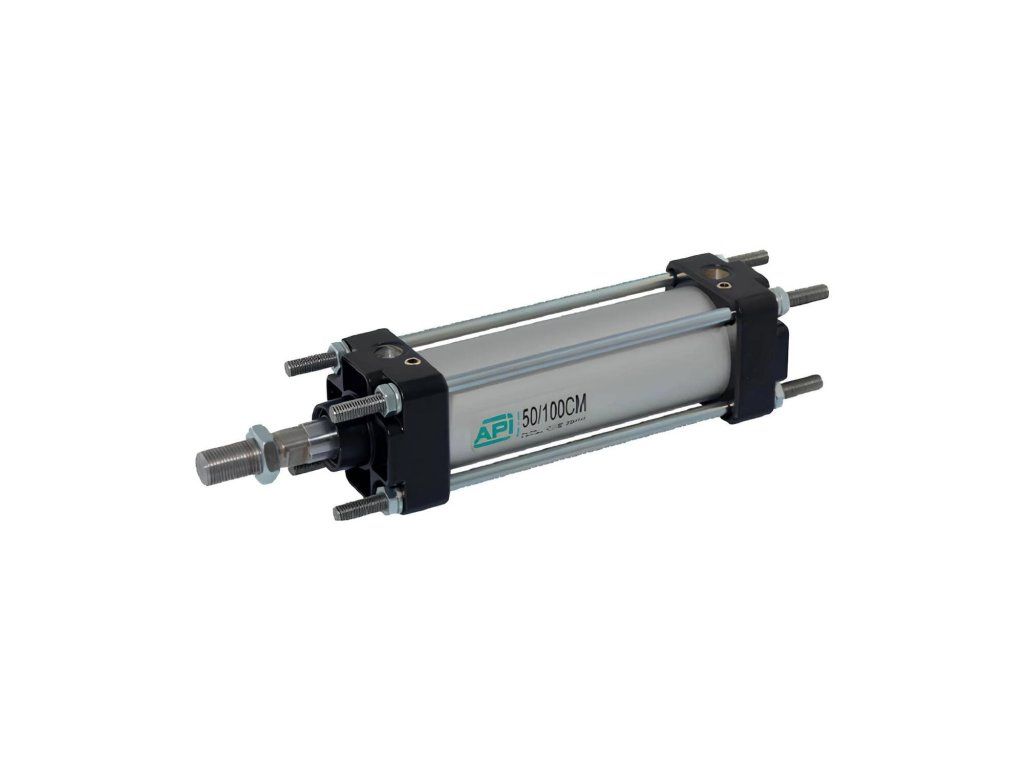

Double acting cylinders CM 100mm

Code: 100/25CM 100/50CM 100/80CM 100/100CM 100/125CM 100/150CM 100/160CM 100/200CM 100/250CM 100/300CM 100/320CM 100/400CM 100/450CM 100/500CM 100/550CM 100/600CM 100/650CM 100/700CM 100/750CM 100/800CM 100/850CM 100/900CM 100/950CM 100/1000CM Choose variant
Tip
Brand: A.P.I.
10 934 Kč 11 104 Kč 11 314 Kč 11 450 Kč 11 625 Kč 11 795 Kč 11 864 Kč 12 142 Kč 12 488 Kč 12 834 Kč 12 970 Kč 13 520 Kč 13 866 Kč 14 213 Kč 14 559 Kč 14 905 Kč 15 250 Kč 15 596 Kč 15 937 Kč 16 284 Kč 16 629 Kč 16 975 Kč 17 321 Kč 17 667 Kč from 10 934 Kč –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % up to –5 %
Double acting cylinders CM 100mm
10 934 Kč 11 104 Kč 11 314 Kč 11 450 Kč 11 625 Kč 11 795 Kč 11 864 Kč 12 142 Kč 12 488 Kč 12 834 Kč 12 970 Kč 13 520 Kč 13 866 Kč 14 213 Kč 14 559 Kč 14 905 Kč 15 250 Kč 15 596 Kč 15 937 Kč 16 284 Kč 16 629 Kč 16 975 Kč 17 321 Kč 17 667 Kč from 10 934 Kč –5 % –5 % –5 % –5 % –5 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % up to –5 % 10 387 Kč / pcs 10 549 Kč / pcs 10 748 Kč / pcs 10 878 Kč / pcs 11 044 Kč / pcs 11 206 Kč / pcs 11 271 Kč / pcs 11 535 Kč / pcs 11 864 Kč / pcs 12 192 Kč / pcs 12 321 Kč / pcs 12 844 Kč / pcs 13 173 Kč / pcs 13 502 Kč / pcs 13 831 Kč / pcs 14 160 Kč / pcs 14 488 Kč / pcs 14 817 Kč / pcs 15 141 Kč / pcs 15 469 Kč / pcs 15 797 Kč / pcs 16 126 Kč / pcs 16 455 Kč / pcs 16 784 Kč / pcs from 10 387 Kč / pcs 8 584 Kč excl. VAT 8 718 Kč excl. VAT 8 883 Kč excl. VAT 8 990 Kč excl. VAT 9 127 Kč excl. VAT 9 261 Kč excl. VAT 9 315 Kč excl. VAT 9 533 Kč excl. VAT 9 805 Kč excl. VAT 10 076 Kč excl. VAT 10 183 Kč excl. VAT 10 615 Kč excl. VAT 10 887 Kč excl. VAT 11 159 Kč excl. VAT 11 431 Kč excl. VAT 11 702 Kč excl. VAT 11 974 Kč excl. VAT 12 245 Kč excl. VAT 12 513 Kč excl. VAT 12 784 Kč excl. VAT 13 055 Kč excl. VAT 13 327 Kč excl. VAT 13 599 Kč excl. VAT 13 871 Kč excl. VAT from 8 584 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Cylinder stroke
Chosen variant is not available. Reset selected parameters.
Delivery to:
10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 10.12.2024 Choose variant

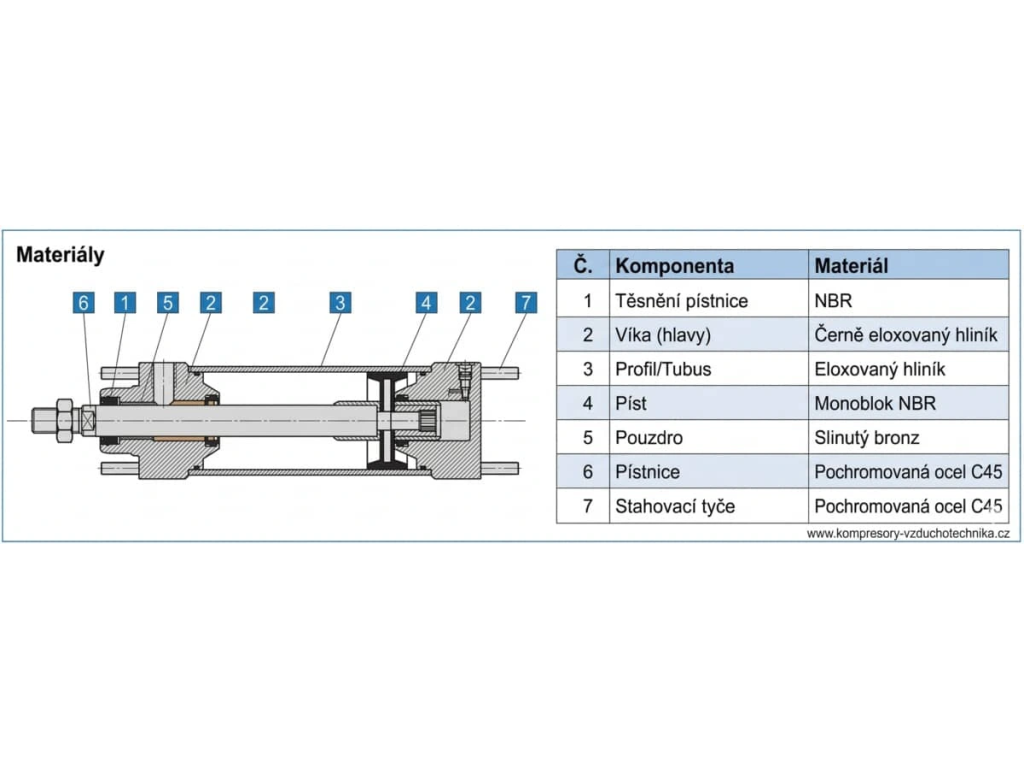

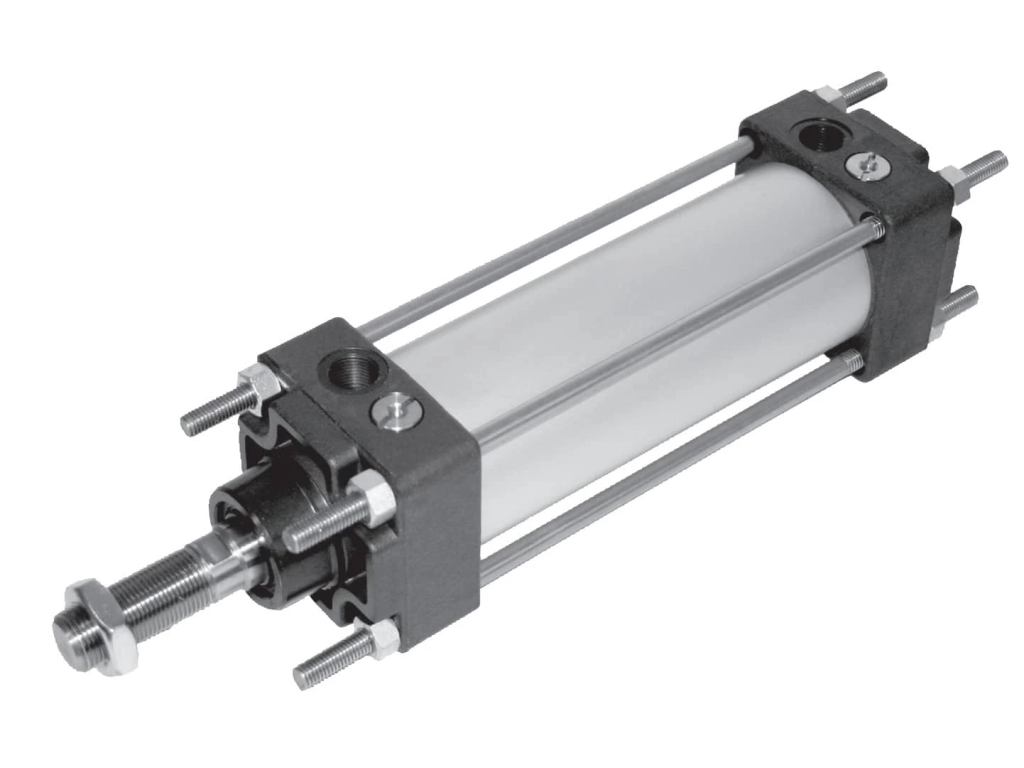

Double-acting CM cylinder of 100 mm diameter with magnet. Compliant with CNOMO 06.07.00. Equipped with adjustable damping in the end positions. The lids are connected by stirrup rods. Made of aluminium and C45 steel.

Detailed information

Product detailed description

Double acting cylinders CM 100 mm with magnet

  • diameter 100 mm
  • strokes 10 - 2500 mm
  • connection via 1/2" thread
  • pressure 1 - 10 bar
  • made of aluminium and C45 steel

Additional parameters

Category: Profiled cylinders CX and CM according to CNOMO
Version: Double acting cylinders
Pressure: 10 bars
Connecting: 1/2"
Damping length: 38 mm
Magnet: with a magnet
Piston rod material: C45 steel
Profile material: Aluminium
Lid material: Aluminium
Average: 100 mm
Temperature: -20/+80°C
Seals: NBR/PU
Cylinder thrust: 4240 N
Cylinder type: Profile
Stroke selection: 10 - 2500 mm
Connecting rod thread: M27 x 2
Minimální tlak: 1 bar
