    Double acting pneumatic cylinder AMA 100 mm

    Code: 100/25AMA 100/50AMA 100/80AMA 100/100AMA 100/125AMA 100/150AMA 100/160AMA 100/180AMA 100/200AMA 100/250AMA 100/300AMA 100/320AMA 100/400AMA 100/450AMA 100/500AMA 100/600AMA 100/700AMA 100/800AMA 100/900AMA 100/1000AMA Choose variant
    Tip
    Not rated
    Brand: A.P.I.
    6 157 Kč 6 378 Kč 6 646 Kč 6 823 Kč 7 045 Kč 7 267 Kč 7 355 Kč 7 710 Kč 7 710 Kč 8 155 Kč 8 599 Kč 8 777 Kč 9 486 Kč 9 931 Kč 10 375 Kč 11 263 Kč 12 151 Kč 13 039 Kč 13 926 Kč 14 814 Kč from 6 157 Kč –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 %
    ama valce automatizace vzduch tlak CYLINDERS API
    6 157 Kč 6 378 Kč 6 646 Kč 6 823 Kč 7 045 Kč 7 267 Kč 7 355 Kč 7 710 Kč 7 710 Kč 8 155 Kč 8 599 Kč 8 777 Kč 9 486 Kč 9 931 Kč 10 375 Kč 11 263 Kč 12 151 Kč 13 039 Kč 13 926 Kč 14 814 Kč from 6 157 Kč –5 % –5 % –5 % –5 % –5 % –5 % –5 % –4 % –4 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % up to –5 % 5 849 Kč / pcs 6 059 Kč / pcs 6 313 Kč / pcs 6 482 Kč / pcs 6 693 Kč / pcs 6 903 Kč / pcs 6 987 Kč / pcs 7 325 Kč / pcs 7 325 Kč / pcs 7 747 Kč / pcs 8 169 Kč / pcs 8 338 Kč / pcs 9 012 Kč / pcs 9 434 Kč / pcs 9 856 Kč / pcs 10 699 Kč / pcs 11 543 Kč / pcs 12 387 Kč / pcs 13 230 Kč / pcs 14 073 Kč / pcs from 5 849 Kč / pcs 4 834 Kč excl. VAT 5 007 Kč excl. VAT 5 217 Kč excl. VAT 5 357 Kč excl. VAT 5 531 Kč excl. VAT 5 705 Kč excl. VAT 5 774 Kč excl. VAT 6 054 Kč excl. VAT 6 054 Kč excl. VAT 6 402 Kč excl. VAT 6 751 Kč excl. VAT 6 891 Kč excl. VAT 7 448 Kč excl. VAT 7 797 Kč excl. VAT 8 145 Kč excl. VAT 8 842 Kč excl. VAT 9 540 Kč excl. VAT 10 237 Kč excl. VAT 10 934 Kč excl. VAT 11 631 Kč excl. VAT from 4 834 Kč excl. VAT
    up to 14 days up to 14 days Stock (3 pcs) Stock (3 pcs) up to 14 days Stock (2 pcs) Stock (2 pcs) Stock (3 pcs) up to 14 days Stock (2 pcs) Stock (2 pcs) Stock (2 pcs) Stock (2 pcs) up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    11.02.2025 11.02.2025 23.01.2025 23.01.2025 11.02.2025 23.01.2025 23.01.2025 23.01.2025 11.02.2025 23.01.2025 23.01.2025 23.01.2025 23.01.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 11.02.2025 Choose variant
    Delivery offer

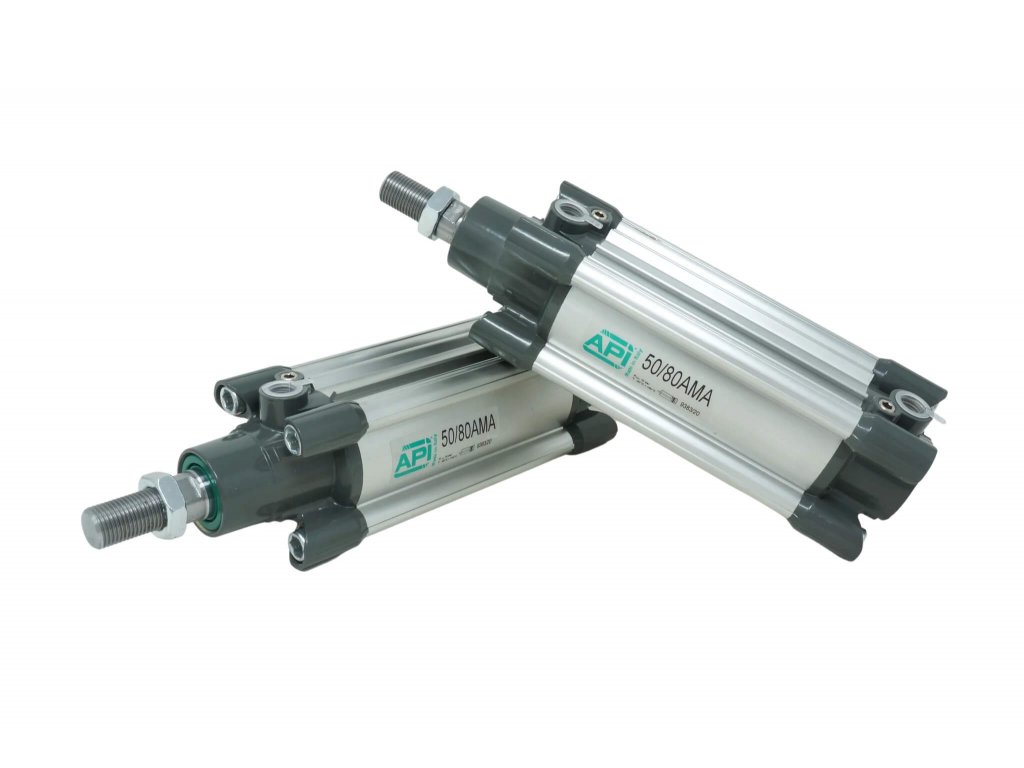

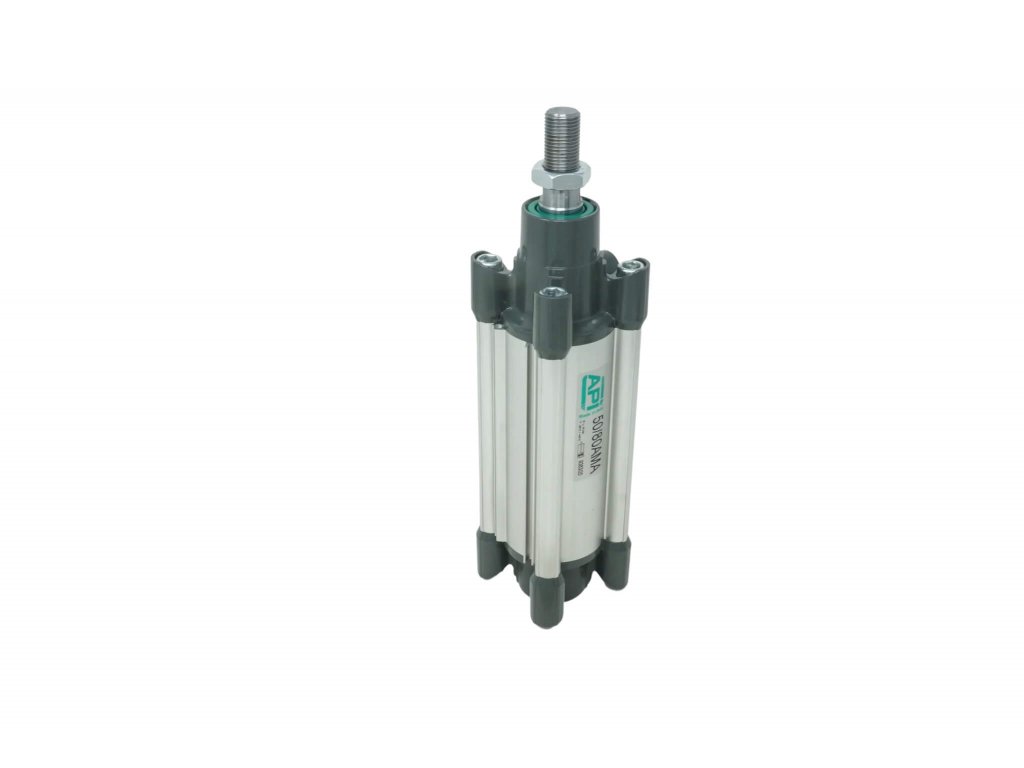

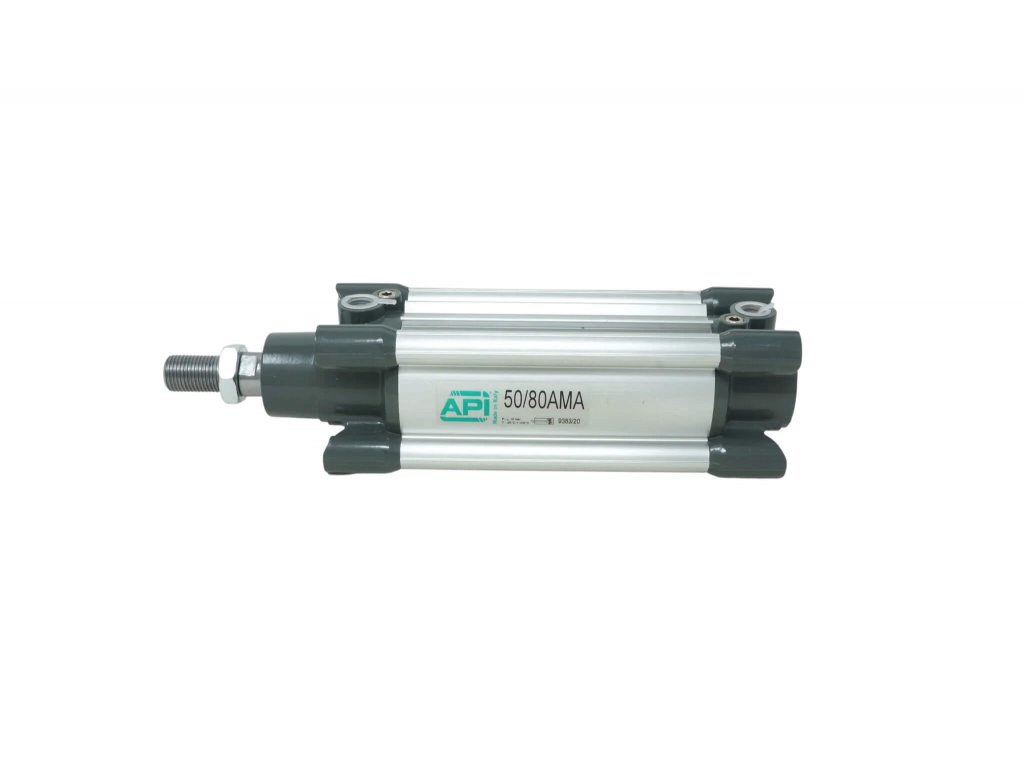

    AMA double acting pneumatic cylinder with 100 mm diameter with magnet. Compliant with ISO 15 552 dimensional standards. The profile is moulded with grooves for the cylinder end position sensors. The rollers are equipped with variable damping in the end positions. Made of aluminium and C45 steel.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    sada tesneni ama valce automatizace vzduch tlak CYLINDERS API (1)
    Original parts
    1 098 Kč –5 %
    AMA 100 mm cylinder gasket set
    up to 20 days
    862 Kč excl. VAT
    1 043 Kč

    Replacement set of AMA pneumatic cylinder seals with a diameter of 100 mm. The kit is only suitable for resealing the pneumatic cylinder.

    Code: 100/SG/AMA
    Position sensors ASV1C525
    Original parts
    797 Kč –5 %
    Position sensors ASV1C525
    up to 14 days
    626 Kč excl. VAT
    757 Kč

    Cylinder end position sensor with 2.5 m fixed cable connection. Reed relay sensing, for 5-240V AC and DC voltages. Red LED signaling.

    Code: 070946
    FFISO 20 piston rod fork
    Original parts
    835 Kč –5 %
    FFISO 20 piston rod fork
    up to 14 days
    655 Kč excl. VAT
    793 Kč

    Piston rod fork according to ISO 8140 type FFISO for cylinders 80 - 100 mm with connection thread M20x1,5

    Code: 041007
    RF kloubova hlavice cilinders api vzduch tlak valce pneumaticke
    Original parts
    853 Kč –4 %
    Joint heads RF - M20 × 1.5
    Stock (4 pcs)
    670 Kč excl. VAT
    811 Kč

    Articulated sockets for pneumatic cylinder on piston rod according to 8139 and DIN 648-K type RF for cylinders 80 - 100 mm with connection thread M20 × 1.5. Supplied in...

    Code: 041559
    Rear fork type CF ALIS 100mm
    Original parts
    986 Kč –4 %
    Rear fork type CF ALIS 100mm
    up to 14 days
    774 Kč excl. VAT
    937 Kč

    Rear fork type CF ALIS for 100 mm cylinder diameter. Designed for cylinders according to ISO 15 552 dimensional standard. Made of aluminium, application for operation with...

    Code: 042055
    Rear eyes type CM ALIS 100 mm
    Original parts
    881 Kč –4 %
    Rear eyes type CM ALIS 100 mm
    up to 14 days
    692 Kč excl. VAT
    837 Kč

    Rear lugs type CM ALIS for 100 mm cylinder diameter. Designed for cylinders according to ISO 15 552 dimensional standard. Made of aluminium, application for operation with...

    Code: 042066
    Rear eyes type ASV ALIS 100 mm
    Original parts
    1 077 Kč –5 %
    Rear eyes type ASV ALIS 100 mm
    up to 14 days
    845 Kč excl. VAT
    1 023 Kč

    ASV ALIS type rear lugs for 100 mm cylinder diameter. Designed for cylinders according to ISO 15 552 dimensional standard. Made of aluminium, application for operation with...

    Code: 042086
    Rear eyes type AS ALIS 100 mm
    Original parts
    2 619 Kč –5 %
    Rear eyes type AS ALIS 100 mm
    up to 14 days
    2 056 Kč excl. VAT
    2 488 Kč

    90° rear lugs type AS ALIS for 100 mm cylinder diameter. Designed for cylinders according to ISO 15 552 dimensional standard. Made of aluminium, application for operation with...

    Code: 040366
    Low feet type PB 100mm
    Original parts
    383 Kč –5 %
    Low feet type PB 100mm
    up to 14 days
    300 Kč excl. VAT
    363 Kč

    AQIS type PB low feet for 100 mm cylinder diameter. Designed for cylinders according to ISO 15 552 dimensional standard. Made of steel, for applications with higher mechanical...

    Code: 042134
    Front flanges type FL 100mm
    Original parts
    1 539 Kč –5 %
    Front flanges type FL 100mm
    up to 14 days
    1 208 Kč excl. VAT
    1 462 Kč

    Flanges type FL AQIS for cylinder diameter 100 mm. Designed for cylinders according to ISO 15 552 dimensional standard. Made of steel, for applications with higher mechanical...

    Code: 042124
    Show all related products Previous product Next product

    Product detailed description

    Double acting pneumatic cylinders with magnet AMA - 100/...AMA

    • diameter 100 mm
    • stroke variant 10 - 2 500 mm
    • piston rod thread including nut M20 x 1,5
    • compressed air connection via 1/2" thread
    • pressure 1 - 10 bar
    • made of aluminium and C45 steel

    Dvojčinné pneumatické válce AMA s magnety a tlumením ISO 15 552

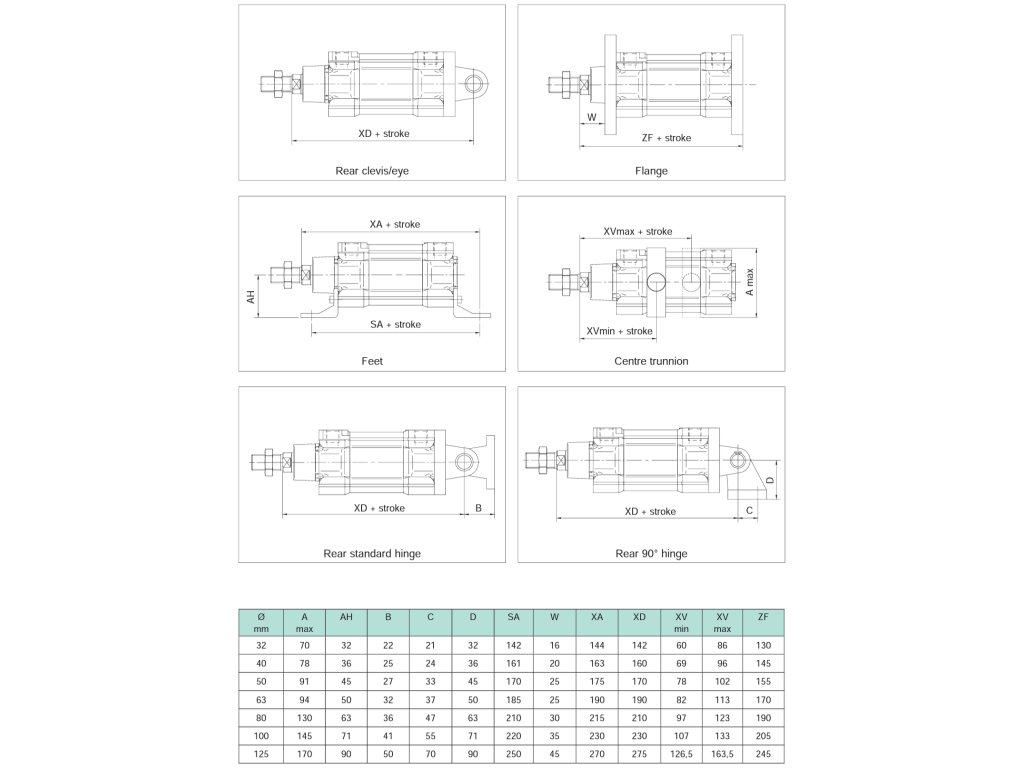

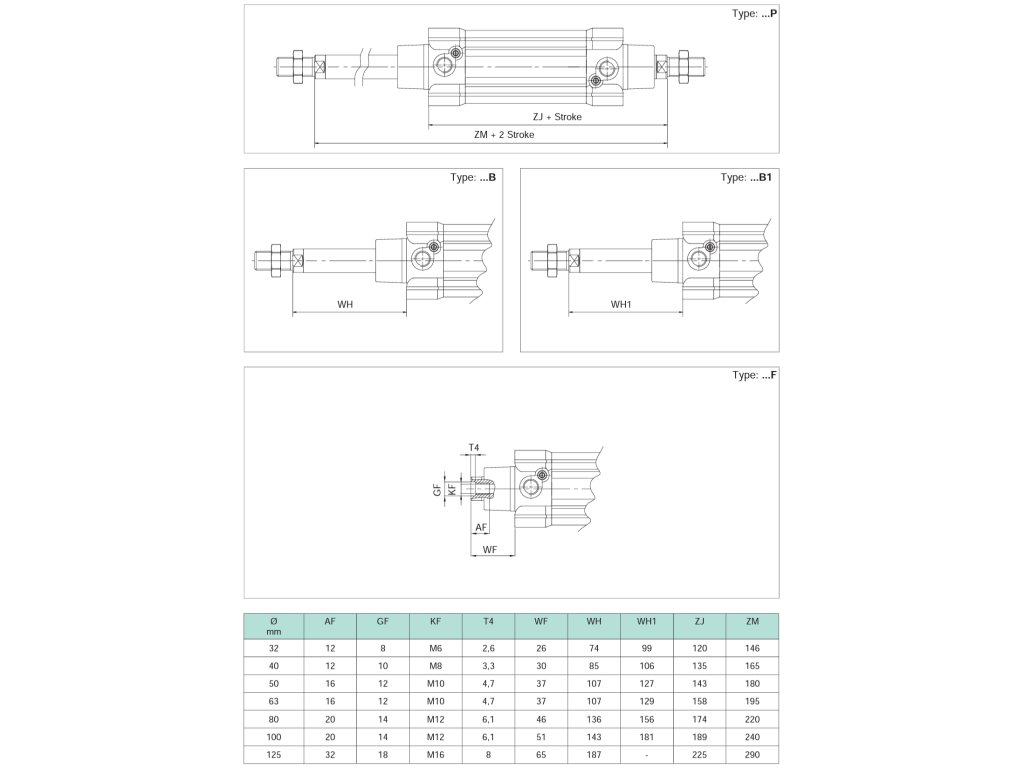

    Výkres dvojčinné pneumatické válce AMA s magnety a tlumením ISO 15 552

    Výkres dvojčinné pneumatické válce AMA s magnety a tlumením ISO 15 552

    Výkres dvojčinné pneumatické válce AMA s magnety a tlumením ISO 15 552

    Výkres dvojčinné pneumatické válce AMA s magnety a tlumením ISO 15 552

    Additional parameters

    Category: AMA double acting pneumatic cylinders
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 1/2"
    Damping length: 35 mm
    Magnet: with a magnet
    Piston rod material: C45 steel
    Profile material: Aluminium
    Lid material: Aluminium
    Average: 100 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: 4240 N
    Cylinder type: Profile
    Stroke selection: 10 - 2500 mm
    Connecting rod thread: M20 x 1.5
