Diesel Compressor Engine Air EA11-7.5-270FBD příkon 7,5 kW, sací výkon 605 l/min, tlak 10 bar, vzdušník 270 l
Code: EA11-7-5-270FBDRelated products
Product detailed description

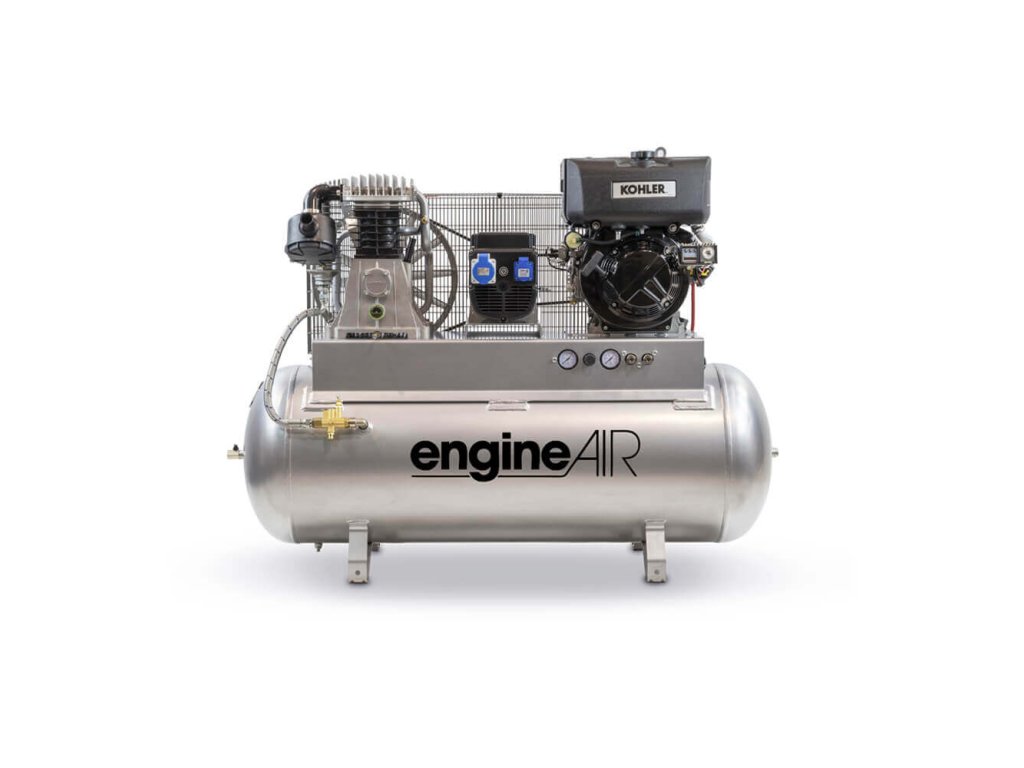

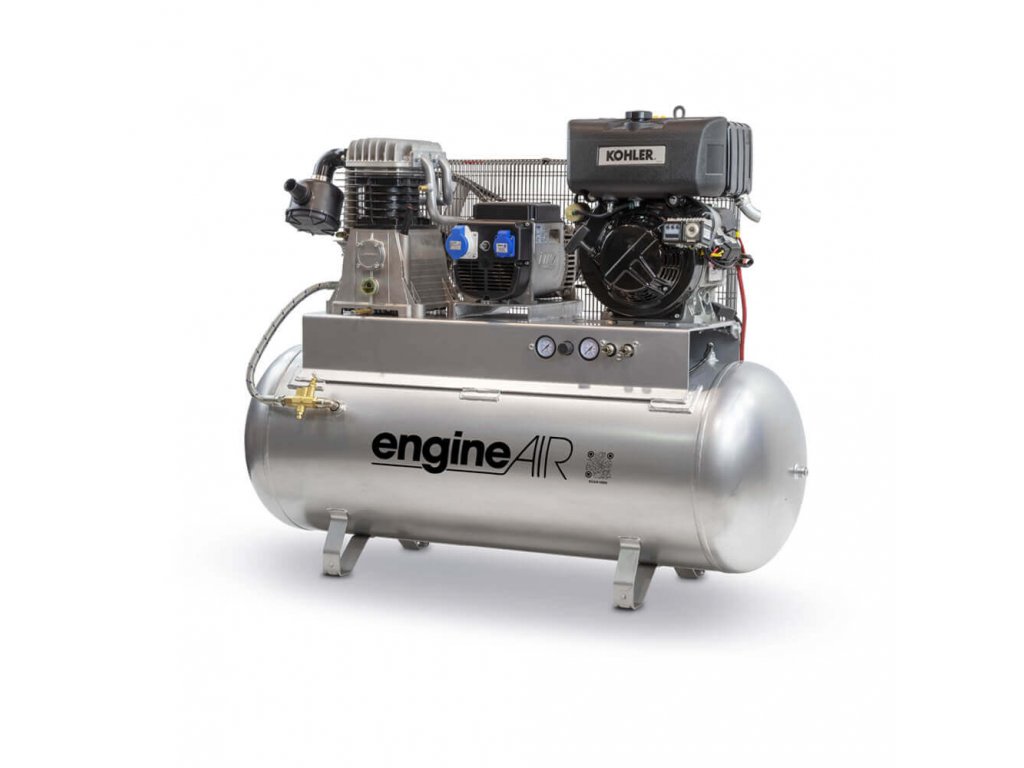

Engine Air Diesel Reciprocating Compressor EA10-7.5-270FBD
Unique combination of compressor and power plant into one machine driven by diesel engine via V-belts. The machine is designed to supply air and electricity in applications where there is no connection to a power source. Oil-lubricated piston compressor B6000B with a suction capacity of 605 l/min and a power pack with two sockets 1x 400 V / 1x 230 V. The compressor has the following standard equipment and user benefits:
- two-stage compressor unit B6000B
- oil gauge for easy reading of the oil level
- aftercooler to reduce the output temperature of compressed air
- power plant 1x 230 V 2,2k VA + 1x 400 V 5,5 kVA
- kohler KD15-440 diesel engine
- electric starter
- central panel with 2 outlets via standard DN7.2 quick coupling, pressure regulator and recessed gauges for reading the outlet pressure and air line pressure
- pressure vessel with a volume of 270 litres
- manual valve for condensate discharge
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard 2-year warranty on the compressor and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | EngineAir construction compressors with internal combustion engine |
|---|---|
| Compressor type: | Combustion compressor |
| Pressure: | 10 bars |
| Suction power: | 605 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN7.2 |
| Motor power: | 7.5 kW |
| Speeds: | 1,320 rpm |
| Number of grades: | 2 stage |
| Lubrication: | Oily |
| Noise: | 98 dB - Lwa, 78 dB - Lwp(4m) |
| Dimensions: | 1 540 x 560 1 180 mm |
| Weight: | 257 kg |
| Accessories: | Pressure regulator, Wheels, Quick coupler, Cover |
| Power station: | Yes |
| Engine: | Diesel |
| Soundproofed: | No |
| Drive: | V-belts |
| Starting the machine: | Electric |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
