Cyclone separator SFHSS-066
Code: SFHSS-066Product detailed description

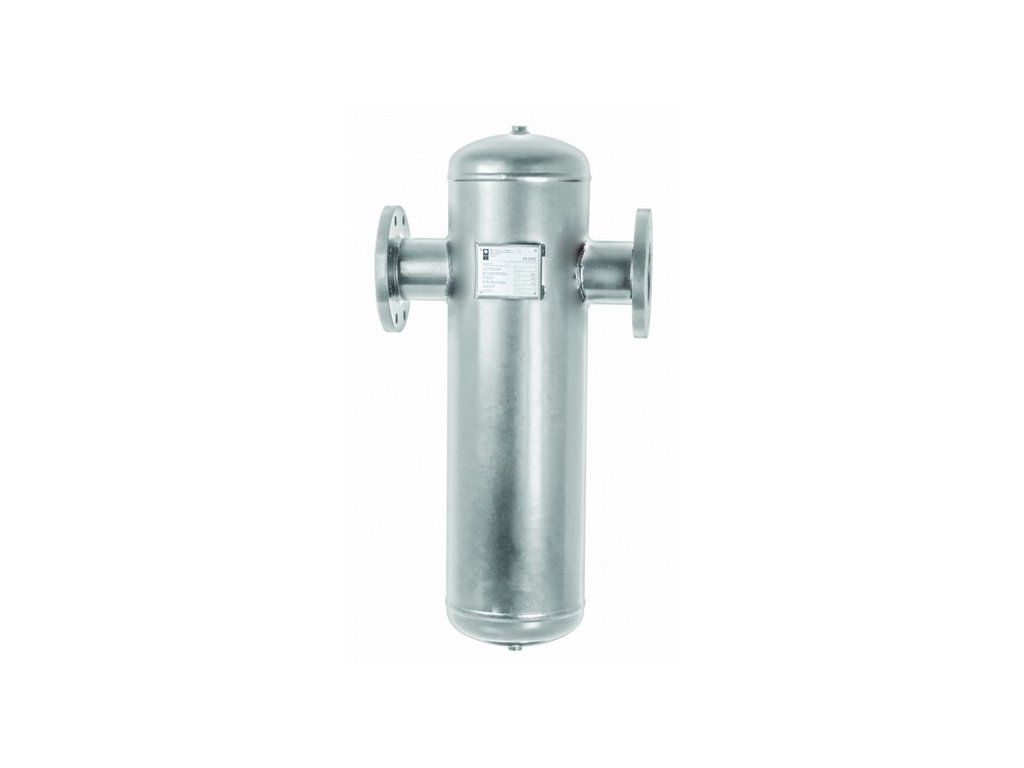

Stainless steel cyclone skimmer - SFHSS-066
- cyclone separators designed for massive removal of water and oil and large solid impurities by centrifugal force
- two body materials: carbon steel SFH, stainless steel SFHSS 1.4301
- flange connection with dimensions DN80 to DN350
- operating temperature range +1.5 to +65 °C, maximum working pressure 16 bar
- without condensate drainage - order separately
- reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us
Correction factor - Working pressure |
|||||||||||||||
Working pressure bar | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
Correction factor | 0,38 | 0,50 | 0,63 | 0,75 | 0,88 | 1,00 | 1,13 | 1,25 | 1,38 | 1,50 | 1,63 | 1,75 | 1,88 | 2,00 | 2,13 |
Additional parameters
Category: | Cyclone separators SFH |
---|---|
Version: | Cyclone separator SFH |
Pressure: | 16 bar |
Connecting: | DN125 flange |
Dimensions: | 980 x 550 x 250 x 273 mm |
Weight: | 58 kg |
Material: | Stainless steel |
Flow: | 65,666 l/min |
