Cyclone separator SFH-180
Code: SFH-180Product detailed description
Cyclone descaler made of steel - SFH-180
- cyclone separators designed for massive removal of water and oil and large solid impurities by centrifugal force
- two body materials: carbon steel SFH, stainless steel SFHSS 1.4301

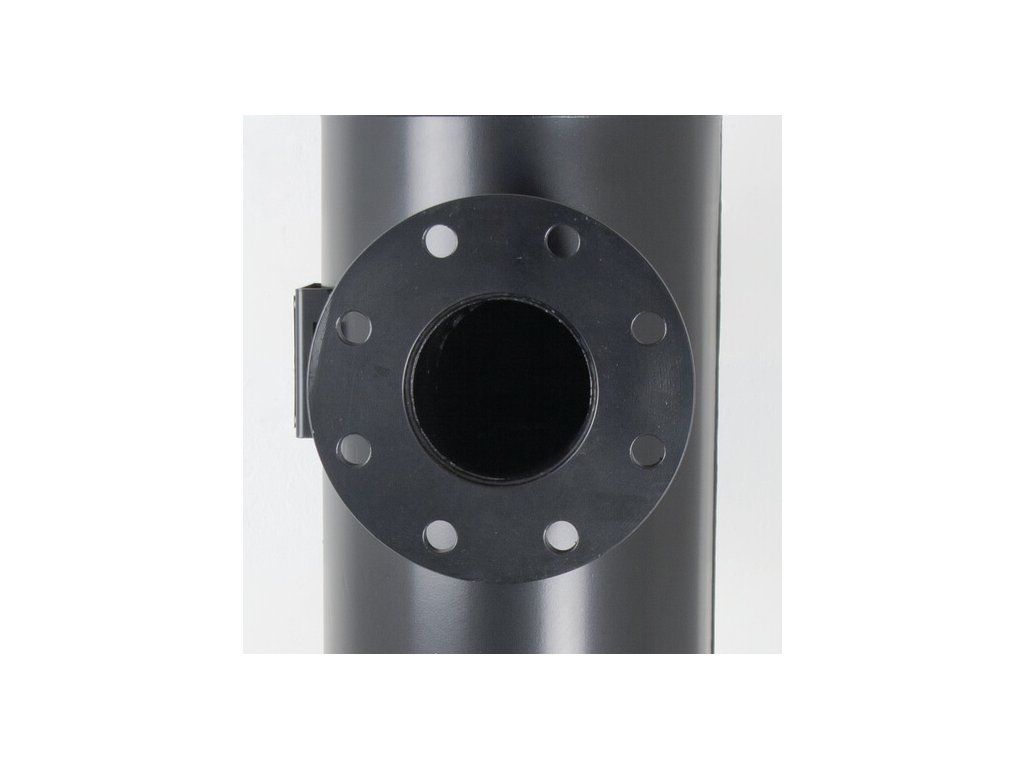

- flange connection with dimensions DN80 to DN350
- operating temperature range +1.5 to +65 °C, maximum working pressure 16 bar
- without condensate drainage - order separately
- reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us
Correction factor - Working pressure |
|||||||||||||||
| Working pressure bar | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Correction factor | 0,38 | 0,50 | 0,63 | 0,75 | 0,88 | 1,00 | 1,13 | 1,25 | 1,38 | 1,50 | 1,63 | 1,75 | 1,88 | 2,00 | 2,13 |
Additional parameters
| Category: | Cyclone separators SFH |
|---|---|
| Version: | Cyclone separator SFH |
| Pressure: | 16 bar |
| Connecting: | flange DN300 |
| Dimensions: | 1470 x 820 x 408 x 550 mm |
| Weight: | 280 kg |
| Material: | Carbon steel |
| Flow: | 179,000 l/min |
