AAFC cyclone separators for condensate removal

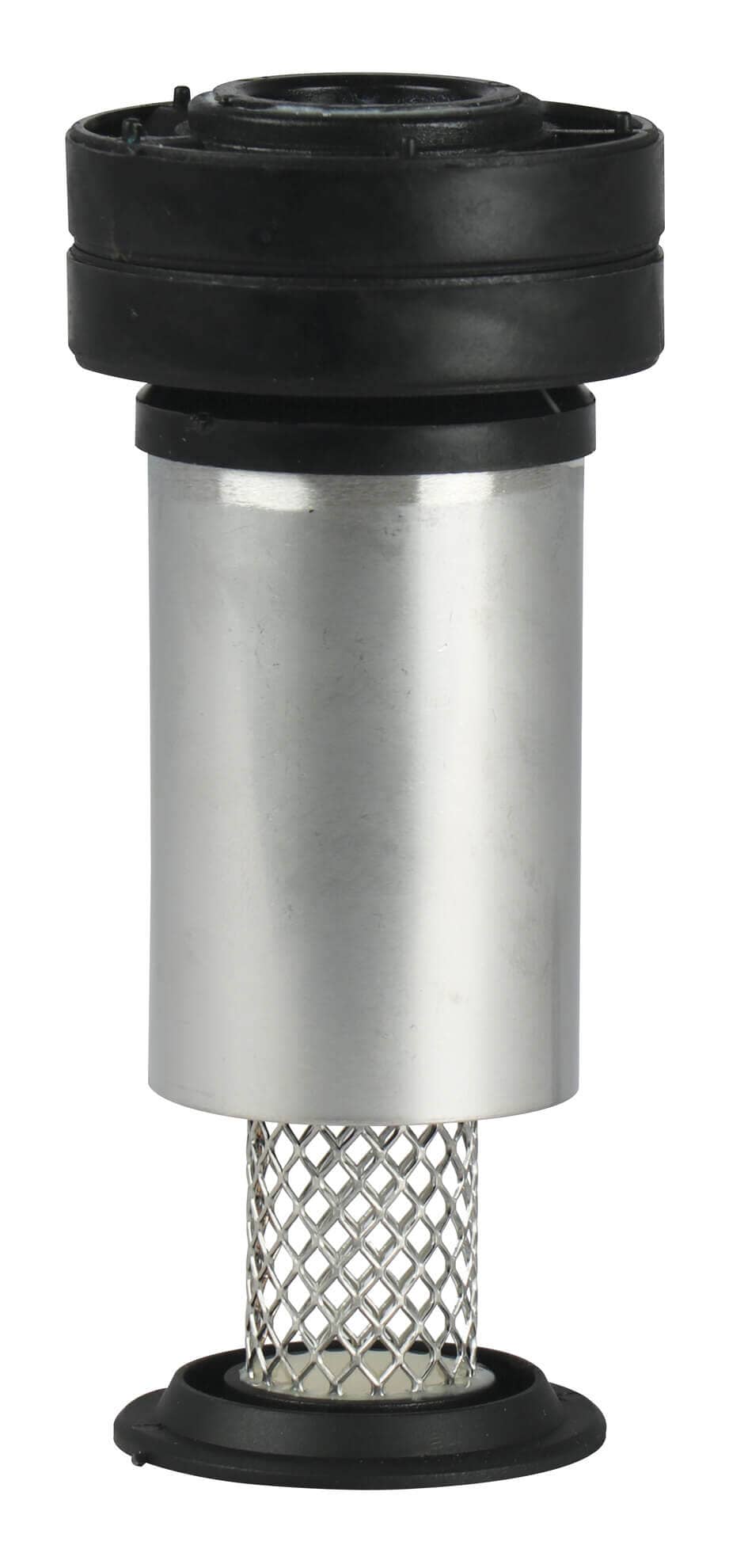

![Cyklonový odlučovač AAFC pro odstranění kondenzátu ze stlačeného vzduchu](/user/documents/uploandd/Produkty/uprandva-vzduchu/prumyslova-filtrace/aaf-filtrace-omega-air/filtracni-telisko-aafc.jpg)

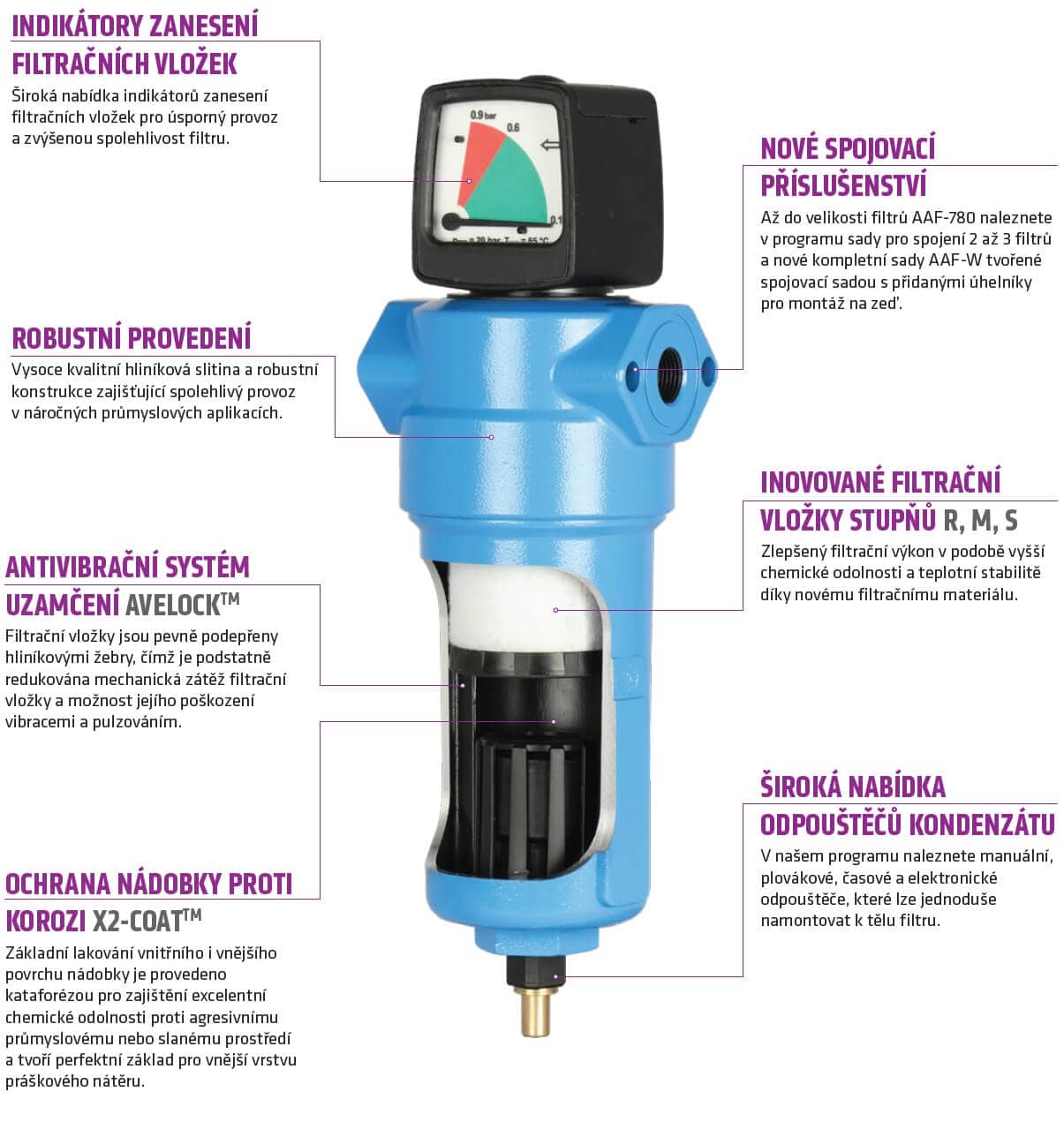

- cyclone separators
- use to remove liquid water directly downstream of the compressor
- filtration according to ISO 8573-1 class x-x-x

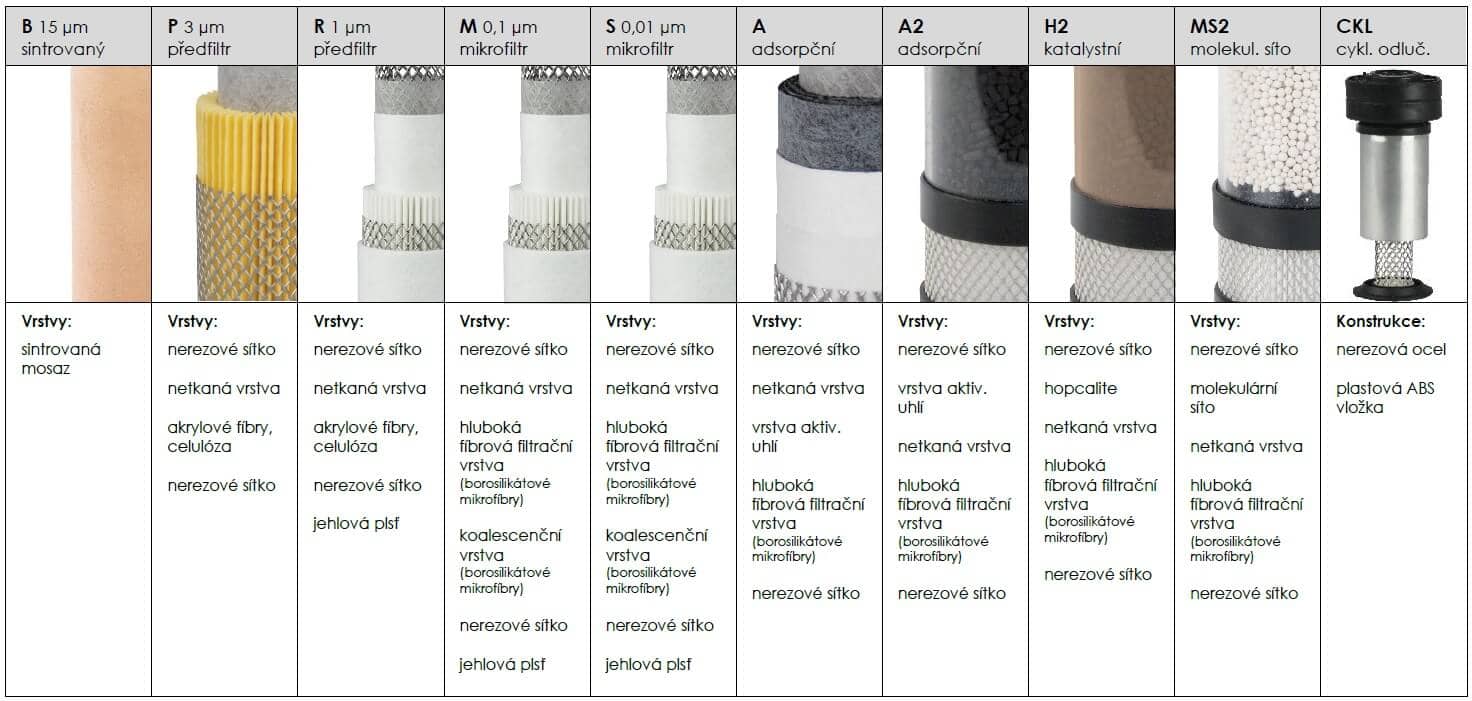

- filter material: stainless steel
- condensate drainage from the vessel by float drain AOK16B
- operating temperature +1.5 to +65 °C
- working pressure 16 bar
- reference flow conditions: ambient temperature +20 °C, inlet air temperature +35 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us
- note: the original CKLB separators will be delivered until the start of sales
AAFC cyclone separators for condensate removal from compressed air |
||||||||||
Ordering number |
Flow | Pressure | Thread | Dimensions mm | Weight | Filtration liner |
||||
l/min | m³/h | bar | " | a | b | c | d | kg | ||
AAFC-60 | 1 000 | 60 | 16 | 3/8" | 189 | 88 | 21 | 60 | 0,60 | AAFC-60V |
AAFC-78 | 1 300 | 78 | 16 | 1/2" | 189 | 88 | 21 | 80 | 0,60 | AAFC-78V |
AAFC-120 | 2 000 | 120 | 16 | 3/4" | 257 | 88 | 21 | 150 | 0,70 | AAFC-120V |
AAFC-198 | 3 300 | 198 | 16 | 1" | 261 | 125 | 37 | 160 | 1,20 | AAFC-198V |
AAFC-510 | 8 500 | 510 | 16 | 1 1/2" | 461 | 125 | 37 | 350 | 1,90 | AAFC-510V |
AAFC-1000 | 16 667 | 1 000 | 16 | 2" | 696 | 164 | 50 | 520 | 5,70 | AAFC-1000V |
AAFC-1500 | 25 000 | 1 500 | 16 | 2" | 943 | 164 | 50 | 770 | 7,60 | AAFC-1500V |
AAFC-2160 | 36 000 | 2 160 | 16 | 3" | 801 | 242 | 60 | 630 | 16,70 | AAFC-2160V |
Reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for the calculation. |

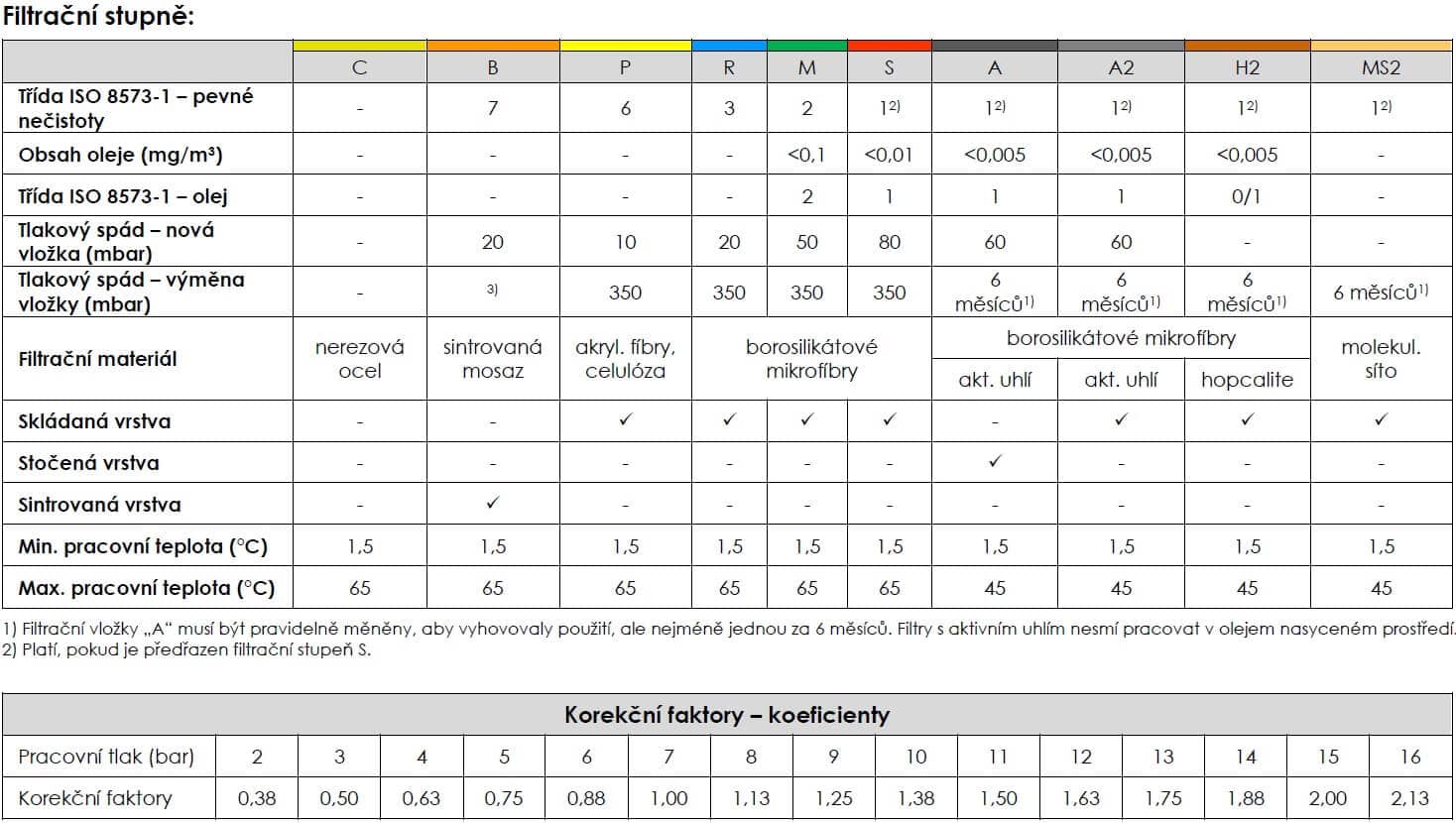

Correction factor - Working pressure |
|||||||||||||||
Working pressure bar | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
Correction factor | 0,38 | 0,50 | 0,63 | 0,75 | 0,88 | 1,00 | 1,13 | 1,25 | 1,38 | 1,50 | 1,63 | 1,75 | 1,88 | 2,00 | 2,13 |
