    Coil ASA2 - 12 V AC

    Code: 032110
    Original parts
    Not rated
    Brand: A.P.I.
    564 Kč –4 %
    ASA2 civka ventil valve conector api vzduch automatizace electric (1)
    564 Kč –4 % 536 Kč / pcs 443 Kč excl. VAT
    up to 14 days
    Delivery to:
    10.12.2024

    Coils type ASA2 for ISO valves size ISO1 and ISO2. 12 V AC version with 4.2 VA and 10 ms response time. We recommend the 18209 connector as coil protection. Coils are not included with ISO valves and must be purchased separately as well as the connector.

    Detailed information

    Related products

    18209N konektor civka ventil valve conector api vzduch automatizace electric (1)
    Tip Original parts
    95 Kč –5 %
    A18209 connector
    Stock (20 pcs)
    74 Kč excl. VAT
    90 Kč

    Connector type 18209 for ASA2 coils to ISO valves of size ISO1 and ISO2. Standard design without cable and led indication.

    Code: 032119
    18209T konektor civka ventil valve conector api vzduch automatizace electric (1)
    Tip Original parts
    459 Kč –5 %
    A18209T1 LED connector - 24 V AC-DC
    Stock (4 pcs)
    360 Kč excl. VAT
    436 Kč

    Connector type 18209 for ASA2 coils to ISO valves of size ISO1 and ISO2. Connector with LED indication, transparent, 24 V AC-DC

    Code: 032207
    18209T konektor civka ventil valve conector api vzduch automatizace electric (1)
    Tip Original parts
    459 Kč –5 %
    A18209T2 LED Connector - 115V AC-DC
    up to 14 days
    360 Kč excl. VAT
    436 Kč

    Connector type 18209 for ASA2 coils to ISO valves of size ISO1 and ISO2. Connector with LED indication, transparent, 115 V AC-DC

    Code: 032208
    18209T konektor civka ventil valve conector api vzduch automatizace electric (1)
    Tip Original parts
    459 Kč –5 %
    Connector A18209T3 LED - 230 V AC-DC
    Stock (4 pcs)
    360 Kč excl. VAT
    436 Kč

    Connector type 18209 for ASA2 coils to ISO valves of size ISO1 and ISO2. Connector with LED indication, transparent, 230 V AC-DC

    Code: 032209
    18209NK konektor civka ventil valve conector api vzduch automatizace electric (1)
    Original parts
    1 092 Kč –5 %
    Connector A18209N1K LED - 2 m - 24 V AC-DC
    Stock (4 pcs)
    857 Kč excl. VAT
    1 037 Kč

    Connector type 18209 for ASA2 coils to ISO valves of size ISO1 and ISO2. Connector with LED indication and 2 m cable, black, 24 V AC-DC.

    Code: 033532
    ventil iso1e50
    3 742 Kč –5 %
    Solenoid valve ISO1E50
    Stock (22 pcs)
    2 938 Kč excl. VAT
    3 555 Kč

    ISO1 solenoid valve in 5/2 coil/spring design for ISO1 plates. ASA2 coil, A18209 connector and SBA1 base plates are not included. Order separately. Valve clearance 8.5 mm with a...

    Code: 032020
    ventil iso1e51
    4 400 Kč –5 %
    Solenoid valve ISO1E51
    up to 14 days
    3 455 Kč excl. VAT
    4 180 Kč

    ISO1 solenoid valve in 5/2 coil/coil version for ISO1 plates. ASA2 coil, A18209 connector and SBA1 base plates are not included. Order separately. Valve clearance 8.5 mm with a...

    Code: 032030
    ventil iso1e52
    4 504 Kč –5 %
    Solenoid valve ISO1E52
    up to 14 days
    3 536 Kč excl. VAT
    4 279 Kč

    ISO1 solenoid valve in 5/2 coil / differential coil design for ISO1 plates. ASA2 coil, A18209 connector and SBA1 base plates are not included. Order separately. Valve clearance...

    Code: 032037
    ventil iso1e70
    4 851 Kč –5 %
    Solenoid valve ISO1E70
    up to 14 days
    3 808 Kč excl. VAT
    4 608 Kč

    ISO1 solenoid valve in 5/3 version, middle position closed for ISO1 plates. ASA2 coil, A18209 connector and SBA1 base plates are not included. Order separately. Valve clearance...

    Code: 032031
    ventil iso1e72
    4 851 Kč –5 %
    Solenoid valve ISO1E71
    up to 14 days
    3 808 Kč excl. VAT
    4 608 Kč

    Solenoid valve ISO1 in 5/3 version, middle position vented for ISO1 plates. ASA2 coil, A18209 connector and SBA1 base plates are not included. Order separately. Valve clearance...

    Code: 032032
    ventil iso1e72
    4 851 Kč –5 %
    Solenoid valve ISO1E72
    up to 14 days
    3 808 Kč excl. VAT
    4 608 Kč

    ISO1 solenoid valve in 5/3 medium pressure position for ISO1 plates. ASA2 coil, A18209 connector and SBA1 base plates are not included. Order separately. Valve clearance 8.5 mm...

    Code: 032043
    ventil iso1e50
    4 607 Kč –4 %
    Solenoid valve ISO2E50
    up to 14 days
    3 617 Kč excl. VAT
    4 377 Kč

    ISO2 solenoid valve in 5/2 coil/spring design for ISO 2 plates. ASA2 coil, A18209 connector and SBA2 base plates are not included. Order separately. Valve clearance 15 mm with a...

    Code: 032040
    ventil iso1e51
    5 265 Kč –5 %
    Solenoid valve ISO2E51
    Stock (1 pcs)
    4 134 Kč excl. VAT
    5 002 Kč

    ISO2 solenoid valve in 5/2 coil/coil version for ISO 2 plates. ASA2 coil, A18209 connector and SBA2 base plates are not included. Order separately. Valve clearance 15 mm with a...

    Code: 032050
    ventil iso1e52
    5 473 Kč –5 %
    Solenoid valve ISO2E52
    up to 14 days
    4 297 Kč excl. VAT
    5 199 Kč

    ISO2 solenoid valve in 5/2 coil / differential coil design for ISO 2 plates. ASA2 coil, A18209 connector and SBA2 base plates are not included. Order separately. Valve clearance...

    Code: 032042
    ventil iso1e70
    5 958 Kč –5 %
    Solenoid valve ISO2E70
    Stock (3 pcs)
    4 678 Kč excl. VAT
    5 660 Kč

    Solenoid valve ISO2 in 5/3 version, middle position closed for ISO 2 plates. ASA2 coil, A18209 connector and SBA2 base plates are not included. Order separately. Valve clearance...

    Code: 032051
    ventil iso1e71
    5 958 Kč –5 %
    Solenoid valve ISO2E71
    up to 14 days
    4 678 Kč excl. VAT
    5 660 Kč

    Solenoid valve ISO2 in 5/3 middle position vented for ISO 2 plates. ASA2 coil, A18209 connector and SBA2 base plates are not included. Order separately. Valve clearance 15 mm...

    Code: 032052
    Show all related products Previous product Next product

    Product detailed description

    Coil type ASA2 - ASA201250

    • coils and connectors can be ordered separately
    • For ISO1 and ISO2 electronic valves
    • we offer electrical accessories for the basic voltages used
    • sBA base plates allow the creation of a valve island, which reduces dimensional requirements

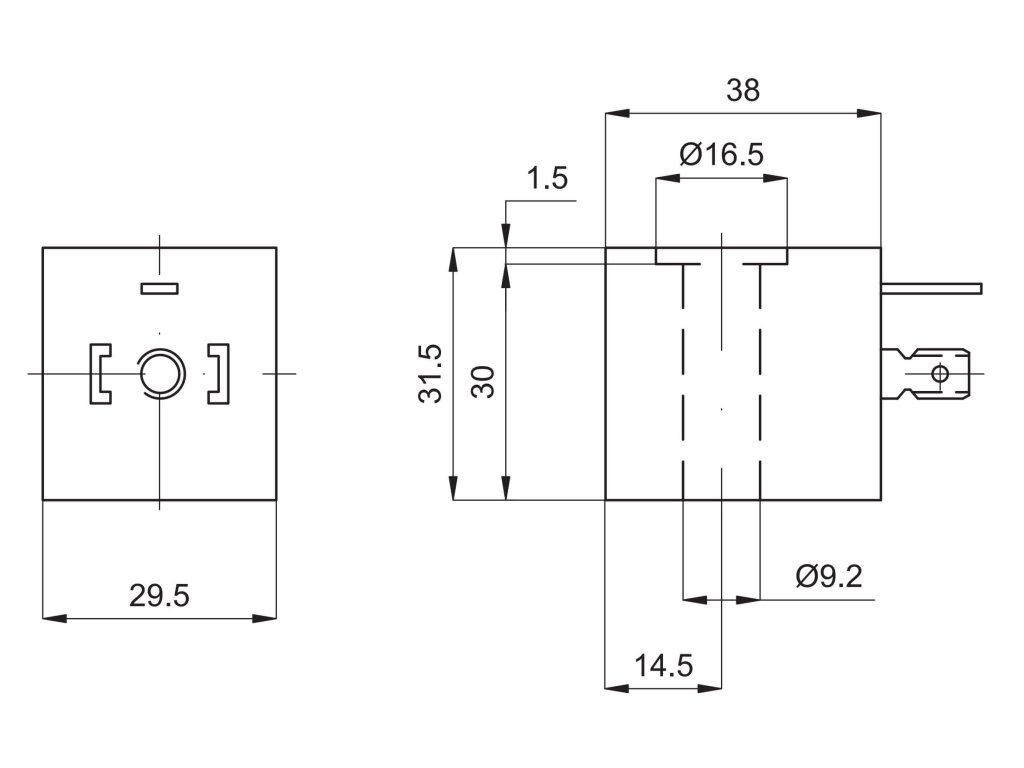

    Technický výkres cívek pro elektromagnetické ventily API ISO do automatizace

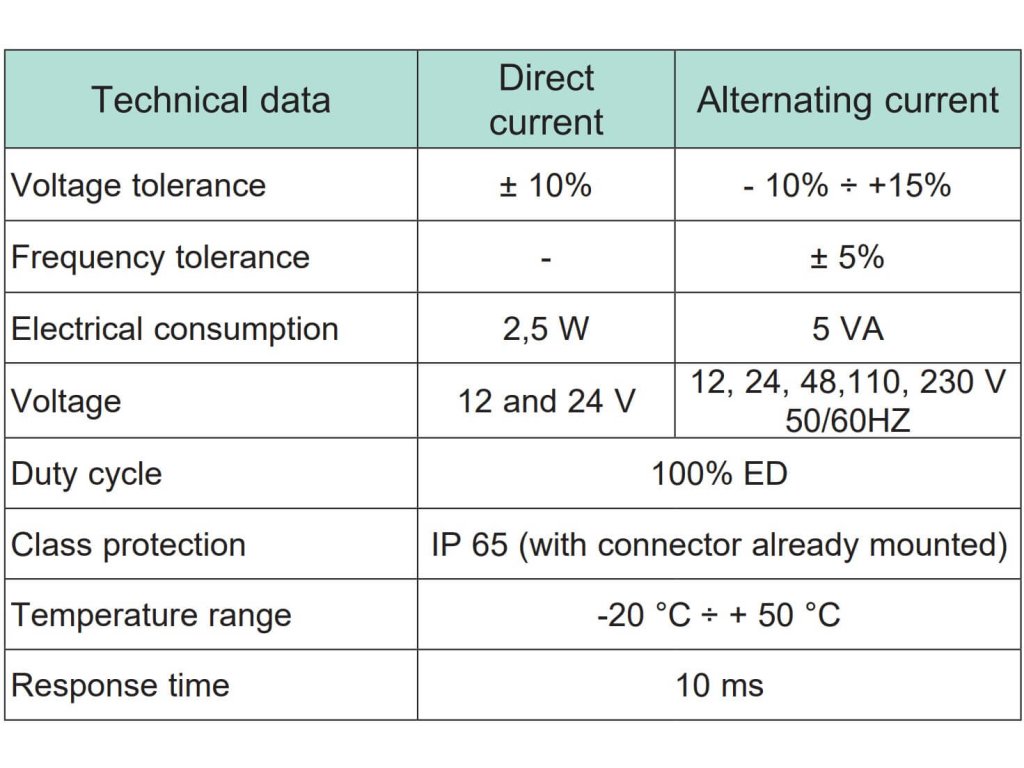

    Tabulka cívek pro elektromagnetické ventily API ISO do automatizace

    Additional parameters

    Category: Accessories for ISO valves
    Motor power: 2.5 VA
    Mains voltage: 12V AC
    Connector: 18209
    Reaction time: 10 ms
