    Coil ASA12 - 24 V AC

    Code: 032103
    Original parts
    Not rated
    Brand: A.P.I.
    310 Kč –5 %
    ASA12 ASA2 civka ventil valve conector api vzduch automatizace electric
    310 Kč –5 % 294 Kč / pcs 243 Kč excl. VAT
    Stock (24 pcs)
    Delivery to:
    30.09.2024

    Coils type ASA12 for valves A1 - 1/8", 1/4" and 1/2". 24 V AC version with 4.2 VA and 10 ms response time. We recommend the A12209 connector as coil protection. Coils are not included with A1 valves and must be purchased separately as well as the connector.

    Detailed information

    Related products

    A12209N ASA2 konektor civka ventil valve conector api vzduch automatizace electric 2 (1)
    Tip Original parts
    95 Kč –5 %
    Connector for coils ASA12 - A12209N
    Stock (108 pcs)
    74 Kč excl. VAT
    90 Kč

    Connector type A12209 for ASA12 spools for A1 valves in 1/8", 1/4" and 1/2" sizes. Standard design without cable and led indication.

    Code: 032118
    A12209NK ASA2 konektor civka ventil valve conector api vzduch automatizace electric 2 (1)
    Original parts
    522 Kč –4 %
    Connector for coils ASA12 - A12209NK - cable 2m
    Stock (82 pcs)
    410 Kč excl. VAT
    496 Kč

    Connector type A12209 for ASA12 spools for A1 valves in 1/8", 1/4" and 1/2" sizes. Standard connector, black, with 2 m cable.

    Code: 033521
    A12209T ASA2 konektor civka ventil valve conector api vzduch automatizace electric 2 (1)
    Tip Original parts
    459 Kč –5 %
    Connector for coils ASA12 - A12209T - LED 24 V AC-DC
    Stock (7 pcs)
    360 Kč excl. VAT
    436 Kč

    Connector type A12209T for ASA12 spools for A1 valves in 1/8", 1/4" and 1/2" sizes. Connector with LED, transparent, 24 V AC-DC.

    Code: 032204
    A12209T ASA2 konektor civka ventil valve conector api vzduch automatizace electric 2 (1)
    Tip Original parts
    459 Kč –5 %
    Connector for coils ASA12 - A12209T - LED 115 V AC-DC
    up to 14 days
    360 Kč excl. VAT
    436 Kč

    Connector type A12209 for ASA12 spools for A1 valves in 1/8", 1/4" and 1/2" sizes. Connector with LED, transparent, 115 V AC-DC.

    Code: 032205
    A12209T ASA2 konektor civka ventil valve conector api vzduch automatizace electric 2 (1)
    Tip Original parts
    459 Kč –5 %
    Connector for coils ASA12 - A12209T - LED 230 V AC-DC
    Stock (6 pcs)
    360 Kč excl. VAT
    436 Kč

    Connector type A12209 for ASA12 spools for A1 valves in 1/8", 1/4" and 1/2" sizes. Connector with LED, transparent, 230 V AC-DC.

    Code: 032206
    A12209NK ASA2 konektor civka ventil valve conector api vzduch automatizace electric 2 (1)
    Original parts
    830 Kč –5 %
    Connector for coils ASA12 - A12209NK - LED cable 2m 24V
    Stock (32 pcs)
    651 Kč excl. VAT
    788 Kč

    Connector type A12209 for ASA12 spools for A1 valves in 1/8", 1/4" and 1/2" sizes. Connector with LED and 2 m cable, black, 24 V AC-DC.

    Code: 033522
    A12209NK ASA2 konektor civka ventil valve conector api vzduch automatizace electric 2 (1)
    Original parts
    830 Kč –5 %
    Connector for coils ASA12 - A12209NK - LED cable 2m 115V
    up to 14 days
    651 Kč excl. VAT
    788 Kč

    Connector type A12209 for ASA12 spools for A1 valves in 1/8", 1/4" and 1/2" sizes. Connector with LED and 2 m cable, black, 115 V AC-DC.

    Code: 033523
    A12209NK ASA2 konektor civka ventil valve conector api vzduch automatizace electric 2 (1)
    Original parts
    830 Kč –5 %
    Connector for coils ASA12 - A12209NK - LED cable 2m 230V
    Stock (80 pcs)
    651 Kč excl. VAT
    788 Kč

    Connector type A12209 for ASA12 spools for A1 valves in 1/8", 1/4" and 1/2" sizes. Connector with LED and 2 m cable, black, 230 V AC-DC.

    Code: 033524
    Solenoid valve A1E130
    1 846 Kč –4 %
    Solenoid valve A1E130
    Stock (5 pcs)
    1 450 Kč excl. VAT
    1 754 Kč

    A1E solenoid valve with 1/8" connection threads in 3/2 NC version with flow rate 650 Nl/min and DN 6,5 mm clearance. Coil ASA12 and connector A12209 are not included. For...

    Code: 034003
    Solenoid valve A1E230
    2 183 Kč –4 %
    Solenoid valve A1E230
    Stock (4 pcs)
    1 714 Kč excl. VAT
    2 074 Kč

    Solenoid valve A1E with 1/4" connection threads in 3/2 NC version with flow rate 1 100 Nl/min and DN 8 mm clearance. Coil ASA12 and connector A12209 are not included. For...

    Code: 034025
    Solenoid valve A1E430
    6 551 Kč –4 %
    Solenoid valve A1E430
    up to 14 days
    5 144 Kč excl. VAT
    6 224 Kč

    Solenoid valve A1E with 1/2" connection threads in 3/2 NC version with flow rate 2 900 Nl/min and DN 15 mm clearance. Coil ASA12 and connector A12209 are not included. For...

    Code: 034113
    Solenoid valve A1E131
    1 846 Kč –4 %
    Solenoid valve A1E131
    Stock (1 pcs)
    1 450 Kč excl. VAT
    1 754 Kč

    A1E solenoid valve with 1/8" connection threads in 3/2 NO version with flow rate 650 Nl/min and DN 6,5 mm clearance. Coil ASA12 and connector A12209 are not included. For...

    Code: 034004
    Solenoid valve A1E132
    2 770 Kč –4 %
    Solenoid valve A1E132
    Stock (23 pcs)
    2 175 Kč excl. VAT
    2 632 Kč

    A1E solenoid valve with 1/8" connection threads in 3/2 coil/coil version with flow rate 650 Nl/min and DN 6,5 mm clearance. Coil ASA12 and connector A12209 are not included. For...

    Code: 034005
    Solenoid valve A1K130
    2 119 Kč –5 %
    Solenoid valve A1K130
    Stock (1 pcs)
    1 664 Kč excl. VAT
    2 013 Kč

    Solenoid valve A1E with 1/8" connection threads in 3/2 NC version, auxiliary pressure supply with flow rate 650 Nl/min and DN 6,5 mm clearance. Coil ASA12 and connector A12209...

    Code: 034006
    Solenoid valve A1K132
    3 323 Kč –5 %
    Solenoid valve A1K132
    up to 14 days
    2 608 Kč excl. VAT
    3 156 Kč

    Solenoid valve A1E with 1/8" connection threads in 3/2 coil/coil version, auxiliary pressure supply with flow rate 650 Nl/min and DN 6,5 mm clearance. Coil ASA12 and connector...

    Code: 034007
    Solenoid valve A1E150
    2 073 Kč –4 %
    Solenoid valve A1E150
    Stock (1 pcs)
    1 628 Kč excl. VAT
    1 970 Kč

    A1E solenoid valve with 1/8" connection threads in 5/2 coil/spring design with flow rate 650 Nl/min and DN 6.5 mm clearance. Coil ASA12 and connector A12209 are not included....

    Code: 034011
    Show all related products Previous product Next product

    Product detailed description

    Coil type ASA12 - ASA1202450

    • coils and connectors can be ordered separately
    • For electronic valves A1
    • we offer electrical accessories for the basic voltages used
    • a1B base plates allow for the creation of a valve island, reducing dimensional requirements

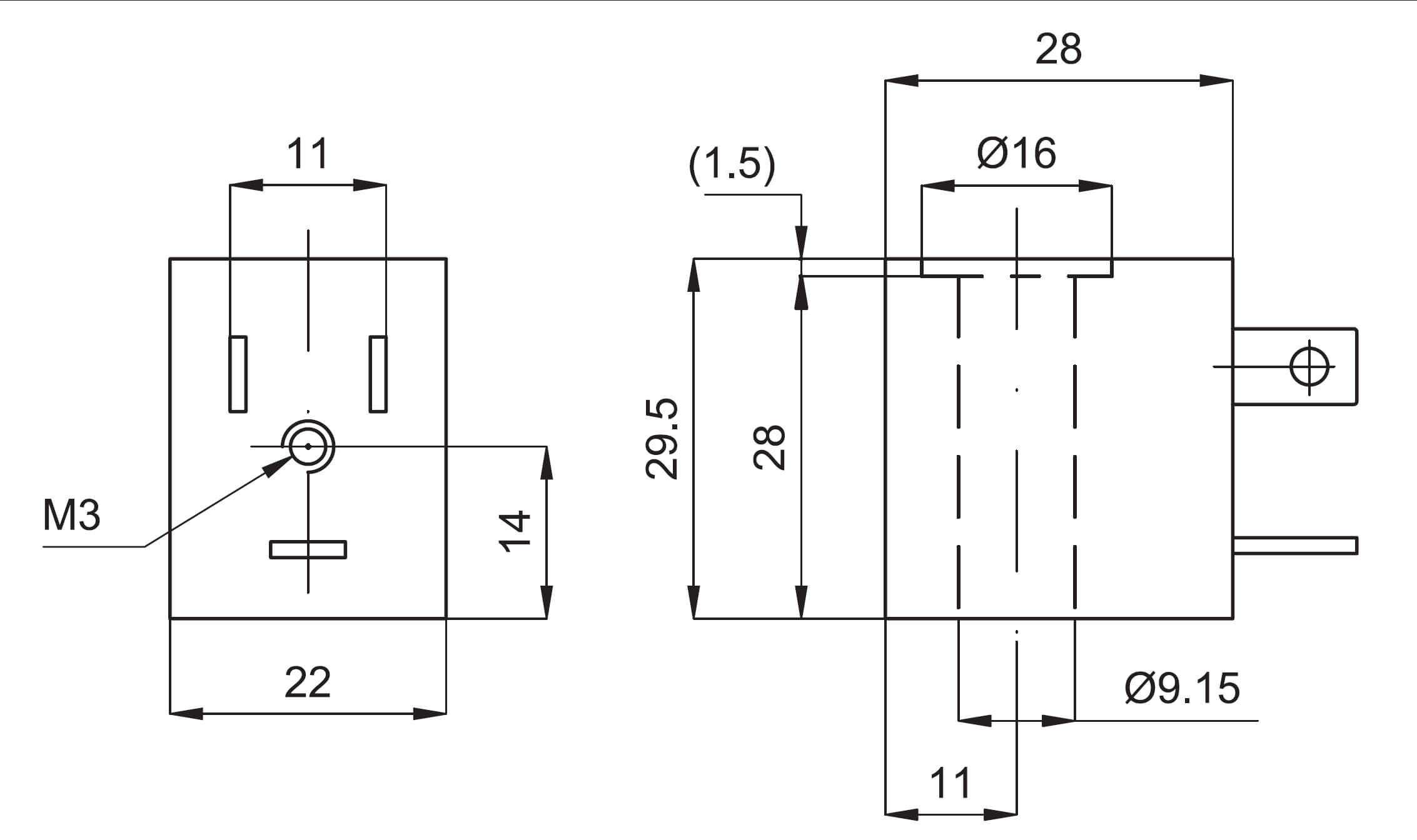

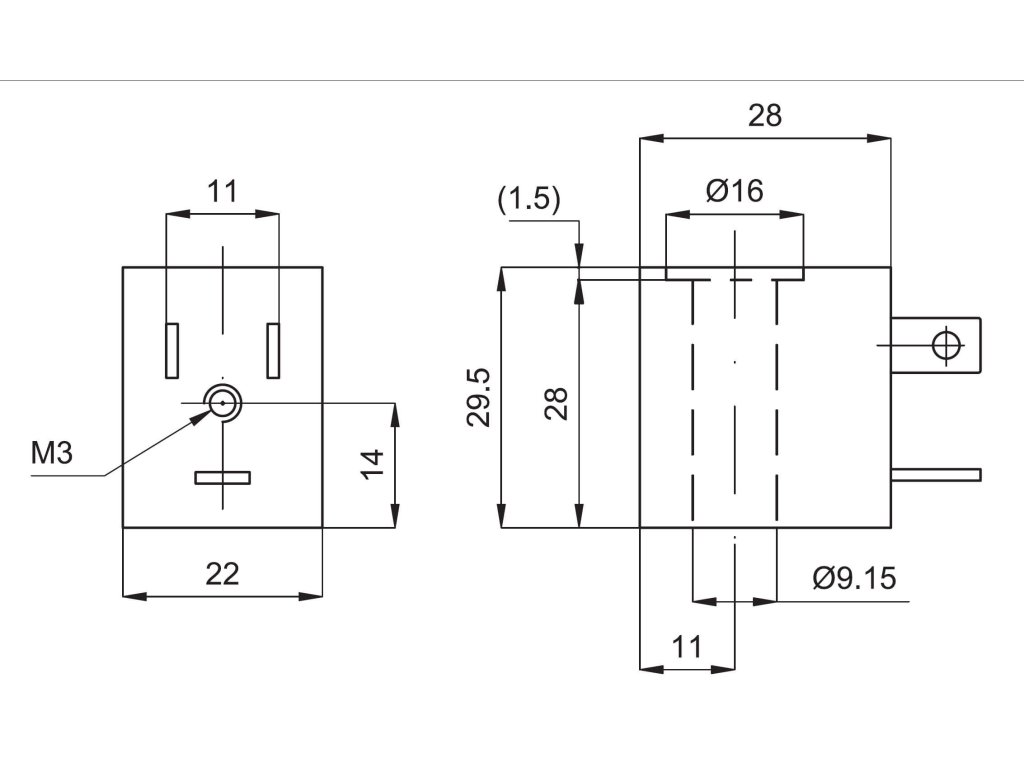

    Technický výkres cívek pro elektromagnetické ventily A1E do automatizace

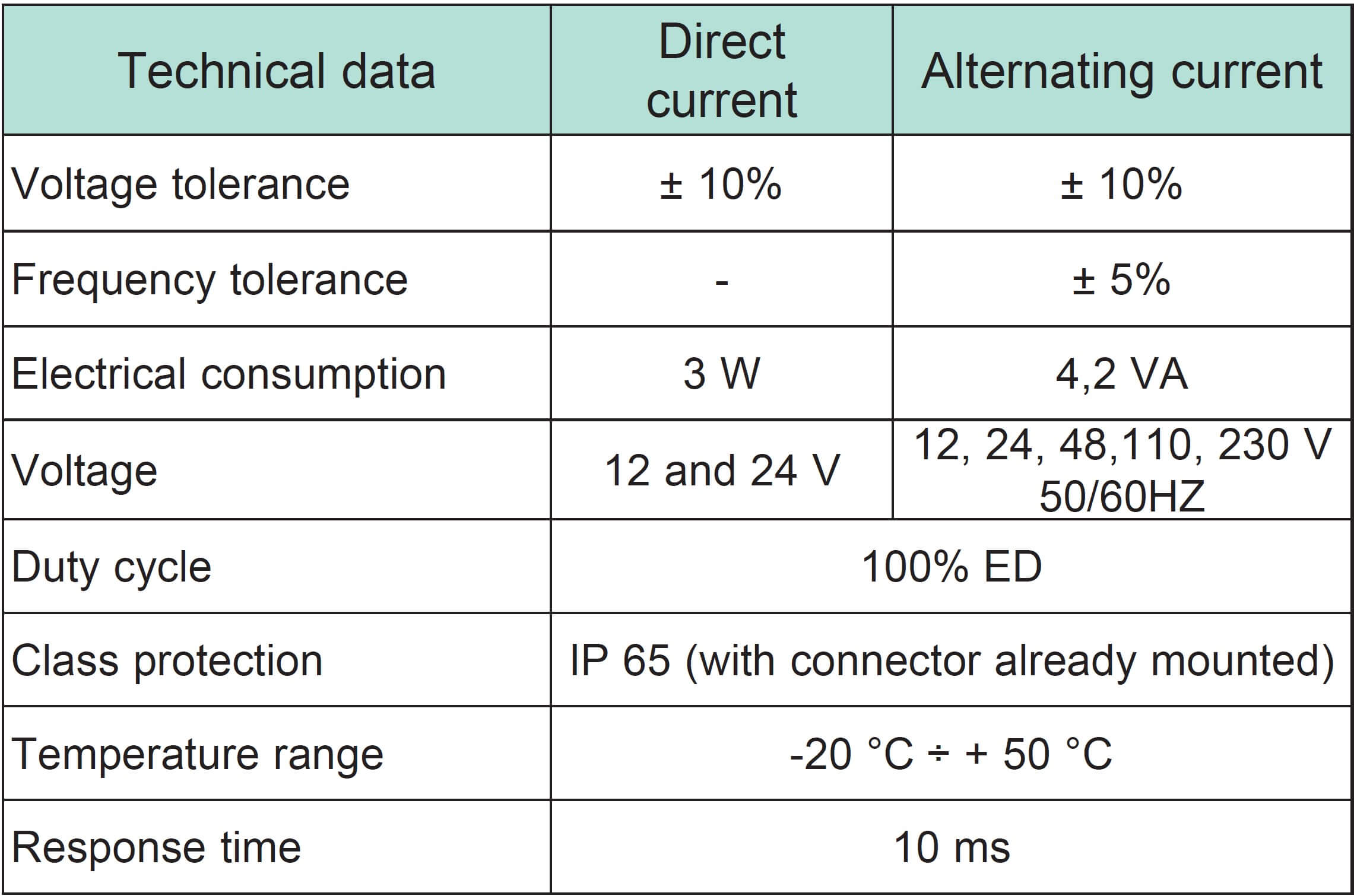

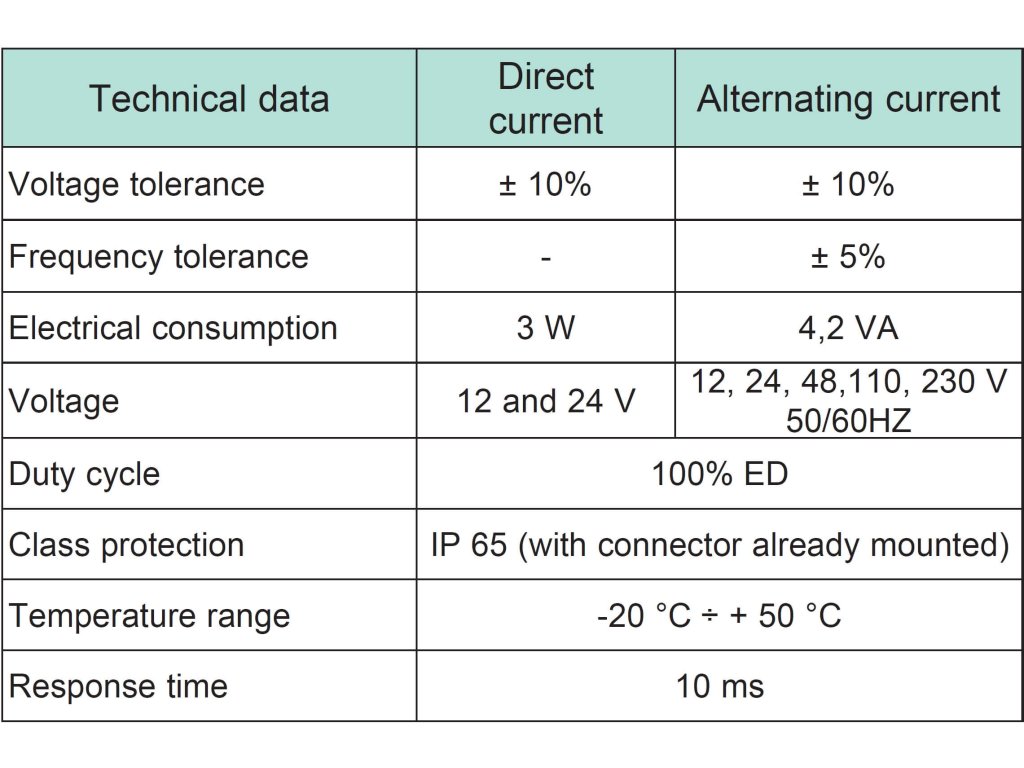

    Technická tabulka cívek pro elektromagnetické ventily A1E do automatizace

    Additional parameters

    Category: A1E and A1P valve accessories - 1/8"
    Motor power: 4.2 VA
    Mains voltage: 24 V AC
    Reaction time: 10 ms
