Oil-free compressor Compact Air 50l
Code: C330-50
Related products
Product detailed description

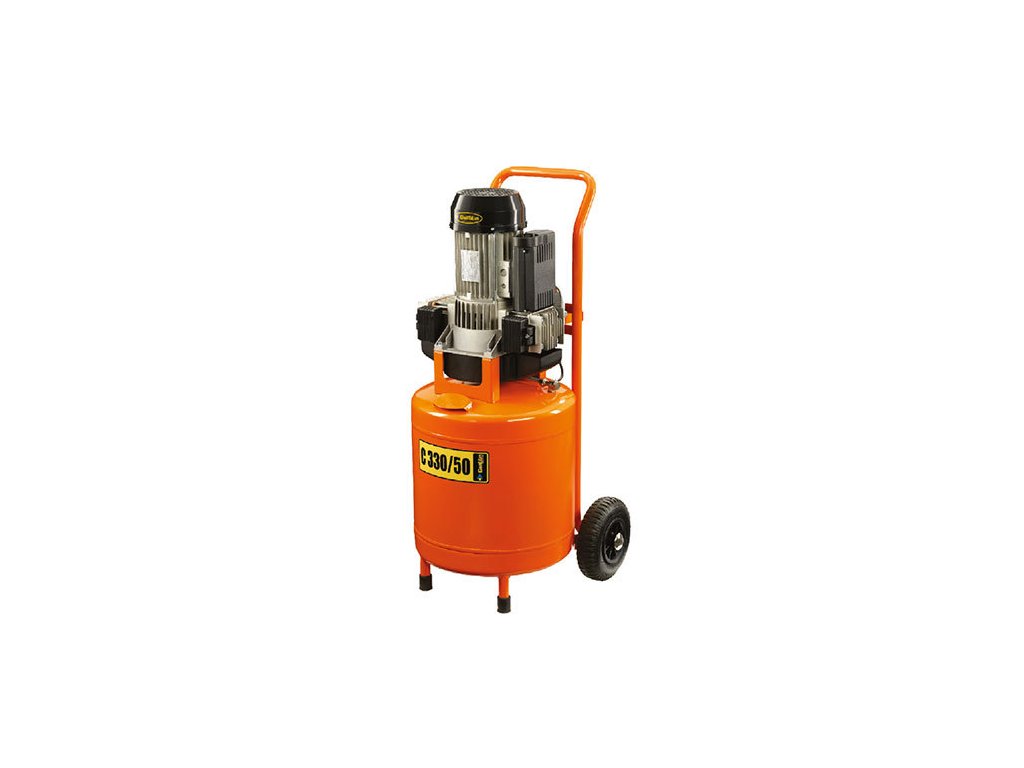

Compact Air C330-50 mobile oil-free piston compressor
- Three sizes of compressor units B110, C240 and C330 with many user benefits
- Single stage compressor unit with one piston (B110) or two pistons (C240 and C330) supplied pressure 9 bar
- Rollers with ceramic surface to reduce friction
- Teflon piston rings with grooved profile ensure high durability
- Patented double connecting rod design in one axis for elimination of lateral forces and constant air supply
- Modified valve plate with vibration damping for reduced noise
- High quality suction fitting for maximum noise reduction
- Large propeller cooling fan provides sufficient cooling
- Automatic operation via pressure switch with push button
- Pressure regulator with pressure gauge as standard
- Compressed air outlet via quick coupling
- The oil-free design reduces machine maintenance to a minimum, supplies oil-free air and avoids problems with oil leaks, e.g. during machine transport
 |
Compressor C330-50
|
Comapct AIR oil-free compressors
The Compact Air range of oil-free compressors is based on 3 types of compressor units B110, C240 and C330. The B110 unit has a suction power of 110 l/min, the C240 unit has a suction power of 240 l/min and the C330 unit has a suction power of 330 l/min. In addition, the B110 and C240 compressors have significantly reduced noise levels due to the special design of the valve plate.
Patent solution
Compact Air compressors are unique in their technical design and Gentilin holds an international patent for this oil-free solution. The double piston in the compressor unit is housed inside an aluminium cylinder with a ceramic surface. This arrangement significantly reduces seal wear.
Professional quality
In order to guarantee the highest quality, the Compact Air series compressors are completely manufactured, assembled and tested directly at the manufacturer's site in Italy. Each machine undergoes rigorous pre-sale inspection and testing. The long service life of the Compact Air compressor is made possible by the quality of the materials used and the low motor speed. If the compressor is properly sized, the motor used in Compact Air compressors allows the compressor to operate 24 hours a day without overheating problems.
Areas of application
Compact Air compressors are designed especially for professional use. They are suitable for craftsmen, small and medium workshops, painters and upholsterers. We recommend the Compact Air series to all customers with demands on machine size and mobility. The oil-free design meets the requirements wherever perfectly clean air is required, even at low temperatures.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 2 years |
| Version: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 330 l/min |
| Displacement: | 200 l/min |
| Pressure vessel volume: | 50 L |
| Design of pressure vessel: | Standing |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 degree |
| Lubrication: | Oil-free |
| Noise: | 81 dB(A) |
| Dimensions: | 480 x 550 x 1020 mm |
| Weight: | 44 kg |
| Warranty: | 3 years only with us |
| Gift: | Blow gun |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
