Oil-free compressor B15-1.1-24CM příkon 1,1 kW, sací výkon 160 l/min, tlak 8 bar, vzdušník 24 l, napětí 230/50 V/Hz
Code: B15-1-1-24CMRelated products
Product detailed description

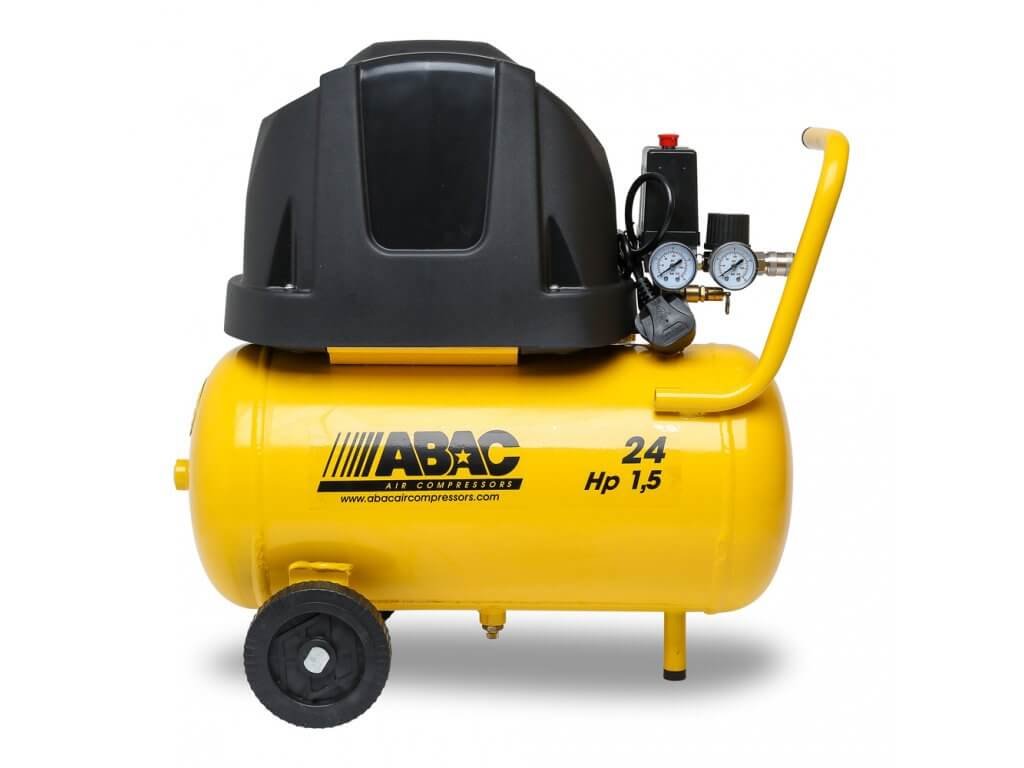

Base line oil-free piston compressor B15-1,1-24CM
The Base Line compressor in oil-free design with direct connection of the electric motor to the B15 compressor unit with a suction power of 160 l/min is designed for tyre inflation, blowing of work surfaces and other small semi-professional applications. The compressor has the following standard equipment:
- automatic operation control by pressure switch
- output via standard DN7,2 quick coupling
- pressure regulator included in delivery

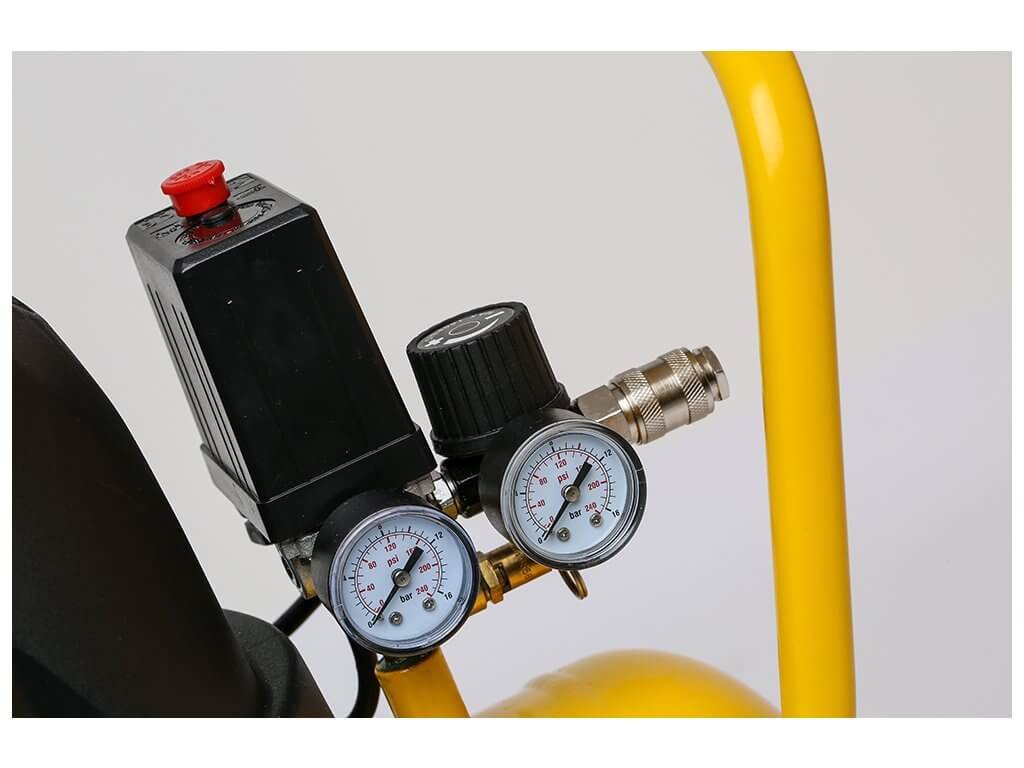

- two pressure gauges for reading the outlet pressure and the pressure in the air tank
- 24-litre capacity airbox with condensate release valve
- handle and wheels for easy handling of the machine
Easy installation and maintenance thanks to service videos available via the app AIRTUBE after reading the QR code from the pressure vessel.
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years for the compressor
Additional parameters
| Category: | Base line piston compressors |
|---|---|
| Compressor type: | Piston compressor |
| Pressure: | 8 bar |
| Suction power: | 160 l/min |
| Displacement: | 84 l/min |
| Pressure vessel volume: | 24L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN7.2 |
| Motor power: | 1.1 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2,450 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 degree |
| Lubrication: | Oil-free |
| Noise: | 90 dB - Lwa, 70 dB - Lwp(4m) |
| Dimensions: | 610 x 320 x 590 m |
| Weight: | 18 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Occasional |
| Development: | Mobile |
Instalace kompresoru
Odpouštění kondenzátu
Servisní KIT kompresoru a výměna
Údržba sacího filtru
Uvedení do provozu
Výměna oleje u kompresoru
Výměna pístu a těsnění
Výměna sacího filtru a údržba zpětného ventilu
