Oil-free compressor A39B0-2,2-270CT příkon 2,2 kW, sací výkon 393 l/min, tlak 10 bar, vzdušník 270 l, napětí 400/50 V/Hz
Code: A39B0-2-2-270CTRelated products
Product detailed description

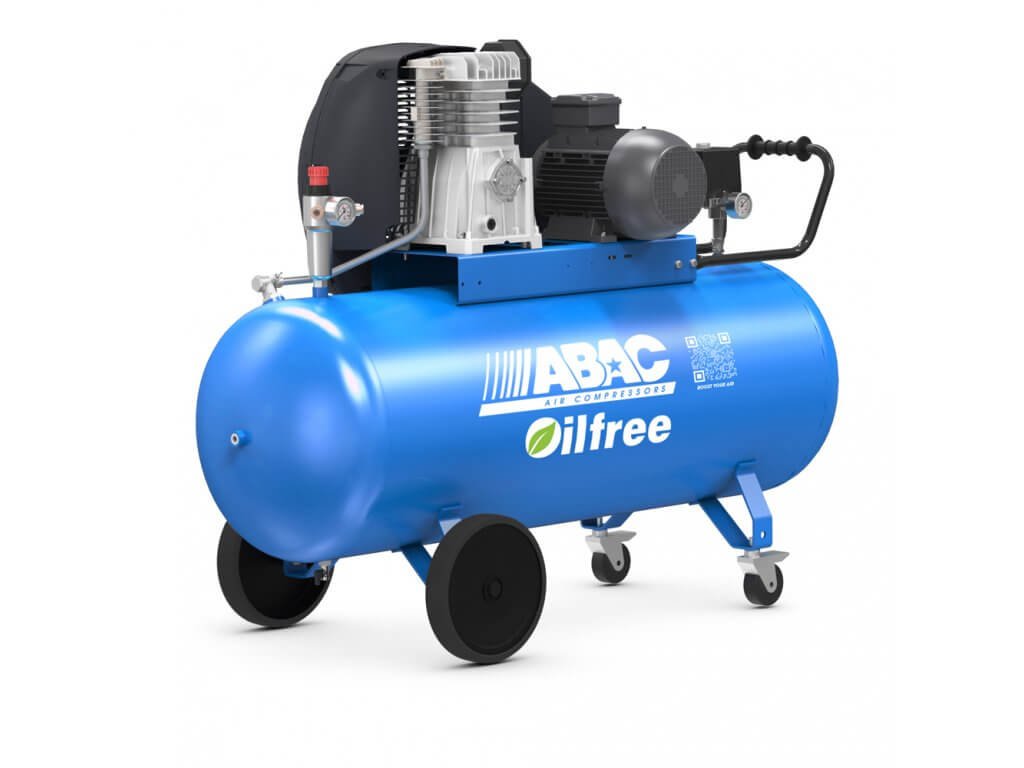

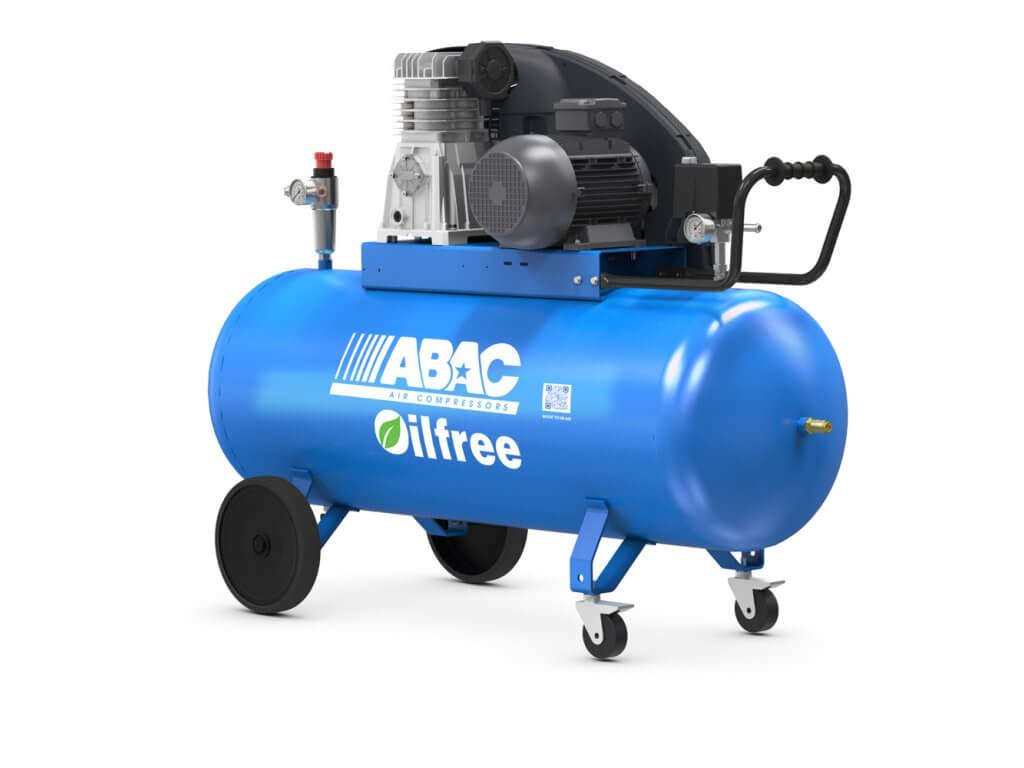

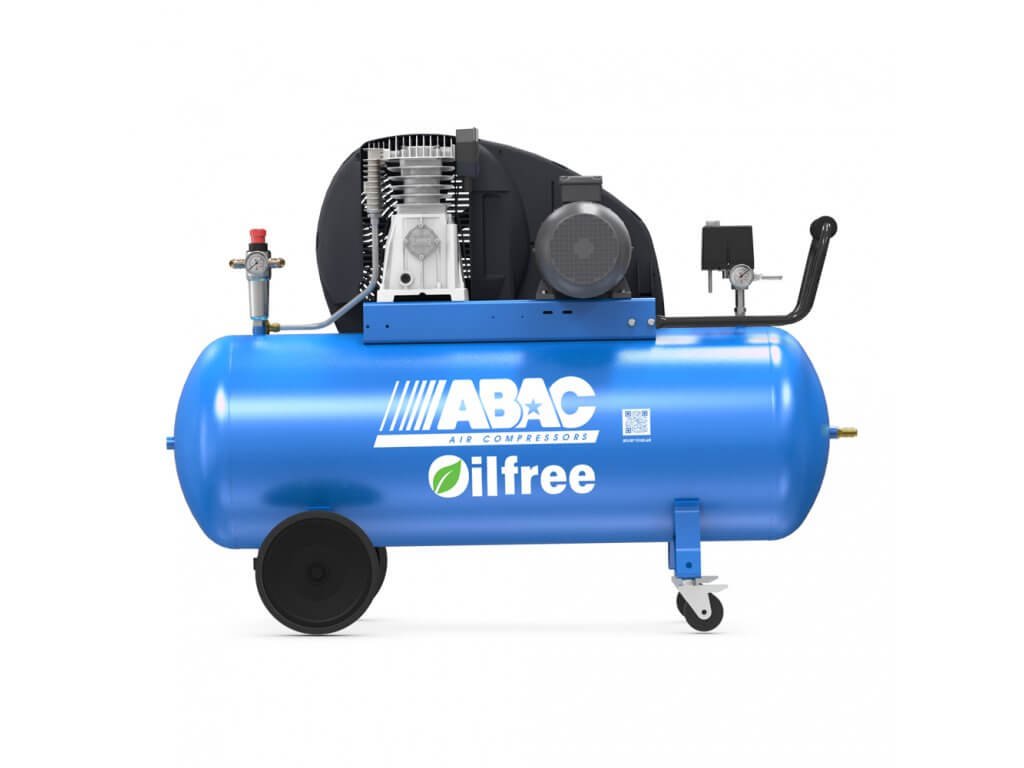

Professional oil-free piston compressor ABAC A39B0-2,2-270CT
The environmentally friendly Pro Line Zero compressor enables its oil-free design to be used in all applications where the risk of oil contamination must be eliminated. It can be used for example in the paint industry, microbreweries, food industry, etc. Connection of the electric motor to the A39B0 compressor unit via V-belts with a suction capacity of 393 l/min and the following standard equipment:

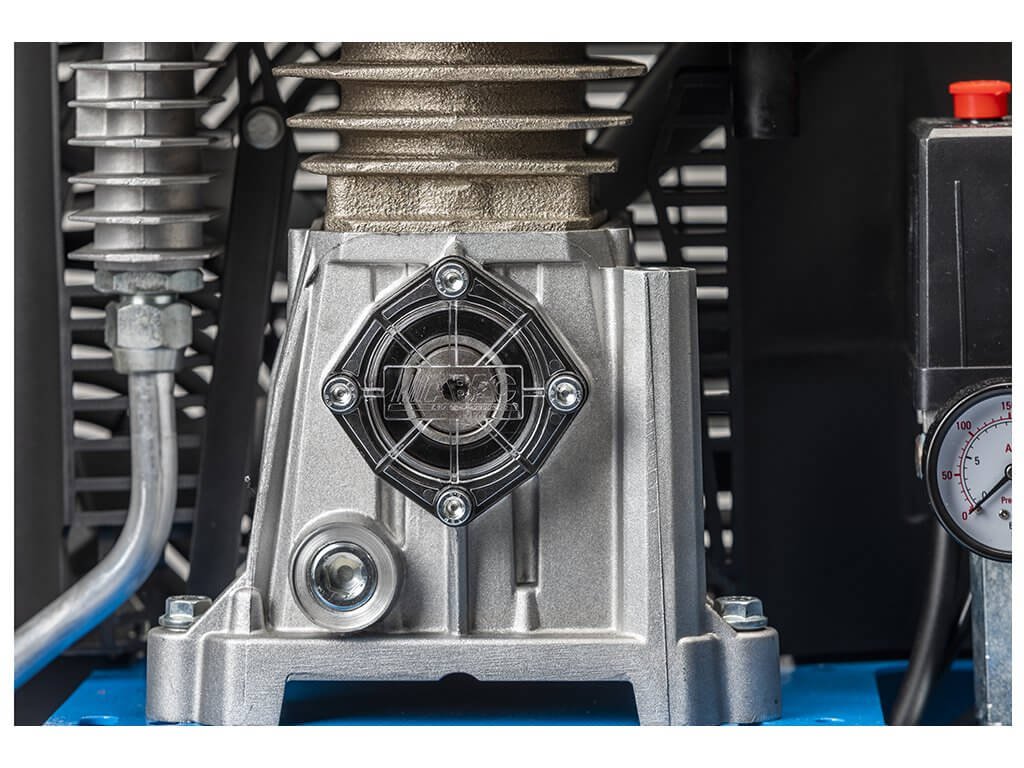

- cylinder with internal potefloned surface for oil-free operation
- unique belt gear cover with aerodynamically shaped grooves and aftercooler at the compressor outlet reduce the outlet air temperature by up to +35°C and ensure extreme increase in compressor lifetime
- automatic operation control by means of a high-end Condor pressure switch
- electric motor equipped with temperature protection
- output via standard DN7,2 quick coupling

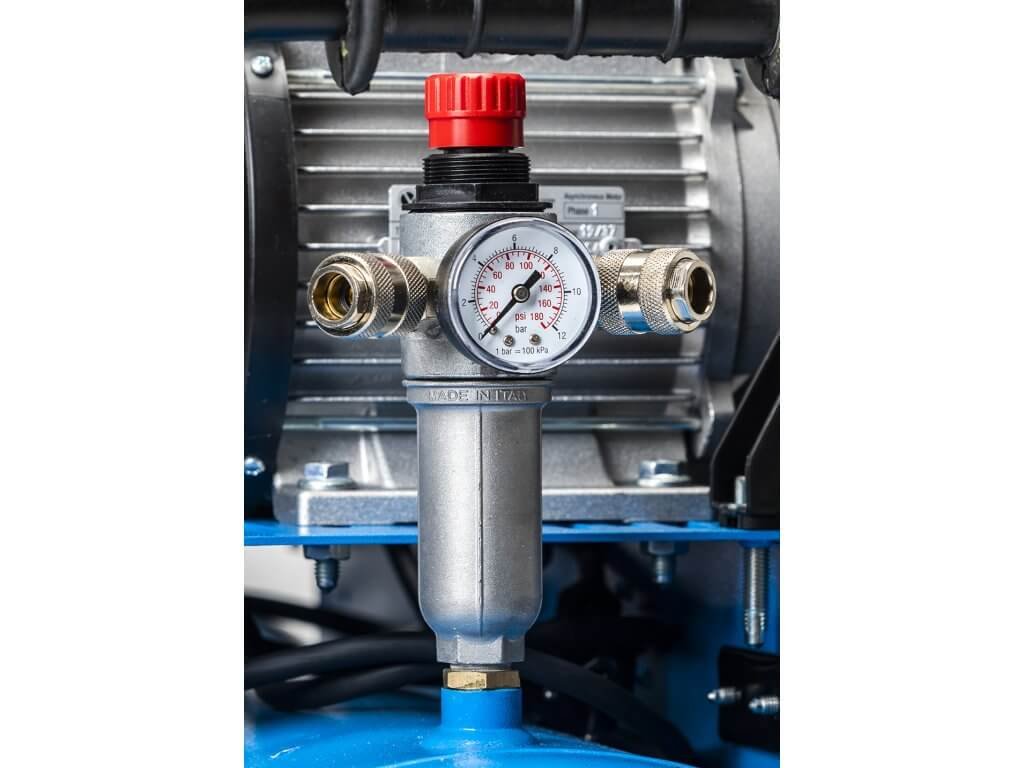

- pressure regulator included in delivery
- two pressure gauges for reading the outlet pressure and the pressure in the air tank

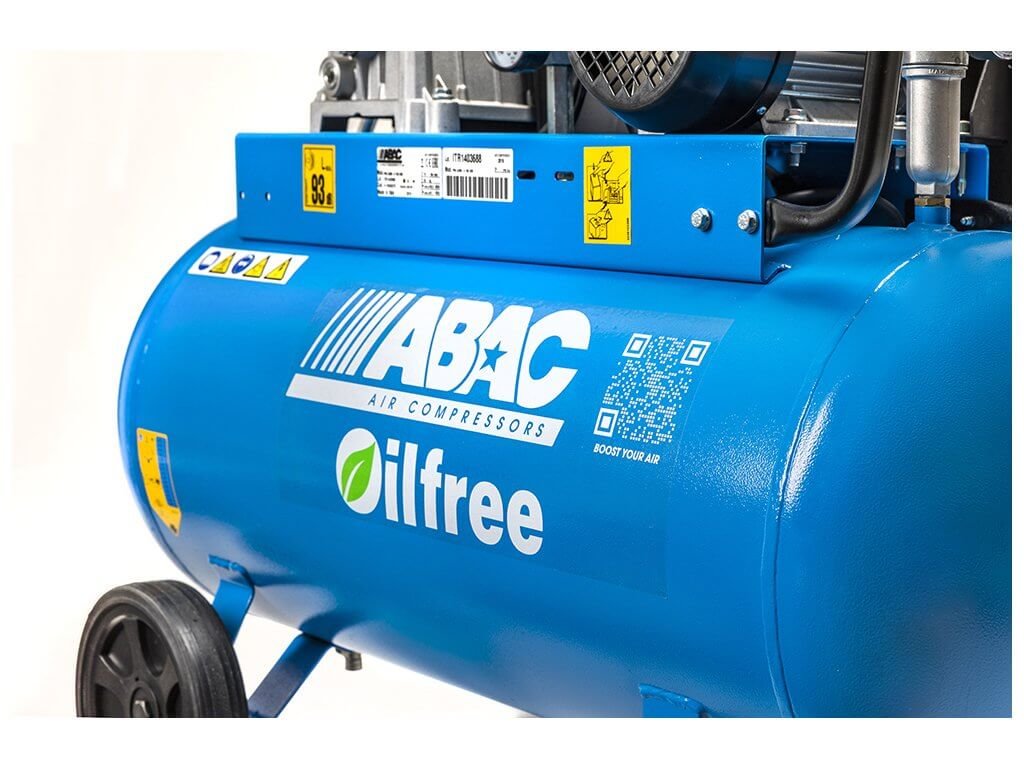

- 270-litre aerator with ball valve for convenient condensate drainage

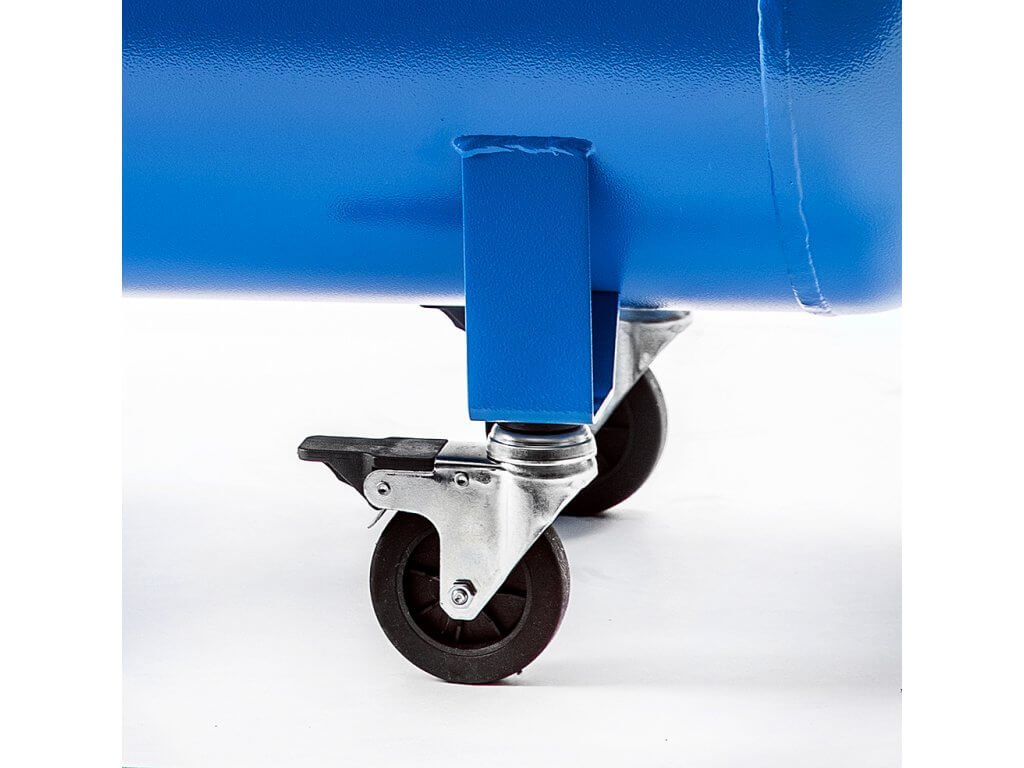

- two front wheels with brakes significantly increase the stability of the machine and improve handling
- rubberised handle for perfect user comfort
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years with the possibility of extending it to 3 years and a 10-year warranty on the rusting of the pressure vessel.
Additional parameters
| Category: | ABAC PISTON COMPRESSORS FOR ZERO |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 393 l/min |
| Displacement: | 283 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1050 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 degree |
| Lubrication: | Oil-free |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Dimensions: | 1 437 x 573 x 1 039 mm |
| Weight: | 138 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
