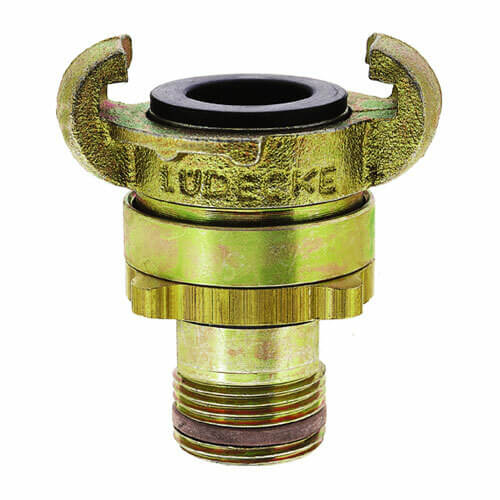

SSGA bayonet couplings with external thread

high quality safety couplings, body made of tempered cast iron, hose shank made of steel, with special contour grooves, galvanized and yellow chromed, with safety double tongue
reinforced thread protection ring and seals inserted on both sides into the sealing seat
with oil-resistant seal, optionally with steam-resistant seal (up to +200 °C)
100% tightness reduces the cost of compressed air production
easy to connect, secured against accidental opening: the coupling must be tightened after connection
designed for absolutely safe connections in industry and construction

SSGA bayonet couplings with external thread
Order number	Thread mm	DN	b mm	h mm	SW (key)	Weight g
SSGA38	G 3/8"	10	63	72	24	320
SSGA12	G 1/2"	13	63	73	24	351
SSGA34	G 3/4"	17	63	73	24	345
SSGA10	G 1"	17	63	85	36	401
SSGA34NPT	NPT 3/4"	17	63	73	24	280
SSGA10NPT	NPT 1"	17	63	83	36	365

Bestsellers

923 Kč –4 %

Bayonet coupling with external thread G 3/4" SSG

(20 pcs)

Code: SSGA34

Was: 923 Kč (–4 %)

877 Kč

(725 Kč excl. VAT)

1 585 Kč –4 %

Bayonet Coupling with Male NPT 1" SSG

Code: SSGA10NPT

Was: 1 585 Kč (–4 %)

1 506 Kč

(1 245 Kč excl. VAT)

1 427 Kč –4 %

Bayonet coupling with NPT 3/4" SSG male thread

Code: SSGA34NPT

Was: 1 427 Kč (–4 %)

1 356 Kč

(1 121 Kč excl. VAT)

1 098 Kč –5 %

Bayonet coupling with external thread R 1" SSG

Code: SSGA10

Was: 1 098 Kč (–5 %)

1 043 Kč

(862 Kč excl. VAT)

923 Kč –4 %

Bayonet coupling with external thread G 1/2" SSG

Code: SSGA12

Was: 923 Kč (–4 %)

877 Kč

(725 Kč excl. VAT)

923 Kč –4 %

Bayonet coupling with external thread G 3/8" SSG

Code: SSGA38

Was: 923 Kč (–4 %)

877 Kč

(725 Kč excl. VAT)

Show more products

6 items total

923 Kč –4 %

Bayonet coupling with external thread G 3/4" SSG

(20 pcs)

725 Kč excl. VAT

877 Kč / pcs

High-quality bayonet coupling with external thread G 3/4" according to DIN 3238 for a stable compressed air connection system.For a simple and fast connection. Maximum pressure...

Code: SSGA34

923 Kč –4 %

Bayonet coupling with external thread G 1/2" SSG

725 Kč excl. VAT

877 Kč / pcs

High-quality bayonet coupling with external thread G 1/2" according to DIN 3238 for a stable compressed air connection system.For a simple and fast connection. Maximum pressure...

Code: SSGA12

923 Kč –4 %

Bayonet coupling with external thread G 3/8" SSG

725 Kč excl. VAT

877 Kč / pcs

High-quality bayonet coupling with external thread G 3/8" according to DIN 3238 for a stable compressed air connection system.For a simple and fast connection. Maximum pressure...

Code: SSGA38

1 098 Kč –5 %

Bayonet coupling with external thread R 1" SSG

862 Kč excl. VAT

1 043 Kč / pcs

High-quality bayonet coupling with external thread R 1" according to DIN 3238 for a stable compressed air connection system.For a simple and fast connection. Maximum pressure 16...

Code: SSGA10

1 585 Kč –4 %

Bayonet Coupling with Male NPT 1" SSG

1 245 Kč excl. VAT

1 506 Kč / pcs

High-quality bayonet coupling with NPT 1" male thread according to DIN 3238 for a stable compressed air connection system. For a simple and fast connection. Maximum pressure 16...

Code: SSGA10NPT

1 427 Kč –4 %

Bayonet coupling with NPT 3/4" SSG male thread

1 121 Kč excl. VAT

1 356 Kč / pcs

High-quality bayonet coupling with NPT 3/4" male thread according to DIN 3238 for a stable compressed air connection system. For a simple and fast connection. Maximum pressure...

Code: SSGA34NPT

SSGA bayonet couplings with external thread
