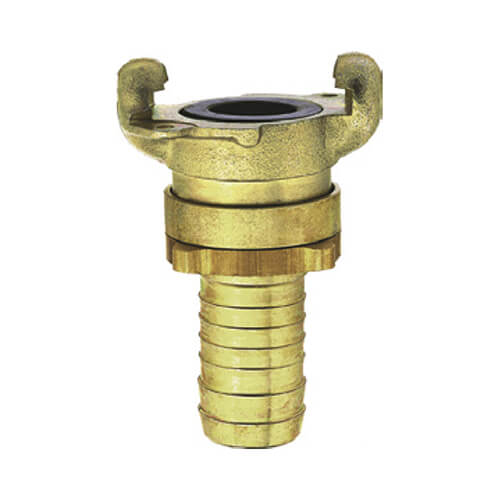

SSG bayonet couplings with hose barb

high quality safety couplings, body made of tempered cast iron, hose shank made of steel, with special contour grooves, galvanized and yellow chromed, with safety double tongue
reinforced thread protection ring and seals inserted on both sides into the sealing seat
with oil-resistant seal, optionally with steam-resistant seal (up to +200 °C)
100% tightness reduces the cost of compressed air production
easy to connect, secured against accidental opening: the coupling must be tightened after connection
designed for absolutely safe connections in industry and construction

SSG bayonet couplings with hose barb
Order number	Hose barb mm	DN	b mm	h mm	Weight g
SSG10	10 mm	6,5	63	100	309
SSG13	13 mm	10	63	100	309
SSG15	15 mm	11	63	100	316
SSG19	19 mm	15	63	100	319
SSG25	25 mm	18	63	100	346
SSG32	32 mm	18	63	135	464
