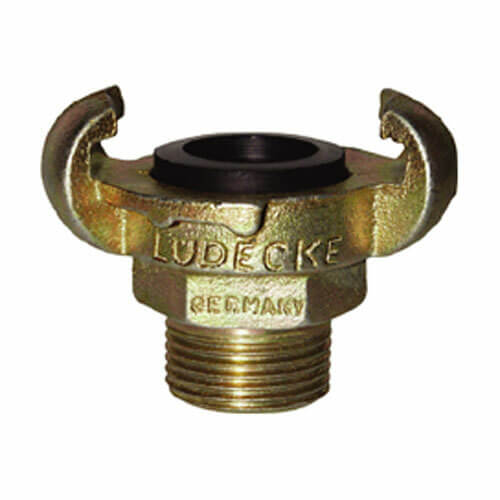

Bayonet couplings KAG male thread (formerly DIN 3481)
 |
|
Bayonet couplings with external thread (formerly DIN 3481) |
||||||
| Ordering number |
Thread | DN | b mm |
h mm |
SW (key) |
Weight g |
| KAG14 | G 1/4" | 6 | 63 | 50 | 22 | 157 |
| KAG38 | G 3/8" | 9 | 63 | 52 | 27 | 170 |
| KAG12 | G 1/2" | 13 | 63 | 47 | 27 | 162 |
| KAG34 | G 3/4" | 17 | 63 | 50 | 32 | 175 |
| KAGO34* | G 3/4" | 17 | 63 | 41 | - | 150 |
| KAG10 | G 1" | 20 | 63 | 47 | 40 | 174 |
| KAGO10* | G 1" | 20 | 63 | 41 | - | 165 |
| KAG54 | G 1 1/4" | 20 | 63 | 52 | 46 | 230 |
| KAG12NPT | NPT 1/2" | 13 | 63 | 49 | 27 | 166 |
| KAG34NPT | NPT 3/4" | 18 | 63 | 49 | 32 | 176 |
| KAG10NPT | NPT 1" | 20 | 63 | 48 | 40 | 196 |
| * without hex for key | ||||||
