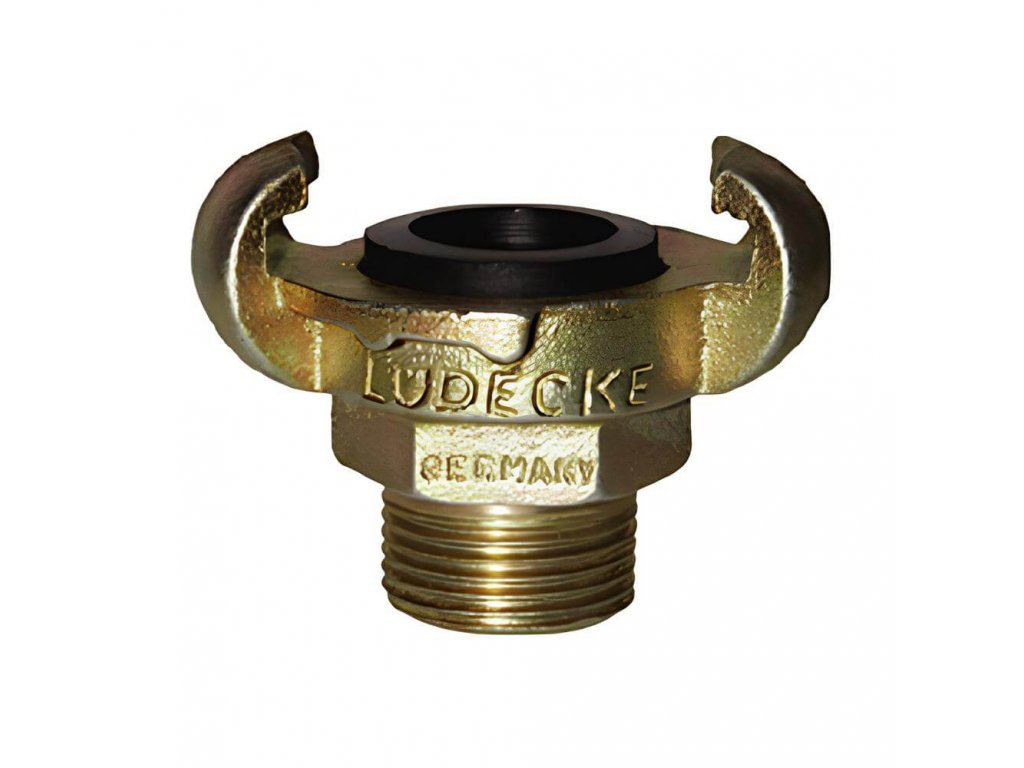

Bayonet coupling with external thread NPT 3/4" SKG
Code: KAG34NPT
Product detailed description
KAG bayonet coupling with NPT 3/4" male thread (formerly DIN 3481)
- Robust couplings made of tempered cast iron, galvanized and yellow chromated, with safety double tongue
- With GOER oil-resistant seal, on request available with GDOR steam-resistant seal (up to +200°C)
- Universal couplings, the world's leading system for compressed air connections in construction and industry
Additional parameters
| Category: | Bayonet couplings KAG male thread (formerly DIN 3481) |
|---|---|
| Pressure: | 10 bars |
| Weight: | 176 g |
| DN: | 18 |
| Material: | Cast Iron |
| Medium: | Compressed air |
| Standard: | DIN 3489 |

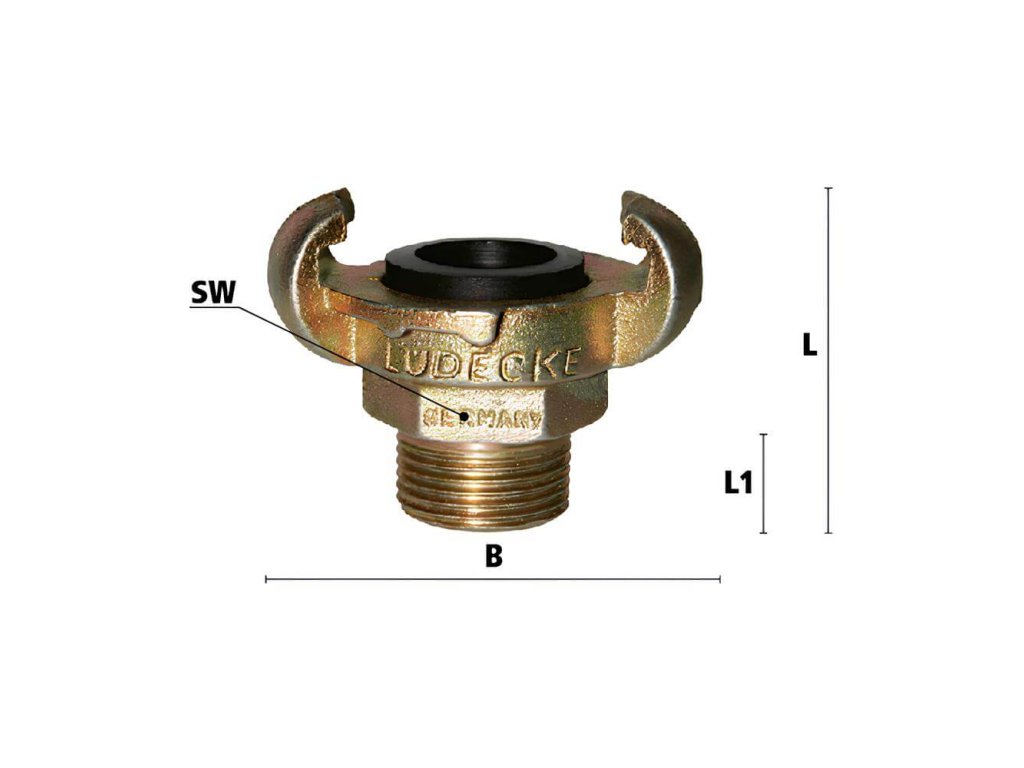

| SW (key): | 32 |
| Temperature: | -40 / +95 °C |
| Seals: | Perbunan |
| Thread type: | ISO 228 |
| Thread: | NPT 3/4" |
| Bayonet: | 42 mm |
| Connection system: | Bayonet couplings |
