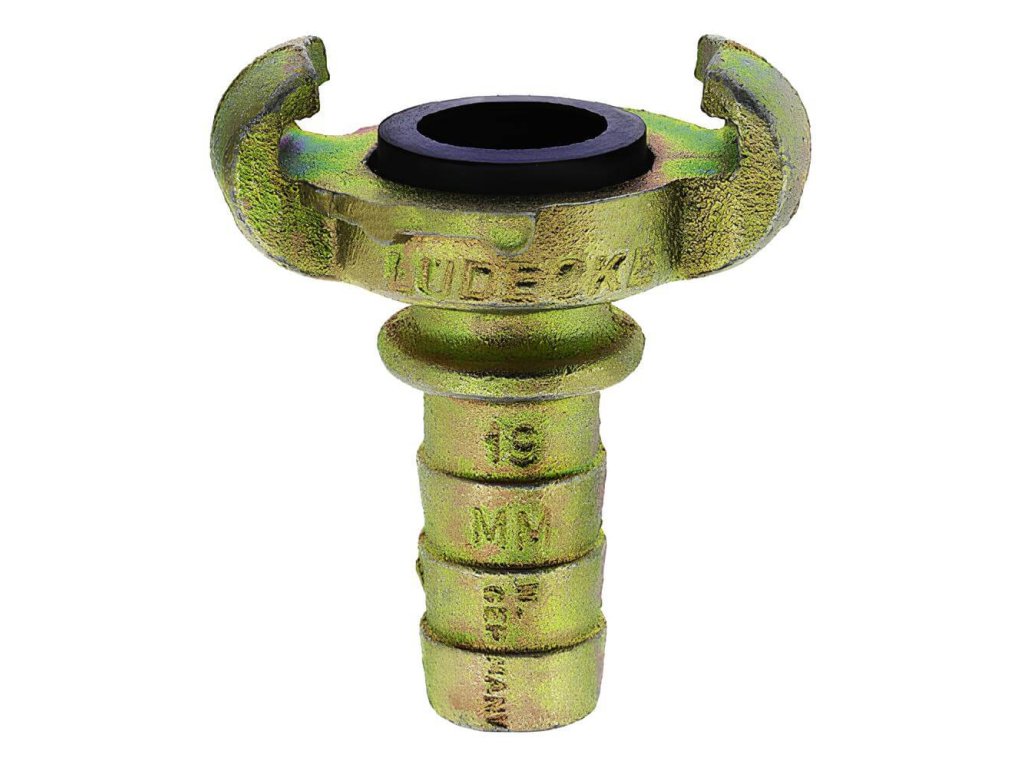

Bayonet coupling with mandrel on flat hose 19 mm with SKG retaining ring

Code: SKB19FL
349 Kč –4 %
Bayonet coupling with mandrel on flat hose 19 mm with SKG retaining ring
349 Kč –4 % 332 Kč / pcs 274 Kč excl. VAT 3 320 Kč / 10 pcs
up to 14 days (8 pcs)
Delivery to:
24.04.2025
Delivery offer

Bayonet coupling with shank for 19 mm flat hose with retaining ring and integrated SK-type clamps...FL is the most widely used connection system for compressedair lines in the construction and industrial sectors. It provides users with a high quality joint solution up to a maximum pressure of 10 bar and at temperatures of -40°C/+95°C. Width 63 mm, height 73,5 mm.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

Bayonet coupling with 19 mm hose shank and 24 mm hose ring with integrated clamps type SK...FL

  • Robust couplings made of tempered cast iron, galvanized and yellow chromated, with safety double tongue
  • With GOER oil-resistant seal, on request available with GDOR steam-resistant seal (up to +200°C)
  • Universal couplings, the world's leading system for compressed air connections in construction and industry

Additional parameters

Category: SKB bayonet couplings with mandrel and retaining ring
Pressure: 10 bars
Weight: 160 g
DN: 15
Material: Cast Iron
Medium: Compressed air
Standard: DIN 3489
Temperature: -40 / +95 °C
Seals: Perbunan
Thorn on the hose: 19 mm
Thread type: ISO 228
Bayonet: 42 mm
Circlip diameter: 24 mm
Connection system: Bayonet couplings
