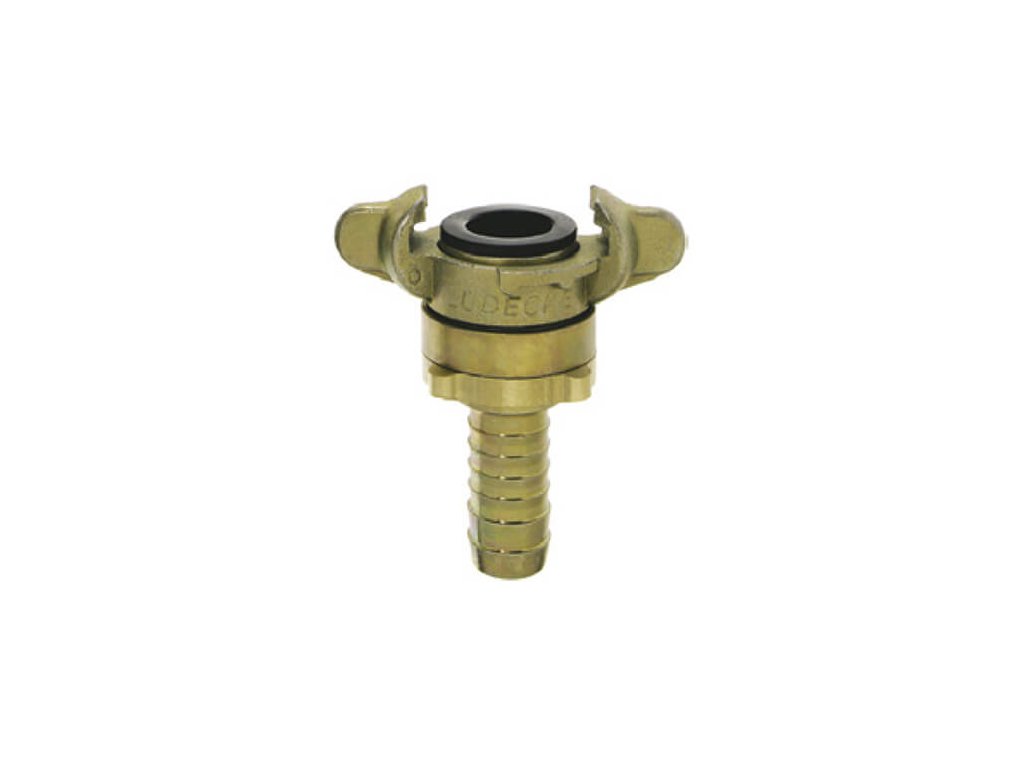

Bayonet coupling with mandrel for 19 mm hose, with left closure for SSGL19S
Code: SSGL19S
Product detailed description
SSGL bayonet coupling with locking ring and hose shank, hose diameter 19 mm, left-hand closing
- Robust couplings made of tempered cast iron or steel, galvanised and yellow chromed, with safety double reed
- With GOER oil-resistant seal; on request, available with steam-resistant seal (up to 200°C), partly with brass seal
- Important: due to the left-hand cap, they cannot be connected to standard bayonets!
- Used especially for joints in the chemical and petrochemical industry, where they are used to prevent damage caused by accidental disconnection by habit in other pipelines, e.g. compressed air, gaseous media, steam, etc.
Additional parameters
| Category: | SSGL bayonet clutches with mandrel and left-hand closing |
|---|---|
| Pressure: | 16 bar |
| Weight: | 367 |
| DN: | 16 |
| Material: | Steel, Cast Iron |
| Medium: | Various |
| Temperature: | -40 / +95 °C |
| Seals: | Perbunan |
| Thorn on the hose: | 19 mm |
| Thread type: | ISO 228 |
| Bayonet: | 42 mm |
| Retaining ring: | Yes |
| Connection system: | Bayonet couplings |
| Typ: | FASHIONS |
