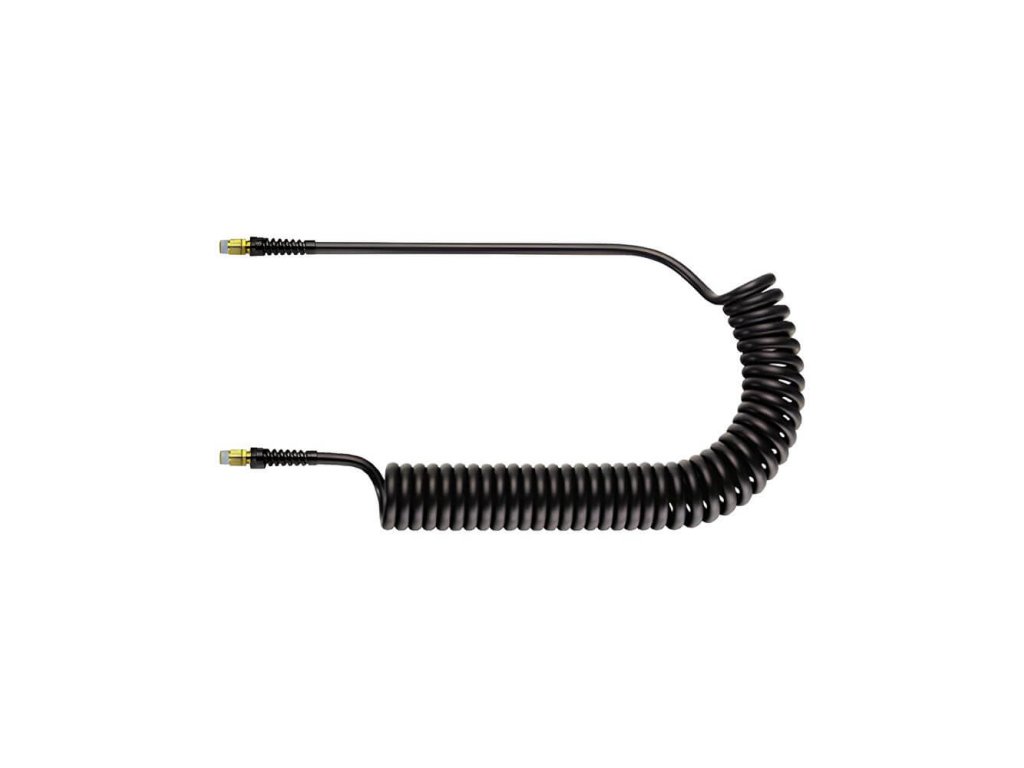

Antistatic spiral hose with screw connection 1/4" - 8/6 mm, length 6 m
Code: PUAS686SVKProduct detailed description
Spiral hoses in antistatic design - PUAS686SVK
- designed for explosion hazardous environments in accordance with the directives 94/9/EG (ATEX), with external surface resistance R < 106 Ohm
- hose resists microbes, hydrolysis and UV radiation, also suitable for vacuum
- for use in electronic component manufacturing, parts cleaning and sorting and other applications with static charge dissipation requirements
- working pressure: 10 bar
- working temperature: -20/+85 °C
Additional parameters
Category: | Antistatic spiral hoses A.S.S. |
---|---|
Pressure: | 10 bars |
Barva: | Black |
Ends: | 1/4" thread |
Material: | PU Antistatic |
Medium: | Air |
Circumferential length: | 7.5 m |
Working length: | 6 m |
Temperature: | -20 / 85 °C |
Outer diameter: | 8 mm |
Inner diameter: | 6 mm |
