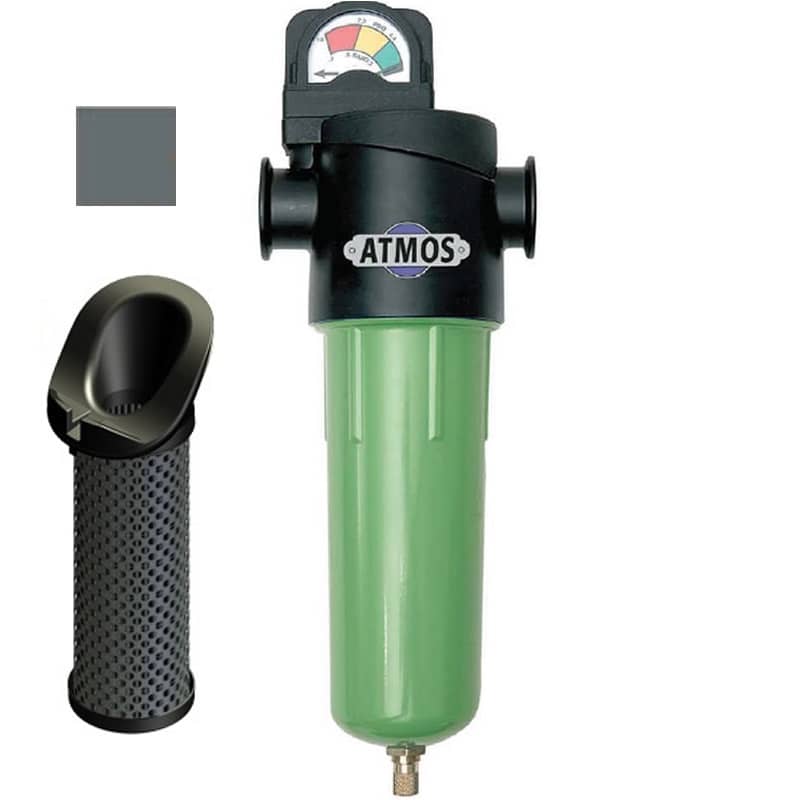

    Active filtration for compressed air CF

    Hankison is one of the leading manufacturers of compressed air filters. The products are renowned worldwide for their outstanding performance, long-standing proven reliability and, last but not least, superior performance. The NGF series is based on the application of the latest materials used for compressed air filtration. The air quality of the filters meets the internationally recognised ISO 8573 standard with ISO 12500 testing performance.

    Professional filters for compressed air CF series
    • Removes liquid and solid particles larger than 0.01 µm.
    • Residual oil content at 20°C and 1 bar a.: 0,003 ppm w/w
    • Maximum permissible input load 0,01 ppm w/w
    • ISO 8573.1 and for testing according to ISO 12500
    • Particle quality classes : class 1, oil : class 1
    		 Profesionální filtr pro stlačený vzduch řady CF

    Dimensions of NGF filters for compressed air - CF series
    Model Flow Pressure Weight AND B C D Connecting Spare
    m³/h l/min bar kg mm mm mm mm R" liner
    F02-B-CF 34 566 16 0,8 113 205 171 102 1/4" CF-02
    F03-B-CF 59 983 16 0,8 113 205 171 102 3/8" CF-03
    F04-B-CF 85 1 416 16 0,9 113 252 216 102 1/2" CF-04
    F06-B-CF 127 2 116 16 1,4 132 262 219 127 3/4" CF-06
    F07-B-CF 175 2 916 16 1,4 132 262 219 127 3/4" CF-07
    F08-B-CF 267 4 450 16 1,5 132 326 283 127 1" CF-08
    F10-B-CF 437 7 283 16 3,8 200 336 276 178 1 1/2" CF-10
    F11-B-CF 612 10 200 16 4,5 200 433 373 178 1 1/2" CF-11
    F12-B-CF 681 11 350 16 5,3 200 566 505 178 2" CF-12
    F13-B-CF 993 16 550 11 8,4 230 634 550 204 2 1/2" CF-13
    F14-B-CF 1 317 21 950 11 8,4 230 634 550 204 2 1/2" CF-14
    F15-B-CF 1 750 29 166 11 8,4 230 634 550 204 2 1/2" CF-15
    F16-B-CF 2 039 33 983 11 12,5 230 817 732 204 3" CF-16
    F17-B-CF 2 549 42 483 11 28,7 230 1 085 1 000 204 3" CF-17

    FILTRATION CORRECTION FACTOR NGF CF
    OPERATING OVERPRESSURE bar 4 5 6 7 8 10 12 14 16
    CORRECTION FACTOR 0,63 0,75 0,88 1 1,13 1,38 1,65 1,87 2,13

    #ShowMore#

    Filtrace stlačeného vzduchu - nová generace Hankison

    Mezinárodní normy pro testování a měření kvality stlačeného vzduchu

    Třídy kvality stlačeného vzduchu dle normy ISO 8573.1:2009

    Tabulka filtrů stlačeného vzduchu NGF značky Hankison

    Filtrační elementy NGF jsou zkontrolovány dle normy ISO 12500; přičemž byla dodržena kvalita vzduchu dle normy ISO 8573.1:2009
