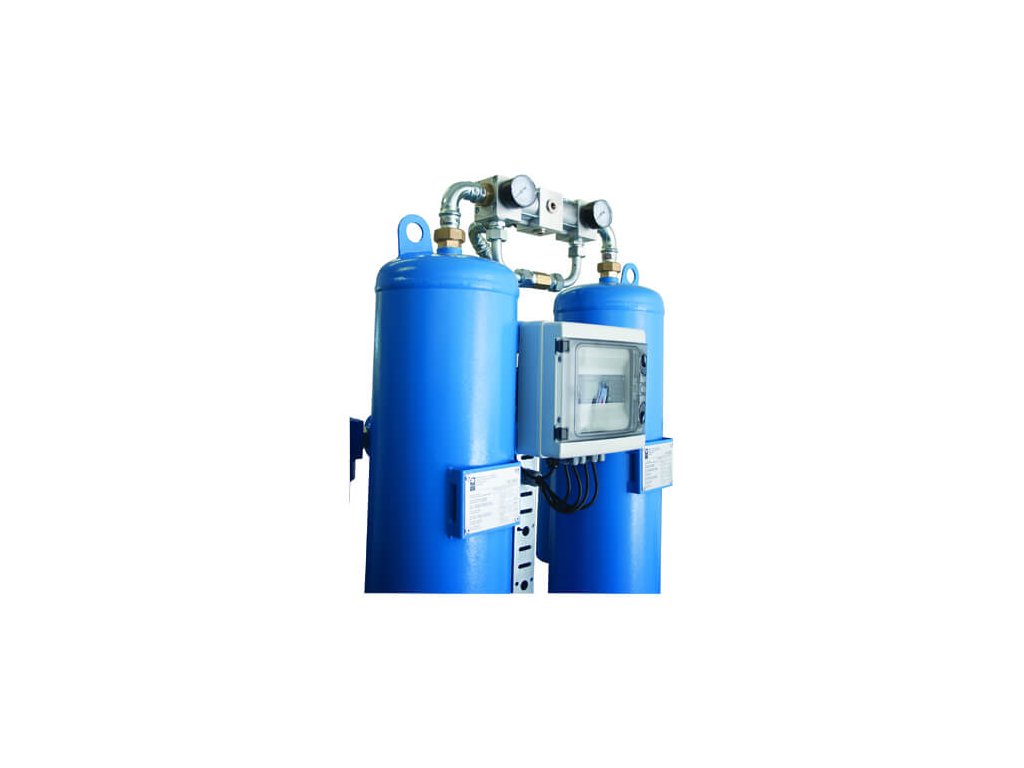

    Adsorption air dryer FDRY-3000

    Code: FDRY-3000
    Not rated
    Brand: OMEGA AIR
    FREEFREE
    Adsorption air dryer FDRY-3000
    1 Kč / pcs 1 Kč excl. VAT
    up to 14 days
    Delivery to:
    17.03.2025
    Delivery offer

    The FDRY-3000 Adsorption Dryer is designed for continuous separation of water vapour from compressed air with a flow rate of up to 39,000 l/min at a maximum pressure of 16 bar and pressure dew point reduction down to -70°C. Adsorption under pressure occurs in the first column, while the second column regenerates using some of the already dried air, which is purged and vented to the surroundings. Outdoor installations; processes in the food, beverage, chemical, pharmaceutical and electronics industries with very high dry air requirements.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    BDRY filtry omega AIR susicka vzduchu kompresor kit servis removebg
    Original parts
    FREEFREE 46 316 Kč –2 %
    Service KIT after a year for adsorption dryer FDRY-3000-1R
    up to 14 days
    37 512 Kč excl. VAT
    45 390 Kč

    Service KIT after one year of operation Omega Air FDRY-3000-1R series adsorption dryer includes a replacement dust filter microfilter cartridge and replacement silencers for...

    Code: FDRY-3000-1R
    BDRY servis omega AIR susicka vzduchu kompresor kit servis removebg
    Original parts
    FREEFREE 91 748 Kč –2 %
    Service KIT 2 years for adsorption dryer FDRY-3000-2R
    up to 14 days
    74 308 Kč excl. VAT
    89 913 Kč

    Service KIT after 2 years of operation of the Omega Air adsorption dryer FDRY-3000 series includes a replacement microfilter cartridge, dust filter and replacement silencers,...

    Code: FDRY-3000-2R
    BDRY absorbent servis omega AIR susicka vzduchu kompresor kit servis removebg
    Original parts
    FREEFREE 212 069 Kč –100 %
    Service KIT 4 years for adsorption dryer FDRY-3000-4R
    up to 14 days
    1 Kč excl. VAT
    1 Kč

    Service KIT after 4 years of operation of the Omega Air adsorption dryer FDRY-3000 series includes a replacement microfilter cartridge, dust filter and replacement silencer,...

    Code: FDRY-3000-4R
    Filter insert for AFS-170 microfilter
    Sellout Original parts
    4 378 Kč –2 %
    Filter insert for AFS-170 microfilter
    Stock (3 pcs)
    3 545 Kč excl. VAT
    4 290 Kč

    The AFS filter insert is used to remove the largest mechanical impurities from compressed air up to 0.01 um according to ISO 8573-1 class 1. Easy replacement thanks to removable...

    Code: AFS-170V
    Filter insert for pre-filter AFM-60
    Sellout Original parts
    1 982 Kč –2 %
    Filter insert for pre-filter AFM-60
    Stock (1 pcs)
    1 605 Kč excl. VAT
    1 942 Kč

    AFM prefilters according to ISO 8573.1. Filtration capacity 0,1 um, residual oil 0,1 mg/m3. AFM filters are used to remove coarse mechanical impurities from compressed air and...

    Code: AFM-60V
    Filter insert for dust filter AFR-20
    Sellout Original parts
    1 115 Kč –1 %
    Filter insert for dust filter AFR-20
    Stock (1 pcs)
    903 Kč excl. VAT
    1 093 Kč

    AFR dust filters according to ISO 8573.1. Filtration capacity 1 um. AFR filters are designed for systems with high dust content, typically used as an outlet filter on adsorption...

    Code: AFR-20V
    Show all related products Previous product Next product

    Product detailed description

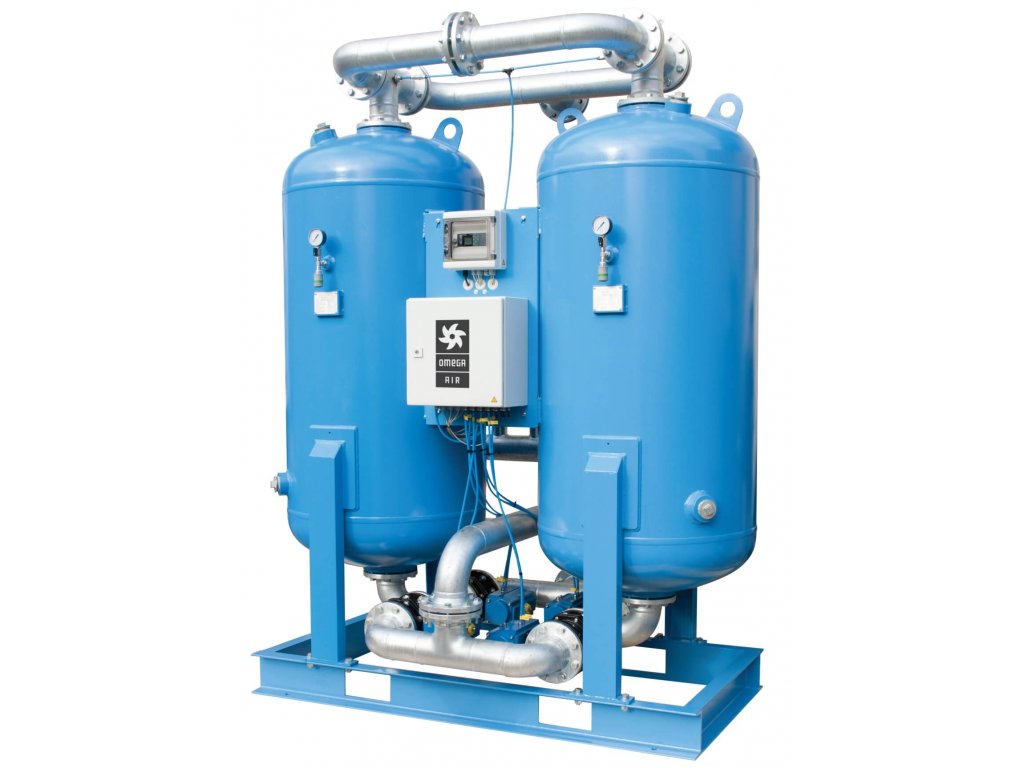

    FDRY-3000 Compressed Air Compressor Adsorption Dryer

    • adsorption dryers for perfect removal of moisture from compressed air
    • pressure dew point -40 °C as standard, also available with dew point -70 °C on request
    • operation control by SIEMENS control unit, optionally with control system with dew point control
    • bDRY dryers are supplied with an inlet microfilter and an outlet dust filter
    • designed for industrial plants with high air quality requirements
    • important note: adsorption dryers require up to 20% of the air supply to operate
    • note: dryers are equipped with webserver access
    • reference conditions for flow measurement: temperature +20 °C, inlet air +35 °C, working pressure 7 bar, dew point -40 °C. For conditions other than the reference, a correction factor must be used for the calculation - please contact our company.

    Čtyři nezávisle řízené ventily adsorpční sušičky, Kompaktní řídící bloky, Tlakoměry, Řídící jednotka

    Použité komponenty, Adsorpční sušičky

    adsorpční sušička kompresoru, Desetiminutový provozní cyklus, Energeticky úsporné řízení podle rosného bodu (DPD), Energetické úspory (stand-by)

    Snadná údržba

    Technická data sušení stlačeného vzduchu B-DRY

    FYZIKÁLNÍ TEORIE, ADSORPČNÍ SUŠIČKY, ADSORPCE, Dvě vrstvy vysoce kvalitního adsorbentu

    Additional parameters

    Category: Compressed Air Moisture Removal Air Dryers
    Pressure: 16 bar
    Connecting: flange DN80
    Mains voltage: 230/50 V/Hz
    Dimensions: 1750 x 800 x 2250 mm
    Flow: 39,000 l/min
    Equipment:: Siemens control unit, Filtration
    Pressure dew point: -70°C, -40 °C, -25 °C
    Dryer type: Adsorption dryer
