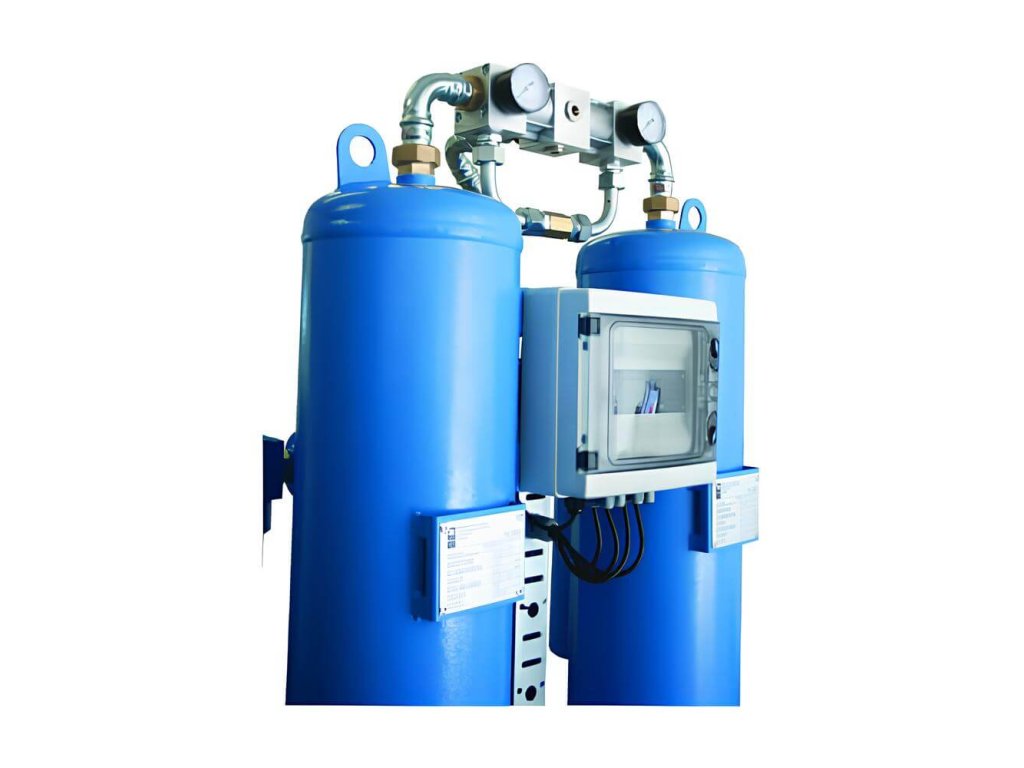

    Adsorption air dryer BDRY-300

    Code: BDRY-300
    Not rated
    Brand: OMEGA AIR
    FREEFREE
    Adsorption air dryer BDRY-300
    1 Kč / pcs 1 Kč excl. VAT
    up to 14 days
    Delivery to:
    17.03.2025
    Delivery offer

    Adsorption dryer BDRY-300 designed for permanent separation of water vapour from compressed air with a flow rate of up to 4,183 l/min at a maximum pressure of 16 bar and pressure dew point reduction down to -70°C. Adsorption under pressure occurs in the first column, while the second column regenerates using some of the already dried air, which is purged and vented to the surroundings. Outdoor installations; processes in the food, beverage, chemical, pharmaceutical and electronics industries with very high dry air requirements.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    ADRY OS MC rosny bod mereni adry susicka vzduchu omega air tlak kompresor 2 (1)
    Original parts
    FREEFREE 4 864 Kč –1 %
    Measuring chamber sensor dewy point - BDRY-MK
    up to 14 days
    3 940 Kč excl. VAT
    4 767 Kč

    Measuring chamber for dew point sensor - for regeneration air saving - BDRY-MK. B-DRY dryers can operate in two operating modes depending on the settings of the control unit....

    Code: BDRY-MK
    ADRY OS220 rosny bod mereni adry susicka vzduchu omega air tlak kompresor 2 (1)
    Original parts
    FREEFREE 47 431 Kč –2 %
    Dew point sensor - BDRY-OS
    up to 14 days
    38 416 Kč excl. VAT
    46 483 Kč

    Dew point sensor including cable - for air saving regeneration - BDRY-OS. B-DRY dryers can operate in two operating modes depending on the settings of the control unit. Fixed...

    Code: BDRY-OS
    bdry AO kabel susicka vzduchu adsorpcni kondenzat kompresor (1)
    Original parts
    FREEFREE 8 553 Kč –99 %
    Cable for analog output - BDRY-AO
    up to 14 days
    1 Kč excl. VAT
    1 Kč

    Cable for analogue output of adsorption dryers - BDRY-AO. B-DRY dryers can operate in two operating modes depending on the settings of the control unit. Fixed Cycle Mode -...

    Code: BDRY-AO
    BDRY filtry omega AIR susicka vzduchu kompresor kit servis removebg
    Original parts
    FREEFREE 13 788 Kč –1 %
    Service KIT after a year for adsorption dryer BDRY-300-1R
    up to 14 days
    11 168 Kč excl. VAT
    13 513 Kč

    After one year of operation, the Omega Air BDRY-300 to BDRY-400 series adsorption dryer service KIT includes a replacement microfilter cartridge, dust filter and replacement...

    Code: BDRY-300-1R
    BDRY servis omega AIR susicka vzduchu kompresor kit servis removebg
    Original parts
    FREEFREE 73 010 Kč –2 %
    Service KIT 2 years for adsorption dryer BDRY-300-2R
    up to 14 days
    59 131 Kč excl. VAT
    71 549 Kč

    Service KIT after 2 years of operation of the adsorption dryer Omega Air series BDRY-300 - 400 includes a replacement filter cartridge for the microfilter, dust filter and...

    Code: BDRY-300-2R
    BDRY absorbent servis omega AIR susicka vzduchu kompresor kit servis removebg
    Original parts
    FREEFREE 119 149 Kč –2 %
    Service KIT 4 years for adsorption dryer BDRY-300-4R
    up to 14 days
    96 501 Kč excl. VAT
    116 766 Kč

    Service KIT after 4 years of operation of the adsorption dryer Omega Air BDRY-300 series includes a replacement microfilter cartridge, dust filter and replacement silencers, a...

    Code: BDRY-300-4R
    Filter insert for dust filter AFR-20
    Sellout Original parts
    1 115 Kč –1 %
    Filter insert for dust filter AFR-20
    Stock (1 pcs)
    903 Kč excl. VAT
    1 093 Kč

    AFR dust filters according to ISO 8573.1. Filtration capacity 1 um. AFR filters are designed for systems with high dust content, typically used as an outlet filter on adsorption...

    Code: AFR-20V
    Filter insert for pre-filter AFM-60
    Sellout Original parts
    1 982 Kč –2 %
    Filter insert for pre-filter AFM-60
    Stock (1 pcs)
    1 605 Kč excl. VAT
    1 942 Kč

    AFM prefilters according to ISO 8573.1. Filtration capacity 0,1 um, residual oil 0,1 mg/m3. AFM filters are used to remove coarse mechanical impurities from compressed air and...

    Code: AFM-60V
    Filter insert for AFS-170 microfilter
    Sellout Original parts
    4 378 Kč –2 %
    Filter insert for AFS-170 microfilter
    Stock (3 pcs)
    3 545 Kč excl. VAT
    4 290 Kč

    The AFS filter insert is used to remove the largest mechanical impurities from compressed air up to 0.01 um according to ISO 8573-1 class 1. Easy replacement thanks to removable...

    Code: AFS-170V
    Show all related products Previous product Next product

    Product detailed description

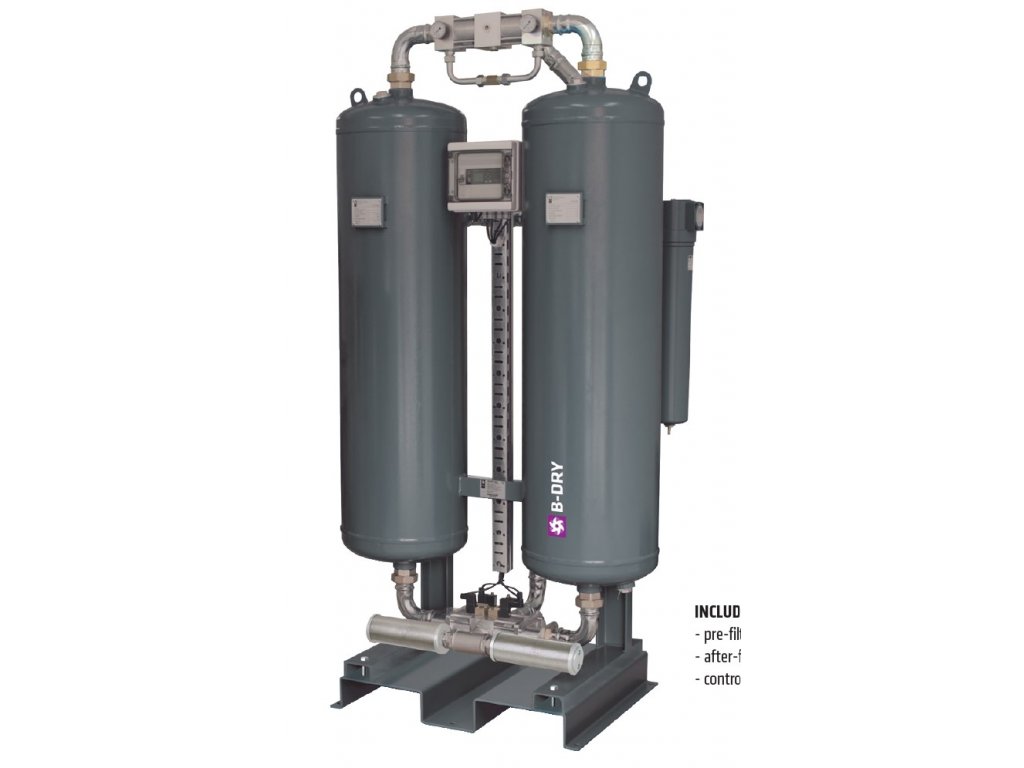

    Adsorption Dryer Compressed Air Compressor BDRY-300

    • adsorption dryers for perfect removal of moisture from compressed air
    • pressure dew point -40 °C as standard, also available with dew point -70 °C on request
    • operation control by SIEMENS control unit, optionally with control system with dew point control
    • bDRY dryers are supplied with an inlet microfilter and an outlet dust filter
    • designed for industrial plants with high air quality requirements
    • important note: adsorption dryers require up to 20% of the air supply to operate
    • note: dryers are equipped with webserver access
    • reference conditions for flow measurement: temperature +20 °C, inlet air +35 °C, working pressure 7 bar, dew point -40 °C. For conditions other than the reference, a correction factor must be used for the calculation - please contact our company.

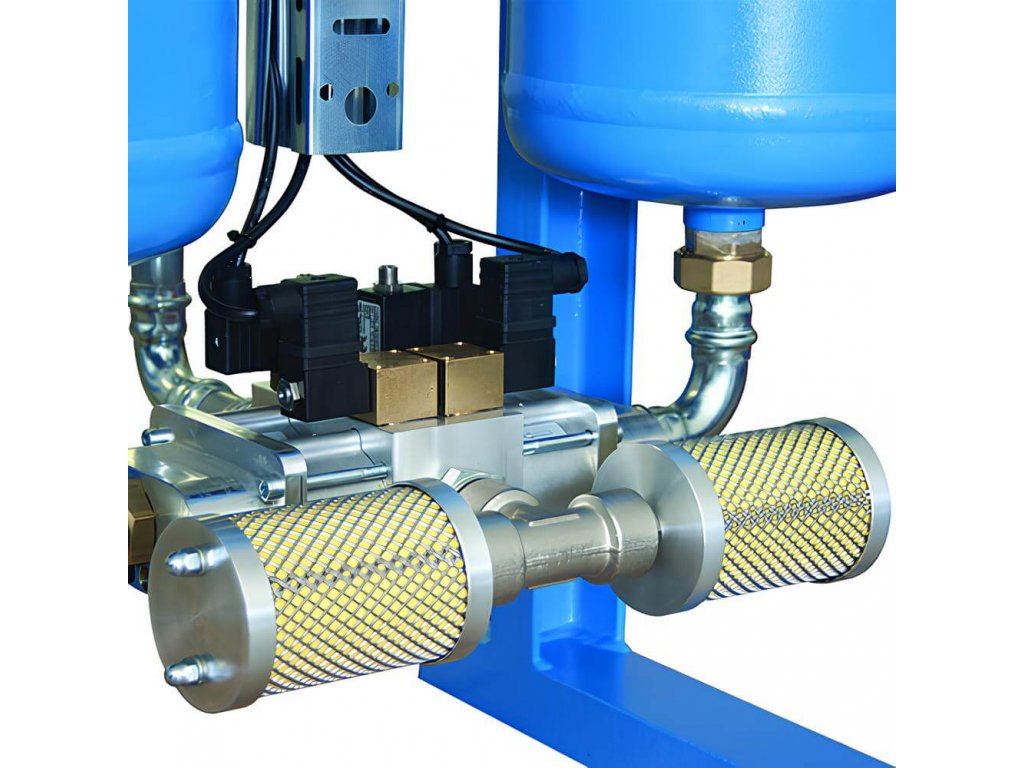

    Čtyři nezávisle řízené ventily adsorpční sušičky, Kompaktní řídící bloky, Tlakoměry, Řídící jednotka

    Použité komponenty, Adsorpční sušičky

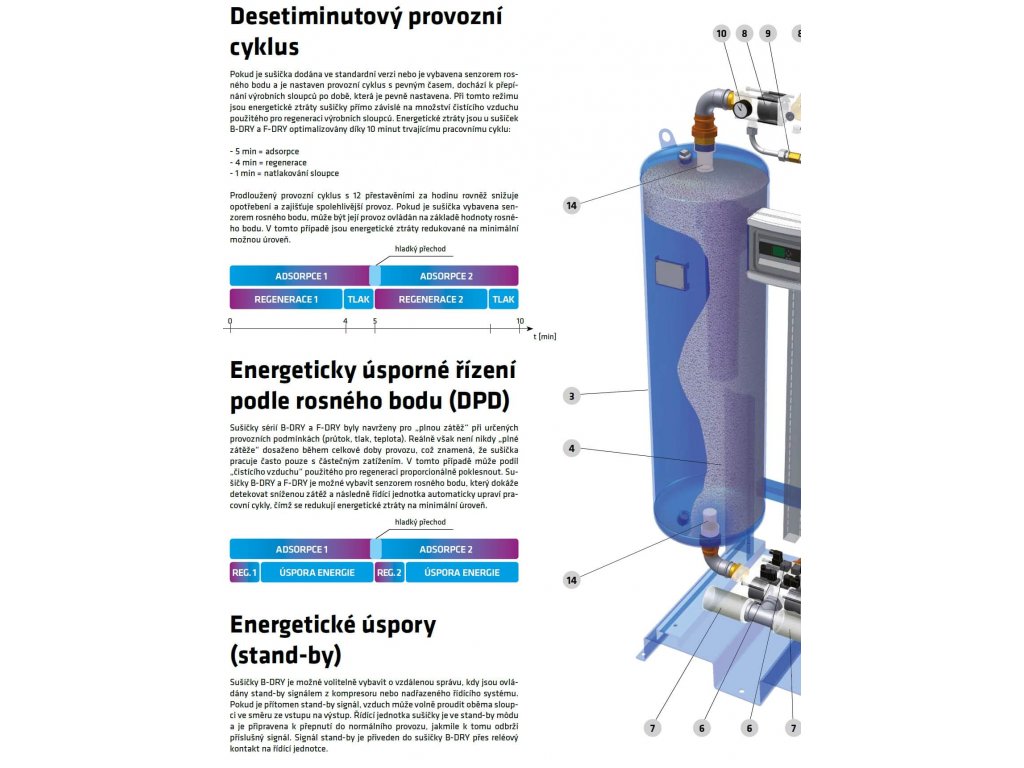

    adsorpční sušička kompresoru, Desetiminutový provozní cyklus, Energeticky úsporné řízení podle rosného bodu (DPD), Energetické úspory (stand-by)

    Snadná údržba

    Technická data sušení stlačeného vzduchu B-DRY

    FYZIKÁLNÍ TEORIE, ADSORPČNÍ SUŠIČKY, ADSORPCE, Dvě vrstvy vysoce kvalitního adsorbentu

    Additional parameters

    Category: Compressed Air Moisture Removal Air Dryers
    Pressure: 16 bar
    Connecting: 1 1/2"
    Mains voltage: 230/50 V/Hz

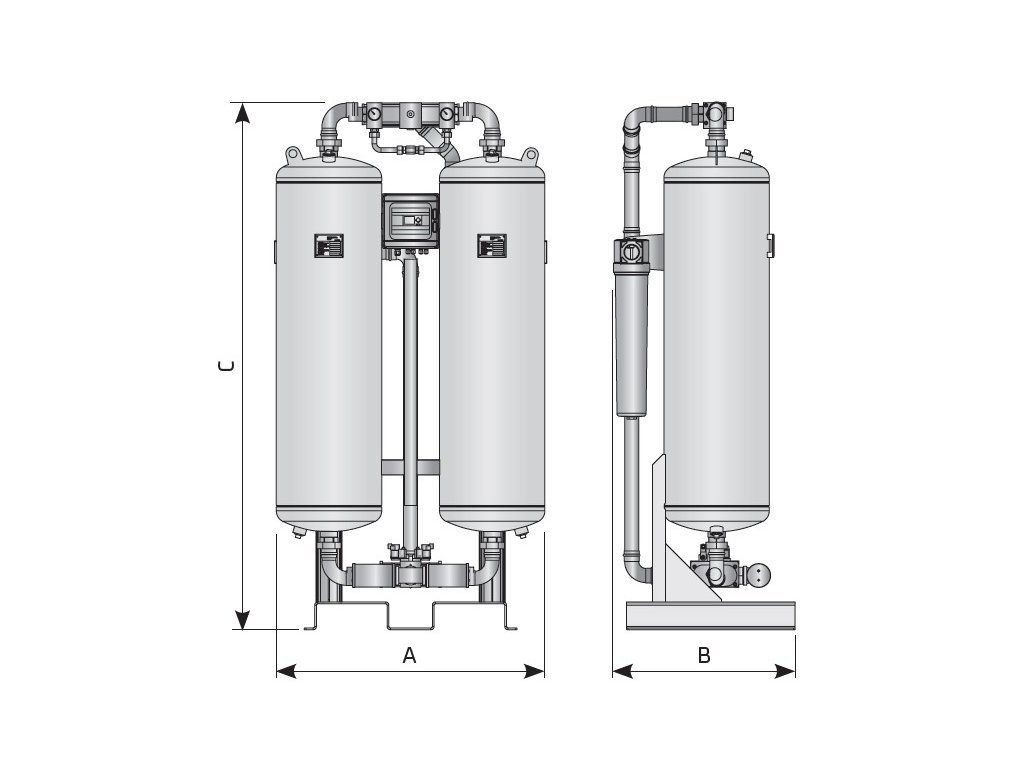

    Dimensions: 900 x 530 x 1620 mm
    Flow: 4,183 l/min
    Equipment:: Siemens control unit, Filtration
    Pressure dew point: -70°C, -40 °C, -25 °C
    Dryer type: Adsorption dryer
