    Adsorption air dryer ADRY-75

    Code: ADRY-75
    Tip
    Not rated
    Brand: OMEGA AIR
    FREEFREE 93 476 Kč –2 %
    Adsorption air dryer ADRY-75
    93 476 Kč –2 % 91 606 Kč / pcs 75 707 Kč excl. VAT
    up to 14 days
    Delivery to:
    17.03.2025
    Delivery offer

    The ADRY-75 Series Adsorption Dryer was designed for continuous separation of water vapor from compressed air at flow rates up to 1,250 l/min. Reduces the pressure dew point down to -40°C. It consists of an upper and lower control block, a control unit with LED display and two alternating columns filled with adsorption material. Adsorption at pressures of up to 16 bar occurs in the first column, while the second column regenerates using a portion of the already dried air, which is purged and vented to the surroundings. This task consumes about 20% of the machine's power.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    aaf t
    Tip
    5 461 Kč –2 %
    AAFM pre-filter - 3/4" - 2,000 l/min
    Stock (6 pcs)
    4 423 Kč excl. VAT
    5 352 Kč

    AAFM pre-filter in 3/4" design for removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed...

    Code: AAFM-120
    BDRY filtry omega AIR susicka vzduchu kompresor kit servis removebg
    Original parts
    FREEFREE 5 834 Kč –2 %
    Service KIT after a year for adsorption dryer ADRY-60-1R
    Stock (1 pcs)
    4 725 Kč excl. VAT
    5 717 Kč

    After one year of operation, the service KIT for the Omega Air ADRY-60 to ADRY-75 series adsorption dryer includes a replacement microfilter cartridge, dust filter and...

    Code: ADRY-60-1R
    A DRY service kits 2 year (1)
    Original parts
    FREEFREE 19 905 Kč –2 %
    Service KIT 2 years for adsorption dryer ADRY-75-2R
    Stock (1 pcs)
    16 121 Kč excl. VAT
    19 507 Kč

    Service KIT 2 years of operation of the adsorption dryer Omega Air series ADRY-75 includes a replacement filter cartridge ;microfilter, dust filter and replacement silencer,...

    Code: ADRY-75-2R
    A DRY service kits 4 year (1)
    Original parts
    FREEFREE 48 614 Kč –2 %
    Service KIT 4 years for adsorption dryer ADRY-75-4R
    up to 14 days
    39 374 Kč excl. VAT
    47 642 Kč

    Service KIT after 4 years of operation of the adsorption dryer Omega Air series ADRY-75 includes replacement filter cartridges, silencers, check valve, gaskets, valve kit,...

    Code: ADRY-75-4R
    ADRY OS220 rosny bod mereni adry susicka vzduchu omega air tlak kompresor 2 (1)
    Original parts
    FREEFREE 49 337 Kč –2 %
    Dew point sensor - ADRY-OSCB
    Stock (1 pcs)
    39 959 Kč excl. VAT
    48 350 Kč

    Dew point sensor including cable - for air saving regeneration - ADRY-OS. A-DRY dryers can operate in two operating modes depending on the settings of the control unit. Fixed...

    Code: ADRY-OSCB
    ADRY OS MC rosny bod mereni adry susicka vzduchu omega air tlak kompresor 2 (1)
    Original parts
    FREEFREE 4 864 Kč –1 %
    Measuring chamber sensor dewy point - ADRY-MK
    Stock (3 pcs)
    3 940 Kč excl. VAT
    4 767 Kč

    Measuring chamber for dew point sensor - for regeneration air saving - ADRY-MK. A-DRY dryers can operate in two operating modes depending on the settings of the control unit....

    Code: ADRY-MK
    ADRY ADC22 rosny bod mereni adry susicka vzduchu omega air tlak kompresor 2 (1) (1)
    Original parts
    FREEFREE 32 798 Kč –2 %
    Control unit Siemens ADC 2.2
    up to 14 days
    26 564 Kč excl. VAT
    32 142 Kč

    A-DRY adsorption dryers are equipped with the new generation ADC 4.0 electronic control unit. This version of the controller is easy to use and offers many innovative features....

    Code: ADRY-ADC22
    Filter insert for dust filter AFR-20
    Sellout Original parts
    1 115 Kč –1 %
    Filter insert for dust filter AFR-20
    Stock (1 pcs)
    903 Kč excl. VAT
    1 093 Kč

    AFR dust filters according to ISO 8573.1. Filtration capacity 1 um. AFR filters are designed for systems with high dust content, typically used as an outlet filter on adsorption...

    Code: AFR-20V
    Filter insert for AFS-170 microfilter
    Sellout Original parts
    4 378 Kč –2 %
    Filter insert for AFS-170 microfilter
    Stock (3 pcs)
    3 545 Kč excl. VAT
    4 290 Kč

    The AFS filter insert is used to remove the largest mechanical impurities from compressed air up to 0.01 um according to ISO 8573-1 class 1. Easy replacement thanks to removable...

    Code: AFS-170V
    Filter insert for pre-filter AFM-60
    Sellout Original parts
    1 982 Kč –2 %
    Filter insert for pre-filter AFM-60
    Stock (1 pcs)
    1 605 Kč excl. VAT
    1 942 Kč

    AFM prefilters according to ISO 8573.1. Filtration capacity 0,1 um, residual oil 0,1 mg/m3. AFM filters are used to remove coarse mechanical impurities from compressed air and...

    Code: AFM-60V
    Show all related products Previous product Next product

    Product detailed description

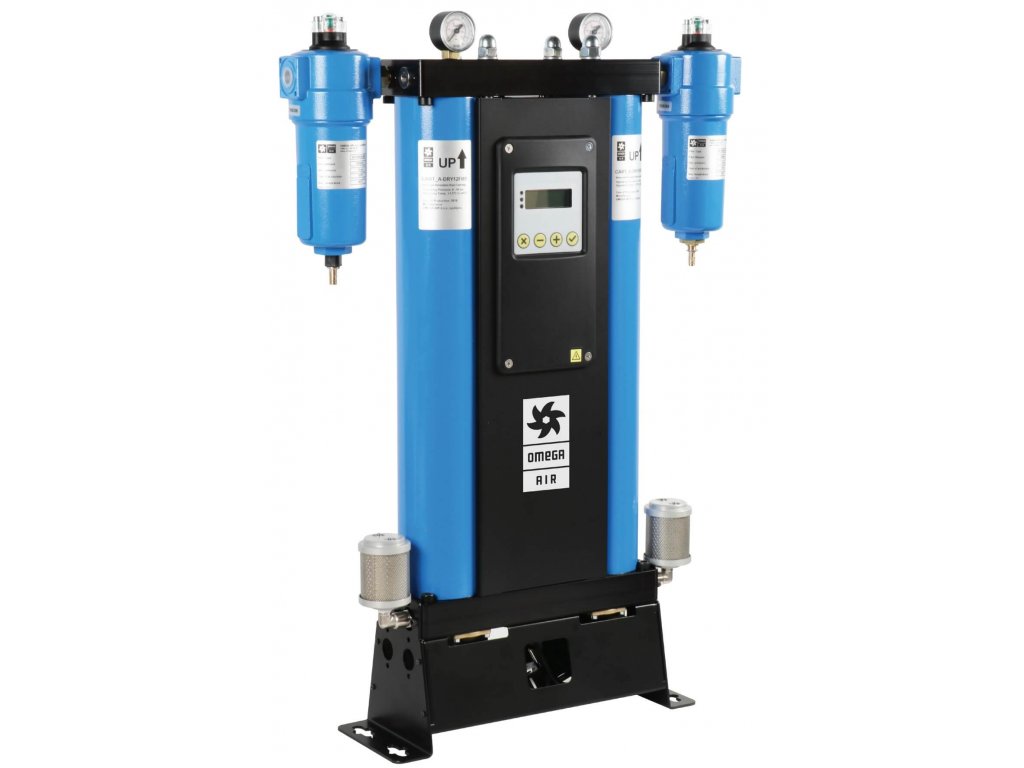

    Adsorption compressed air dryer ADRY-75

    • small adsorption dryers for perfect moisture removal from compressed air with tower regeneration by purging
    • standard version with dew point -40 °C; on request with dew point -25 °C or -70 °C
    • operating temperature +1.5 °C to +50 °C; electrical voltage 230 V 50/60 Hz, electrical protection IP65
    • modular concept allows extremely fast maintenance and reliable operation
    • improved adsorption capacity due to the use of two layers of adsorbent - molecular sieve and silica gel
    • aDC 4.0 electronic control unit with dew point sensor connection and webserver access
    • 4 control valves with diaphragms made of highly durable NBR reinforced PA, pressure gauges on the top side for column pressure reading
    • included in the scope of delivery inlet microfilter AFS 0,01 µm and outlet dust filter AFR 1 µm
    • designed for all applications with high minimum humidity requirements in compressed air
    • important note: A-DRY dryers consume approximately 15-20% of compressed air for regeneration of the production columns

    Použité komponenty adsorpční sušičky - série A-DRY

    Energetické úspory Adsorpční sušičky Desetiminutový Sušičky A-DRY je možné volitelně vybavit o vzdálenou provozní cyklus

    Snadná údržba Adsorpční sušičky

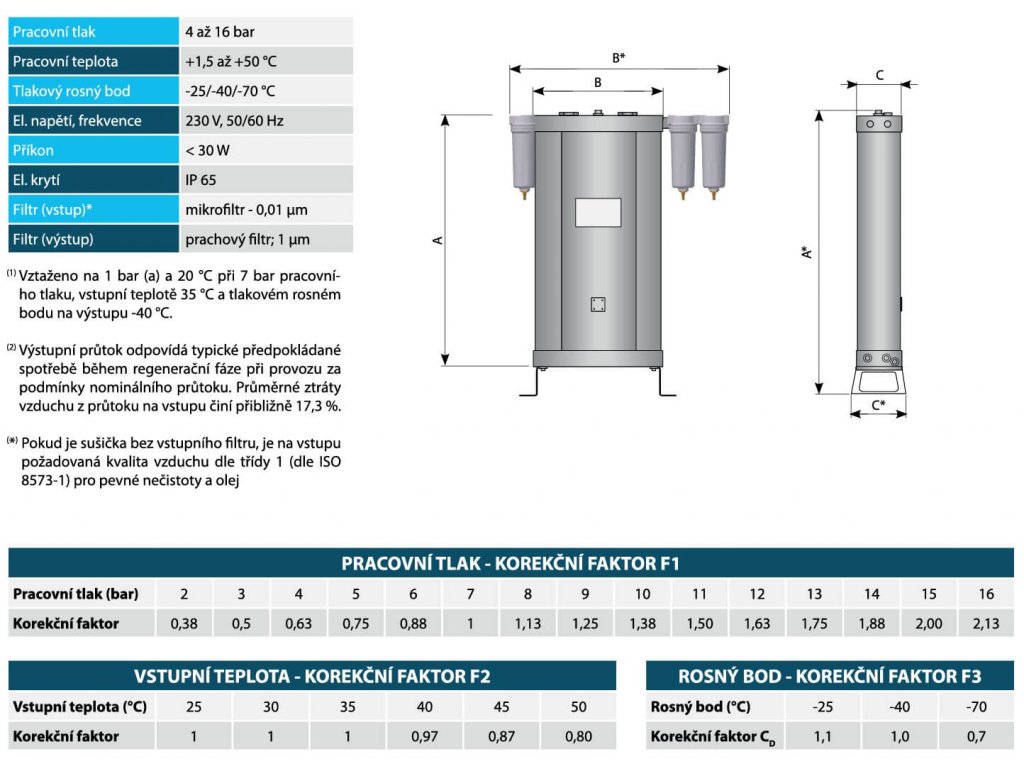

    Technická data adsorpční sušičky

    Fyzikální teorie Adsorpční sušičky Řídící jednotka

    Additional parameters

    Category: Compressed Air Moisture Removal Air Dryers
    Pressure: 16 bar
    Connecting: 3/4"
    Motor power: 30W
    Mains voltage: 230/50 V/Hz
    Dimensions: 582 x 170 x 1340 mm
    Flow: 1,250 l/min
    Service interval: Každé 2 roky
    Equipment:: Control unit LED display, Filtration
    Pressure dew point: -70°C, -40 °C, -25 °C
    Dryer type: Adsorption dryer
