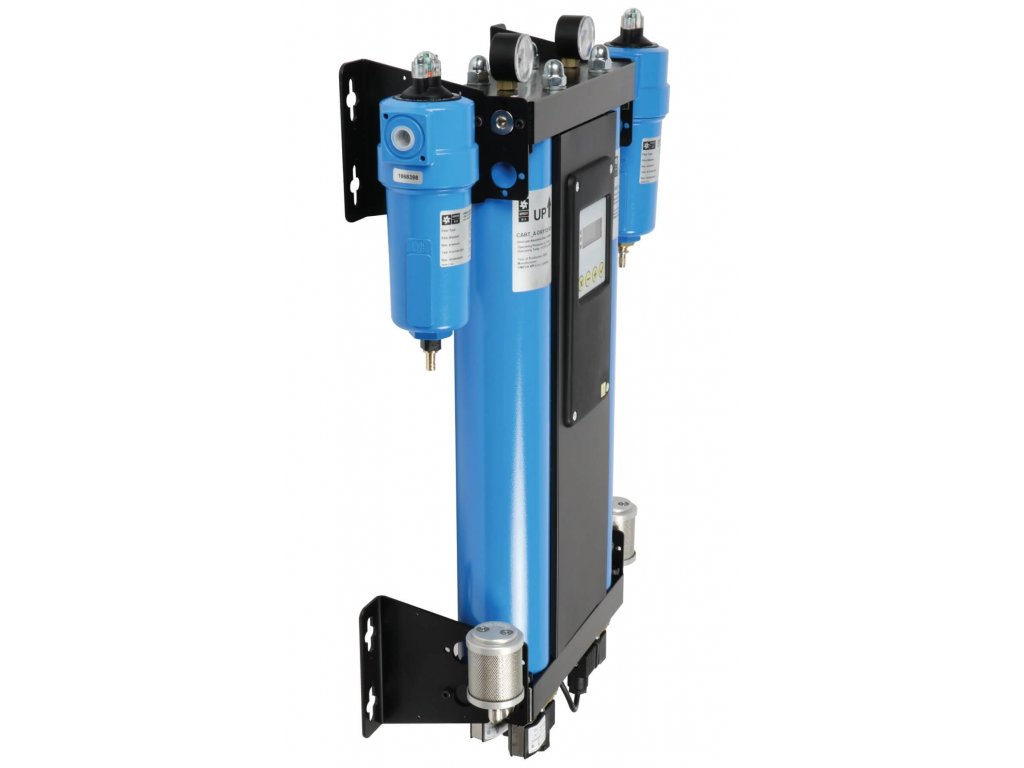

    Adsorption air dryer ADRY-105

    Code: ADRY-105
    Tip
    Not rated
    Brand: OMEGA AIR
    FREEFREE 101 376 Kč –2 %
    Adsorption air dryer ADRY-105
    101 376 Kč –2 % 99 349 Kč / pcs 82 107 Kč excl. VAT
    Stock (1 pcs)
    Delivery to:
    30.12.2024

    The ADRY-105 Series Adsorption Dryer was designed for continuous separation of water vapor from compressed air at flow rates up to 1,750 l/min. Reduces the pressure dew point down to -40°C. It consists of an upper and lower control block, a control unit with LED display and two alternating columns filled with adsorption material. Adsorption at pressures of up to 16 bar occurs in the first column, while the second column regenerates using a portion of the already dried air, which is purged and vented to the surroundings. This task consumes about 20% of the machine's power.

    Detailed information

    Related products

    aaf t
    Tip
    5 170 Kč –2 %
    AAFM pre-filter - 3/4" - 2,000 l/min
    up to 14 days
    4 187 Kč excl. VAT
    5 066 Kč

    AAFM pre-filter in 3/4" design for removal of fine impurities up to 0.1 um from compressed air according to ISO 8573-1 class 2. Body with easily removable container and designed...

    Code: AAFM-120
    BDRY filtry omega AIR susicka vzduchu kompresor kit servis removebg
    Original parts
    FREEFREE 6 863 Kč –2 %
    Service KIT after a year for adsorption dryer ADRY-105-1R
    Stock (1 pcs)
    5 558 Kč excl. VAT
    6 725 Kč

    After one year of operation, the ADRY-105 Series Omega Air Adsorption Dryer Service KIT includes a replacement microfilter cartridge, dust filter and replacement silencers for...

    Code: ADRY-105-1R
    A DRY service kits 2 year (1)
    Original parts
    FREEFREE 18 846 Kč –2 %
    Service KIT 2 years for adsorption dryer ADRY-105-2R
    Stock (1 pcs)
    15 264 Kč excl. VAT
    18 469 Kč

    Service KIT 2 years of operation of the adsorption dryer Omega Air series ADRY-105 includes a replacement filter cartridge ;microfilter, dust filter and replacement silencer,...

    Code: ADRY-105-2R
    A DRY service kits 4 year (1)
    Original parts
    FREEFREE 53 222 Kč –2 %
    Service KIT 4 years for adsorption dryer ADRY-105-4R
    up to 14 days
    43 105 Kč excl. VAT
    52 157 Kč

    Service KIT after 4 years of operation Omega Air adsorption dryer ADRY-105 series includes replacement filter cartridges, silencers, check valve, gaskets, valve kit, adsorbent...

    Code: ADRY-105-4R
    ADRY OS220 rosny bod mereni adry susicka vzduchu omega air tlak kompresor 2 (1)
    Original parts
    FREEFREE 46 709 Kč –2 %
    Dew point sensor - ADRY-OSCB
    Stock (1 pcs)
    37 831 Kč excl. VAT
    45 775 Kč

    Dew point sensor including cable - for air saving regeneration - ADRY-OS. A-DRY dryers can operate in two operating modes depending on the settings of the control unit. Fixed...

    Code: ADRY-OSCB
    ADRY OS MC rosny bod mereni adry susicka vzduchu omega air tlak kompresor 2 (1)
    Original parts
    FREEFREE 10 773 Kč –2 %
    Measuring chamber sensor dewy point - ADRY-MK
    Stock (3 pcs)
    8 726 Kč excl. VAT
    10 558 Kč

    Measuring chamber for dew point sensor - for regeneration air saving - ADRY-MK. A-DRY dryers can operate in two operating modes depending on the settings of the control unit....

    Code: ADRY-MK
    ADRY ADC22 rosny bod mereni adry susicka vzduchu omega air tlak kompresor 2 (1) (1)
    Original parts
    FREEFREE 31 051 Kč –2 %
    Control unit Siemens ADC 2.2
    up to 14 days
    25 149 Kč excl. VAT
    30 430 Kč

    A-DRY adsorption dryers are equipped with the new generation ADC 4.0 electronic control unit. This version of the controller is easy to use and offers many innovative features....

    Code: ADRY-ADC22
    Show all related products Previous product Next product

    Product detailed description

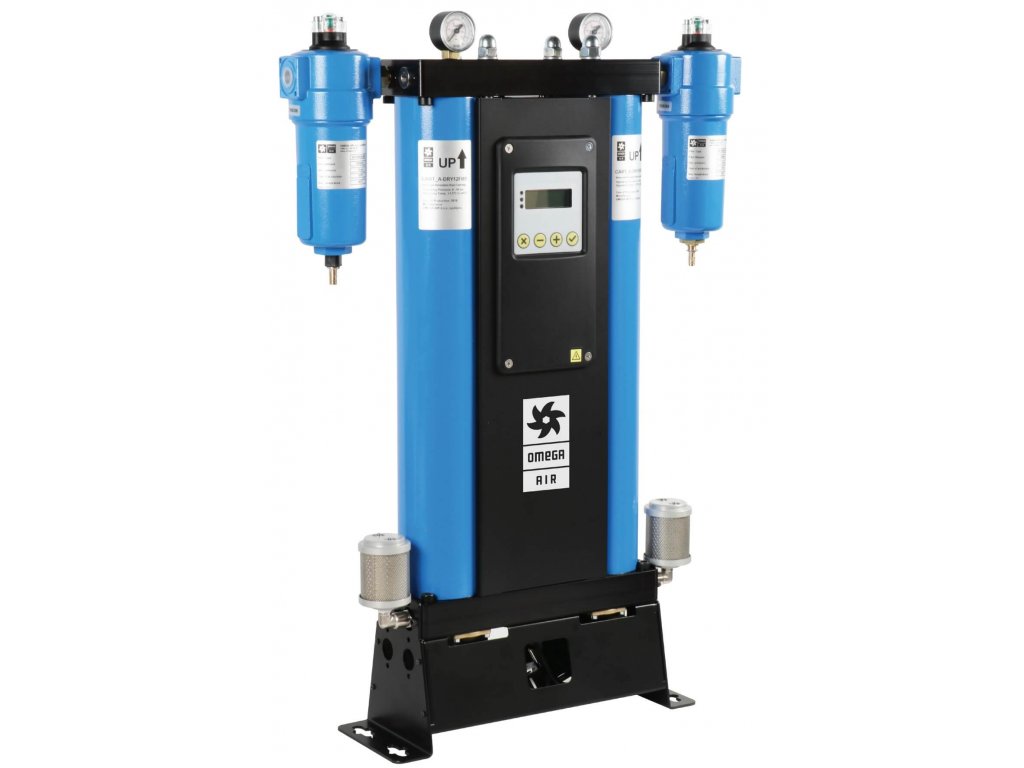

    ADRY-105 Adsorption Compressed Air Dryer

    • small adsorption dryers for perfect moisture removal from compressed air with tower regeneration by purging
    • standard version with dew point -40 °C; on request with dew point -25 °C or -70 °C
    • operating temperature +1.5 °C to +50 °C; electrical voltage 230 V 50/60 Hz, electrical protection IP65
    • modular concept allows extremely fast maintenance and reliable operation
    • improved adsorption capacity due to the use of two layers of adsorbent - molecular sieve and silica gel
    • aDC 4.0 electronic control unit with dew point sensor connection and webserver access
    • 4 control valves with diaphragms made of highly durable NBR reinforced PA, pressure gauges on the top side for column pressure reading
    • included in the scope of delivery inlet microfilter AFS 0,01 µm and outlet dust filter AFR 1 µm
    • designed for all applications with high minimum humidity requirements in compressed air
    • important note: A-DRY dryers consume approximately 15-20% of compressed air for regeneration of the production columns

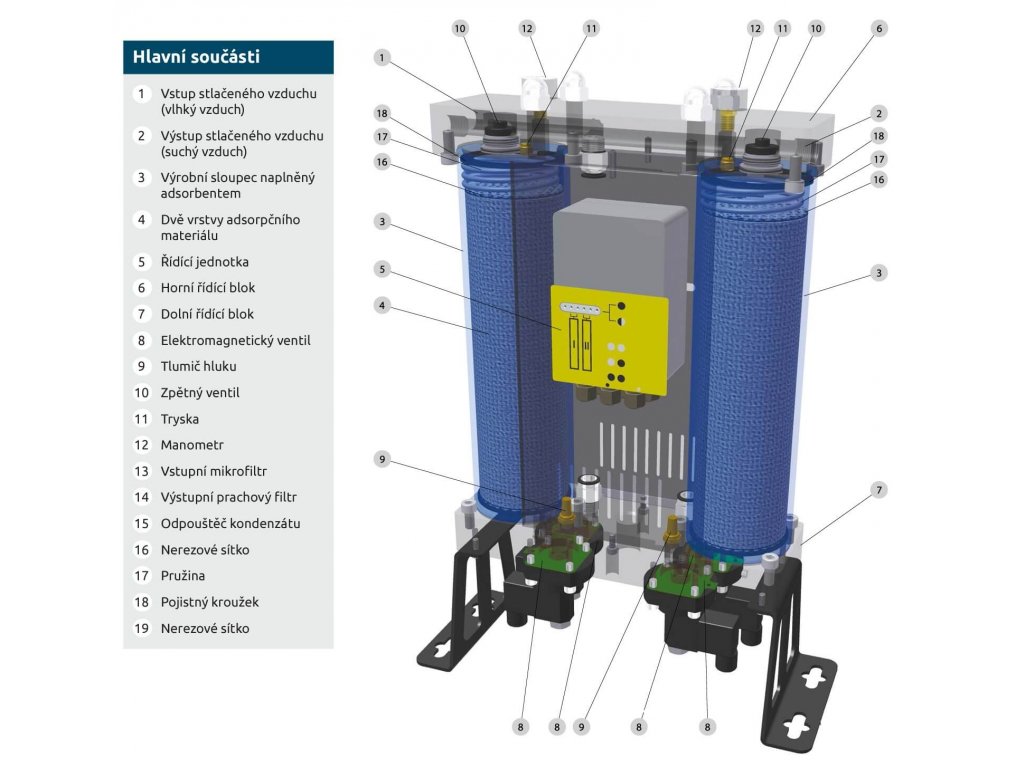

    Použité komponenty adsorpční sušičky - série A-DRY

    Energetické úspory Adsorpční sušičky Desetiminutový Sušičky A-DRY je možné volitelně vybavit o vzdálenou provozní cyklus

    Snadná údržba Adsorpční sušičky

    Technická data adsorpční sušičky

    Fyzikální teorie Adsorpční sušičky Řídící jednotka

    Additional parameters

    Category: OMEGA ADRY Adsorption Compressed Air Dryers
    Pressure: 16 bar
    Connecting: 3/4"
    Motor power: 30W
    Mains voltage: 230/50 V/Hz

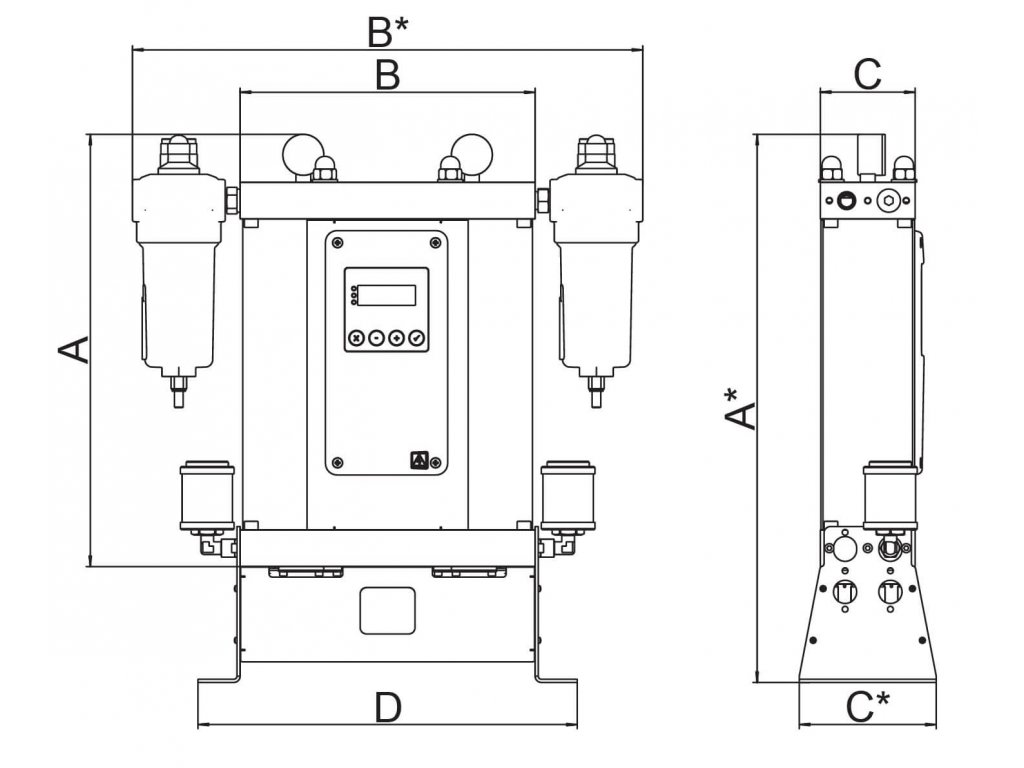

    Dimensions: 582 x 170 1808 mm
    Flow: 1,750 l/min
    Service interval: Každé 2 roky
    Equipment:: Control unit LED display, Filtration
    Pressure dew point: -70°C, -40 °C, -25 °C
    Dryer type: Adsorption dryer
