Adsorption filter insert AFA2-85V
Code: AFA2-85VRelated products

Complete filter system for breathable air B-AIR PLUS. The system includes a microfilter to remove impurities down to 0.01 um, an activated carbon filter to eliminate oil...
Product detailed description

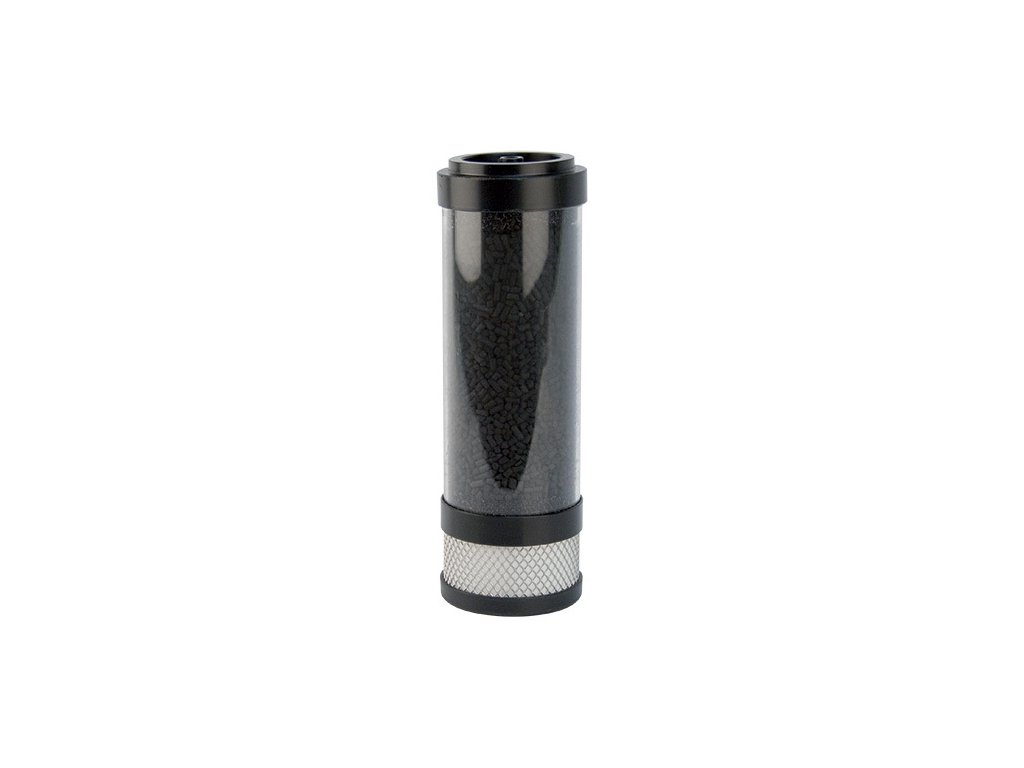

Filter insert AF, A2 - adsorption - AFA2-85V
- series of filters designed for effective removal of solid impurities, oil, water, hydrocarbons, odours and vapours from compressed air
- aluminium body, powder-coated blue; threaded connection with internal pipe threads
- operating temperature range +1.5 to +65 °C, maximum working pressure 16 bar
- filter cartridge replacement intervals - once a year or when the pressure gradient reaches 350 mbar; from ;grade A every 6 months
- scope of delivery - filter body, filter cartridge, float skimmer AOK16B
- reference flow conditions: temperature +20 °C, working pressure 7 bar; for other conditions a correction factor must be used for calculation - please contact us
Additional parameters
Category: | Adsorption filter cartridges B-AIR |
---|---|
Version: | B-AIR air filters |
Pressure: | 16 bar |
Connecting: | 1 1/2" |
Filtration: | Adsorption |
Filter insert: | AFA2-85V |
Working temperature: | +1.5 / +65°C |
Flow: | 8,500 l/min |
