    Double-acting stainless steel cylinders AMX 200 mm

    Code: 200/25AMX 200/50AMX 200/80AMX 200/100AMX 200/125AMX 200/160AMX 200/200AMX 200/250AMX 200/300AMX 200/320AMX 200/400AMX 200/450AMX 200/500AMX 200/600AMX 200/700AMX 200/800AMX 200/900AMX 200/1000AMX Choose variant
    Not rated
    Brand: API
    149 368 Kč 152 058 Kč 155 286 Kč 157 438 Kč 160 128 Kč 163 893 Kč 168 196 Kč 173 575 Kč 178 954 Kč 181 105 Kč 189 712 Kč 195 091 Kč 200 470 Kč 211 229 Kč 221 987 Kč 232 746 Kč 239 757 Kč 250 350 Kč from 149 368 Kč –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –100 % –100 % up to –100 %

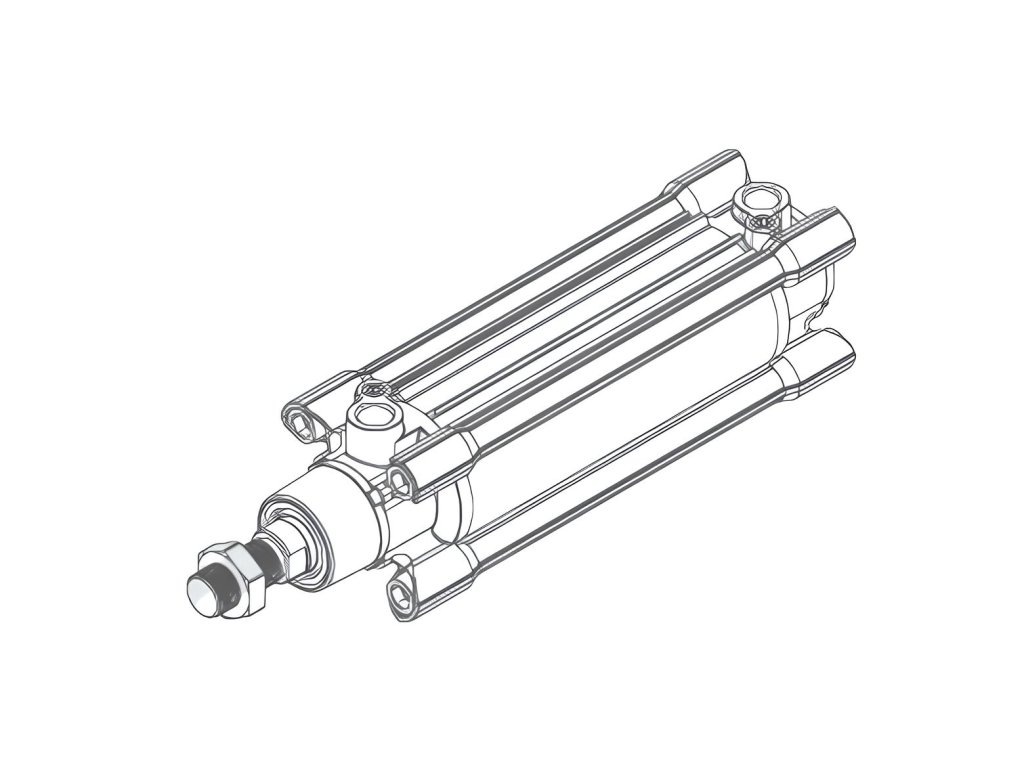

    amx valce automatizace vzduch tlak CYLINDERS API (1)
    149 368 Kč 152 058 Kč 155 286 Kč 157 438 Kč 160 128 Kč 163 893 Kč 168 196 Kč 173 575 Kč 178 954 Kč 181 105 Kč 189 712 Kč 195 091 Kč 200 470 Kč 211 229 Kč 221 987 Kč 232 746 Kč 239 757 Kč 250 350 Kč from 149 368 Kč –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –5 % –100 % –100 % up to –100 % 141 900 Kč / pcs 144 456 Kč / pcs 147 522 Kč / pcs 149 566 Kč / pcs 152 121 Kč / pcs 155 698 Kč / pcs 159 786 Kč / pcs 164 896 Kč / pcs 170 006 Kč / pcs 172 050 Kč / pcs 180 227 Kč / pcs 185 337 Kč / pcs 190 447 Kč / pcs 200 667 Kč / pcs 210 887 Kč / pcs 221 109 Kč / pcs 1 Kč / pcs 1 Kč / pcs from 1 Kč / pcs 117 273 Kč excl. VAT 119 385 Kč excl. VAT 121 919 Kč excl. VAT 123 608 Kč excl. VAT 125 720 Kč excl. VAT 128 676 Kč excl. VAT 132 055 Kč excl. VAT 136 278 Kč excl. VAT 140 501 Kč excl. VAT 142 190 Kč excl. VAT 148 948 Kč excl. VAT 153 171 Kč excl. VAT 157 394 Kč excl. VAT 165 840 Kč excl. VAT 174 287 Kč excl. VAT 182 735 Kč excl. VAT 1 Kč excl. VAT 1 Kč excl. VAT from 1 Kč excl. VAT
    up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
    Cylinder stroke
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 16.05.2025 Choose variant
    Delivery offer

    AMX double acting stainless steel pneumatic cylinders with 200 mm diameter with magnet. Compliant with ISO 15 552 dimensional standards. The lids are connected by stirrup rods. The rollers are equipped with variable damping in the end positions. Made entirely of AISI316L stainless steel.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    sada tesneni ama valce automatizace vzduch tlak CYLINDERS API (1)
    Original parts
    4 256 Kč –5 %
    AMX cylinder gasket set 200 mm
    up to 20 days
    3 341 Kč excl. VAT
    4 043 Kč

    Replacement set of AMX pneumatic cylinder seals with a diameter of 200 mm. The kit is only suitable for resealing the pneumatic cylinder.

    Code: 200/SG/AMX
    Position sensors ASV1C525
    Original parts
    797 Kč –5 %
    Position sensors ASV1C525
    Stock (6 pcs)
    626 Kč excl. VAT
    757 Kč

    Cylinder end position sensor with 2.5 m fixed cable connection. Reed relay sensing, for 5-240V AC and DC voltages. Red LED signaling.

    Code: 070946
    Sensor mounts AS103
    Original parts
    347 Kč –5 %
    Sensor mounts AS103
    up to 14 days
    272 Kč excl. VAT
    329 Kč

    Handles for position sensors for cylinders with pressed profile and for cylinders according to ISO 15 552 and UNITOP with diameter 80-100 mm.

    Code: 072910
    RFX kloubova hlavice cilinders api vzduch tlak valce pneumaticke
    Original parts
    15 002 Kč –5 %
    RFX joint heads - M36 x 2
    up to 14 days
    11 779 Kč excl. VAT
    14 252 Kč

    Articulated sockets for pneumatic cylinder on piston rod according to 8139 and DIN 648-K type RF for cylinders 160 - 200 mm with connection thread M36 x 2. Supplied in AISI 316...

    Code: 041581
    Pins type SECX AQIS 200 mm
    Original parts
    2 705 Kč –4 %
    Pins type SECX AQIS 200 mm
    up to 14 days
    2 124 Kč excl. VAT
    2 570 Kč

    SECX AQIS pins for cylinders with a diameter of 200 mm. Designed for cylinders according to ISO 15 552 dimensional standard. Made of AISI 316 stainless steel, for applications...

    Code: 040820
    Show all related products Previous product Next product

    Product detailed description

    Double acting pneumatic stainless steel cylinders with magnet - 200/...AMX

    • diameter 200 mm
    • strokes 10 - 2500 mm
    • control air connection via 3/4" thread
    • pressure 0.5 - 10 bar
    • made of stainless steel AISI316L

    Dvojčinný pneumatický nerezový válec s magnetem AMX

    Additional parameters

    Category: Stainless steel square pneumatic cylinders AMX double acting design
    Version: Double acting cylinders
    Pressure: 10 bars
    Connecting: 3/4"
    Damping length: 48 mm
    Magnet: with a magnet
    Piston rod material: Stainless steel AISI316L
    Profile material: Stainless steel AISI316L
    Lid material: Stainless steel AISI316L
    Average: 200 mm
    Temperature: -20/+80°C
    Seals: NBR/PU
    Cylinder thrust: N17,000
    Cylinder type: Profile
    Stroke selection: 10 - 2500 mm
    Connecting rod thread: M36 x 2
    Minimální tlak: 0,5 bar
